Headline

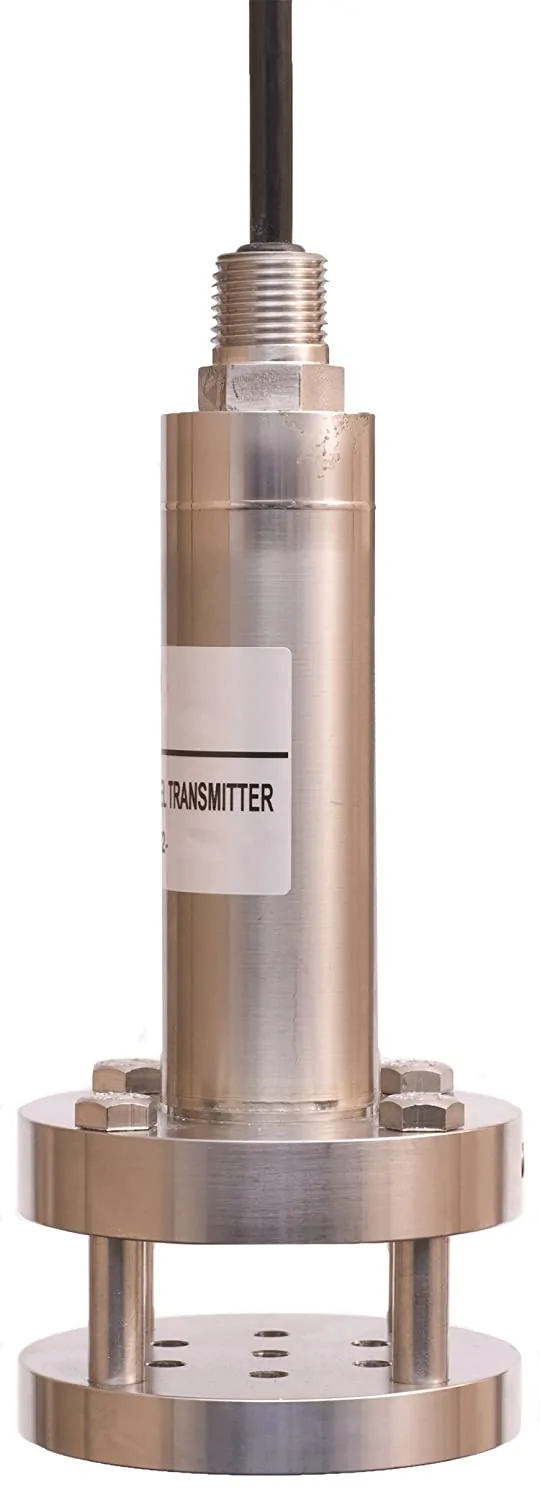

DeltaSpan LD32 Submersible Pressure Level Transmitter
The general purpose submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select this liquid level sensor for dirty, coating or slurry type liquids. Application examples include pump lift stations and waste sumps.
Features & Benefits
Key Features
Design & Construction
- Rugged clog resistant diaphragm with heavy duty protection shield
- Strong cable design with maintenance free breather tube and vent filter
- Corrosion resistant 316 SS body and shield
- Polyurethane or ETFE cable options
Protection Systems
- Temperature compensation
- Lightning protection
- Surge protection for reliability
Benefits
Installation & Operation
- Simple installation via suspended cable
- Connects directly to PLC, SCADA or display
- Fixed span does not require any calibration

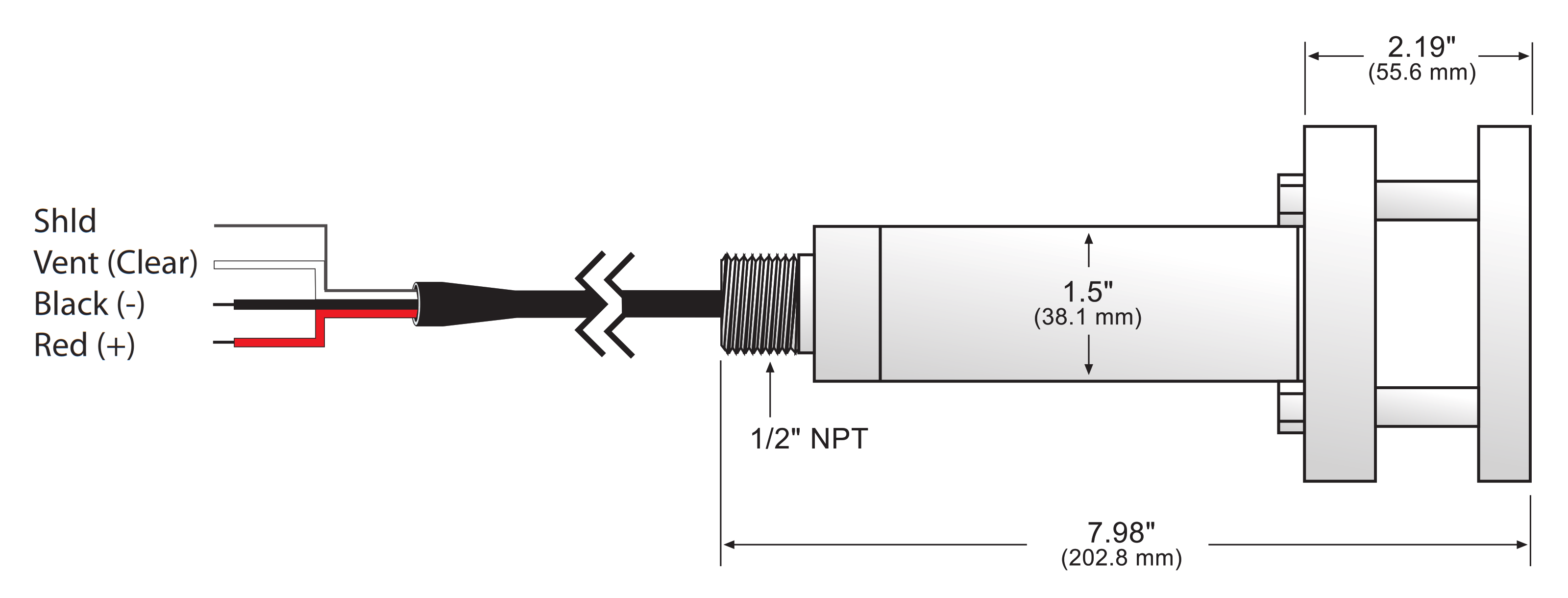

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LD32S101 | LD32-S101 | Polyurethane 40' (12.2m) Cable - 11.55' wc (5 psi) | $800.00 | |
| FLI-LD32S111 | LD32-S111 | Polyurethane 40' (12.2m) Cable - 23.10' wc (10 psi) | $850.00 | |
| FLI-LD32S131 | LD32-S131 | Polyurethane 60' (18.3m) Cable - 46.20' wc (20 psi) | $950.00 | |
| FLI-LD32S201 | LD32-S201 | ETFE 40' (12.2m) Cable - 11.55' wc (5 psi) | $1,659.00 |
