Headline
DeltaSpan LD31 Submersible Pressure Level Transmitter
The general purpose submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select this liquid level sensor for relatively clean water, light weight oil or diluted chemical. Application examples include reservoirs and ponds.
Features & Benefits
Key Features
- Strong cable design
- Maintenance free breather tube
- Vent filter
- Corrosion resistant construction
- 316 SS transducer
- Polyurethane or ETFE cable options
- Advanced protection systems
- Temperature compensation
- Lightning protection
- Surge protection
Key Benefits
- Application versatility
- Ideal for foam environments
- Suitable for vapor applications
- Simple integration
- Direct PLC/SCADA connectivity
- Direct display connectivity
- Easy maintenance
- Fixed span design
- No calibration required
- Reliable performance

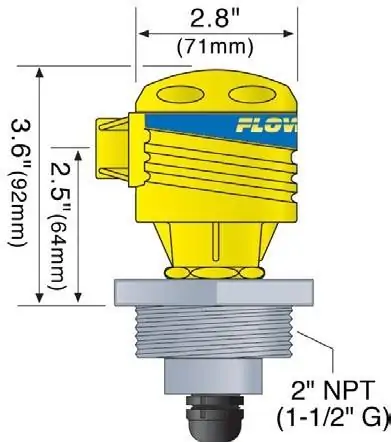

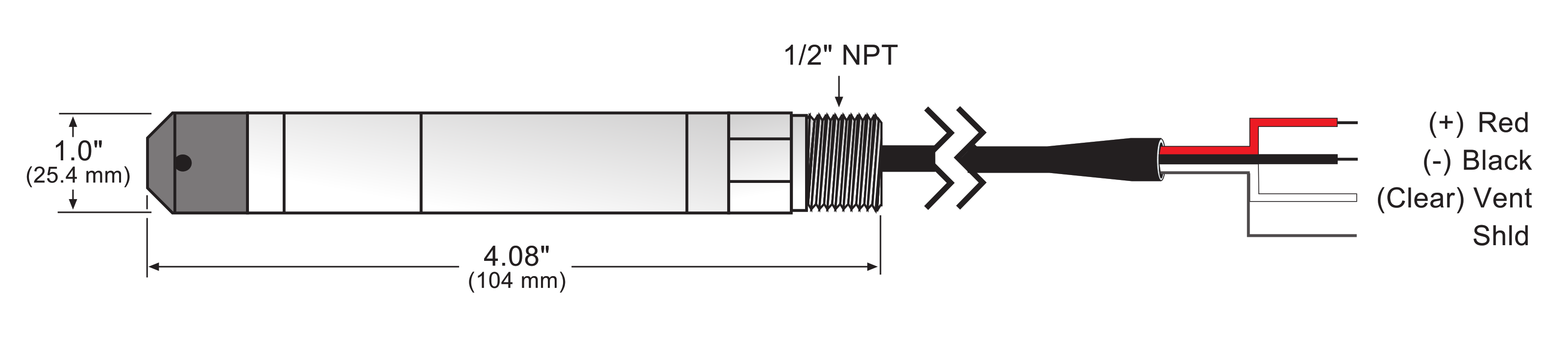

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LD31S101 | LD31-S101 | Polyurethane 40' (12.2m) Cable - 11.55' wc (5 psi) | $700.00 | |
| FLI-LD31S111 | LD31-S111 | Polyurethane 40' (12.2m) Cable - 23.10' wc (10 psi) | $750.00 | |
| FLI-LD31S121 | LD31-S121 | Polyurethane 60' (18.3m) Cable - 34.65' wc (15 psi) | $800.00 | |
| FLI-LD31S131 | LD31-S131 | Polyurethane 60' (18.3m) Cable - 46.20' wc (20 psi) | $1,040.00 | |
| FLI-LD31S211 | LD31-S211 | ETFE 40' (12.2m) Cable - 23.10' wc (10 psi) | $1,313.00 |
