DataPoint LC52 Level Sensor Controller

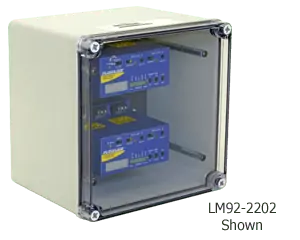

The general purpose AC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter, two programmable relays and an isolated 4-20 mA repeater. Relay one is configurable on a single set point. Relay two can be configured on a single set point or latched on two set points for automatic fill or empty control in simplex mode. Select this DIN rail mount controller for use with general purpose two or three-wire level sensors. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.
Features & Benefits
Key Features
Display & Interface
- Bright LED display shows level in custom engineering units
- Bar graph display indicates percentage of measured span
- Easy push button configuration of span, display and relay set points
Control & Safety
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Invert switch changes relay state from NO to NC without rewiring
- Lock-out feature prevents unauthorized setting changes
Installation & Housing

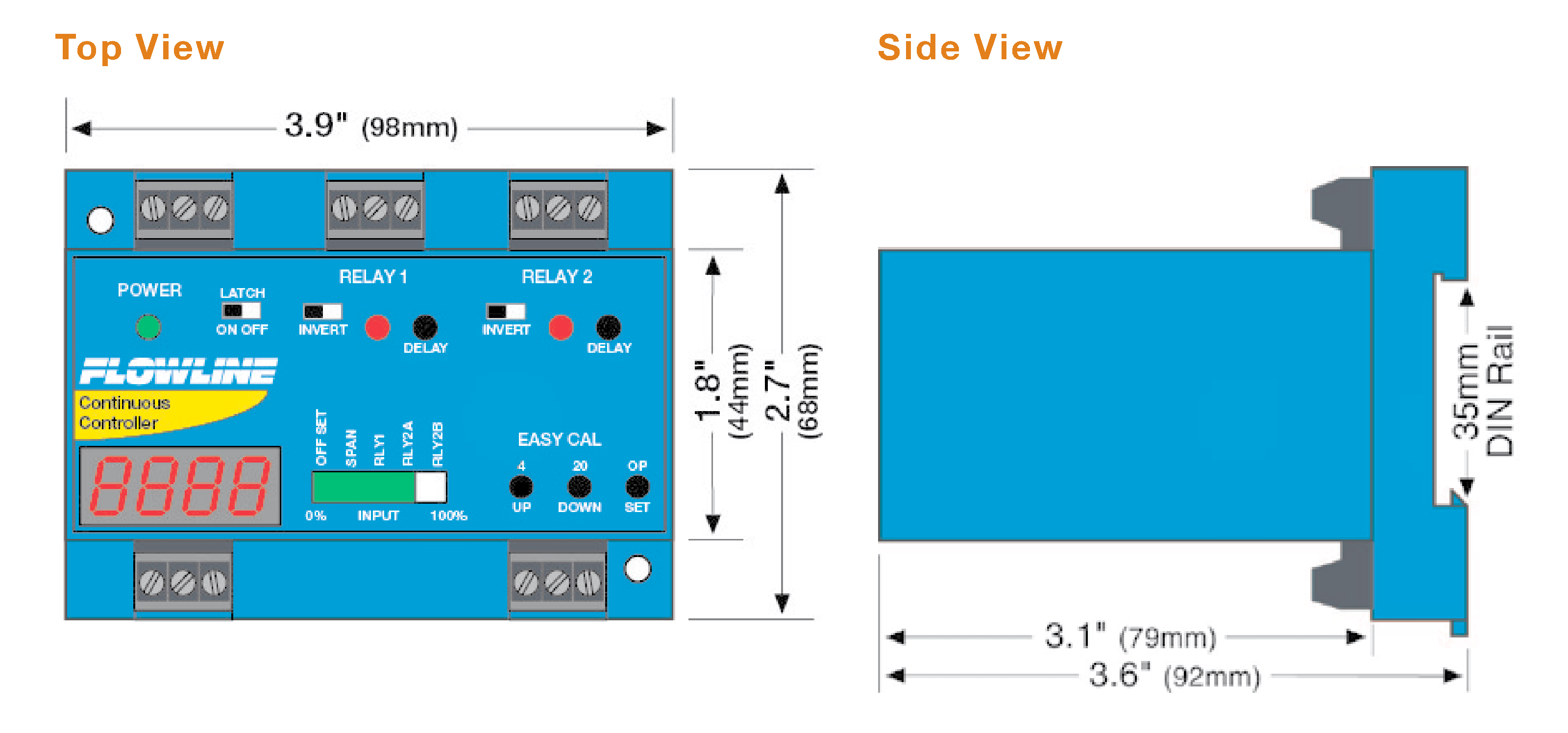

- 35 mm DIN rail mount PP enclosure with removable terminal strips

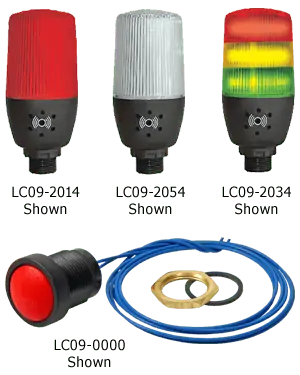

- Available with NEMA boxes and tank alarm accessories
- DIN rail or screw mount design for easy installation
Benefits
- Complete solution for level sensor control requirements
- Controls pumps, valves, horns and alarm indicators
- Flexible mounting options for various installations
- Secure operation with tamper prevention features
