Switch-Pro LC0X Compact Level Switch Junction Box

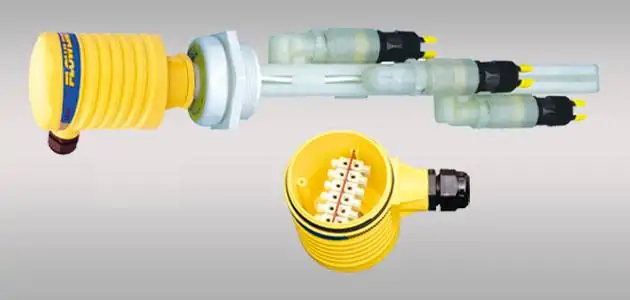

The general purpose compact junction box mounts directly on a level sensor or fitting assembly to provide convenient wiring and conduit termination. Offered in two sizes, select the LC05 for multi-point switch installations on Smart Trak, and the LC06 for single-point switch installations on Switch-Pak or an individual level sensor. A removable terminal strip with slot mounts is provided for termination.
Features & Benefits
Features:
- Rugged PP enclosure with removable cap rated NEMA 4X
- Swivel base enables enclosure rotation for conduit alignment

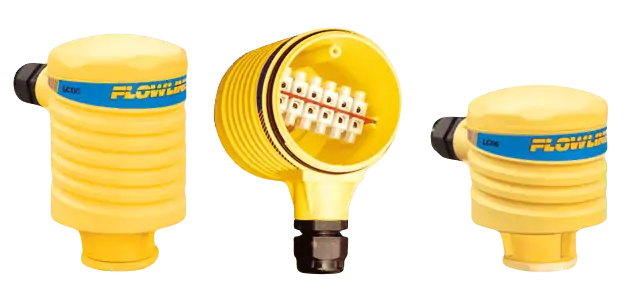

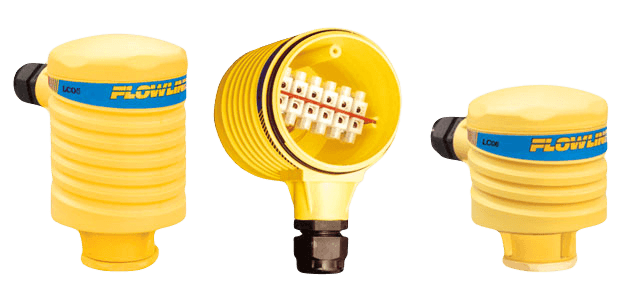

- Offered in two sizes for single-point and multi-point installations
- Removable socket terminal strip for convenient wiring termination
- Compatible with Smart Trak and Switch-Pak installation fittings
Additional Notes
Specifications:
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.: PP, UL94VO
- Terminal type: Socket with screws
- Terminal poles: LC05: 12-pole, LC06: 6-pole
- Conduit entrance: 1/2” NPT
- Process mount: 3/4” NPT (3/4” Rp)
- Mount swivel: 300º swivel base
- Ambient temp.: F: -40º to 158º, C: -40º to 70º
- Classification: General purpose
- Compliance: CE
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|

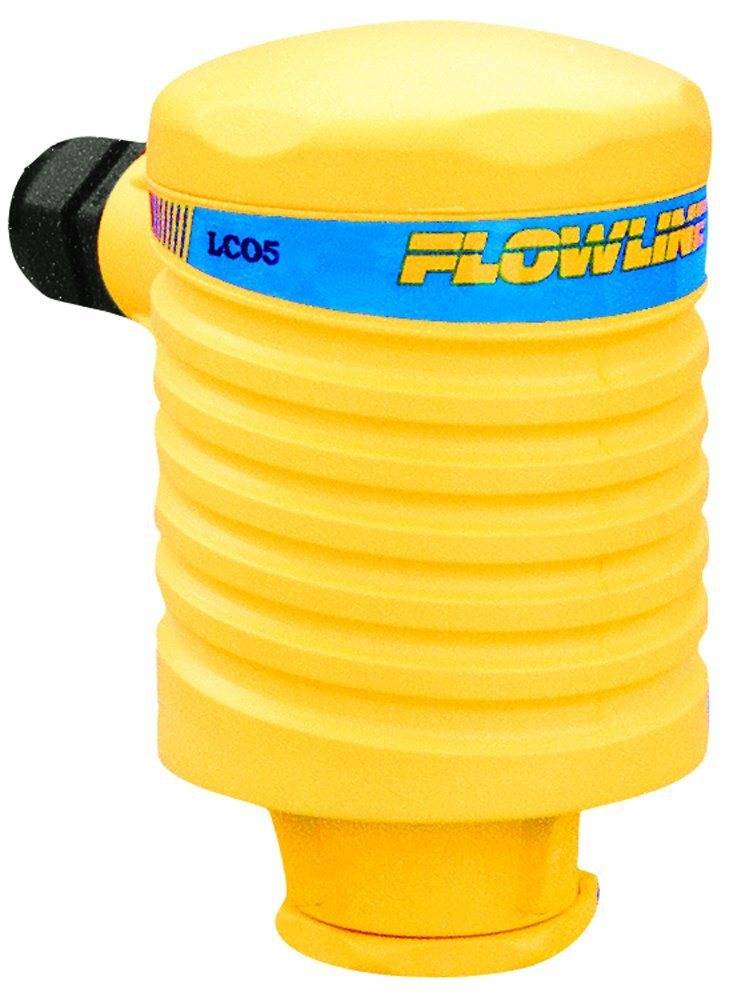

| FLI-LC051001 | LC05-1001 | Junction Box - 1-4 Sensor - Term-Strip - 3/4 inch NPT - PP | $100.00 | |
| FLI-LC051051 | LC05-1051 | Junction Box - 1-4 Sensor - Term-Strip - 3/4 inch Rp - PP | $110.00 | |
| FLI-LC061001 | LC06-1001 | Junction Box - 1-2 Sensor - Term-Strip - 3/4 inch NPT - PP | $85.00 | |
| FLI-LC061051 | LC06-1051 | Junction Box - 1-2 Sensor - Term-Strip - 3/4 inch Rp - PP | $95.00 |
