FT10-5325 | PVDF - Short - 3/4 inch G

Thermo-Flo XX10 Liquid & Gas Flow Switch

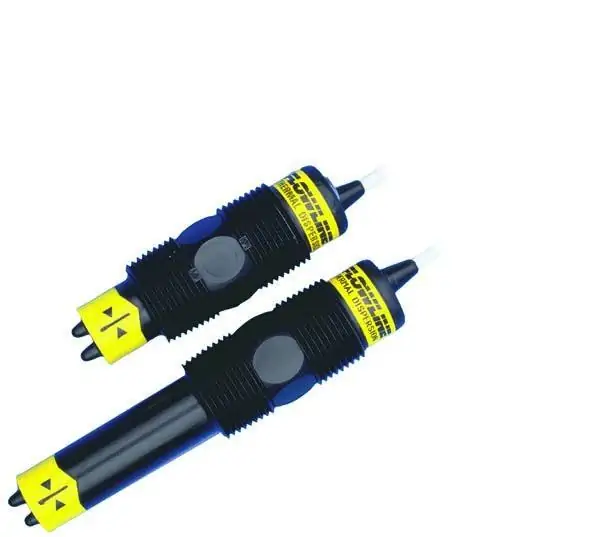

Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. Available in Polypropylene-Ryton and PVDF, the short flow sensor is used in pipe or ducting from 1/2" to 1 1/2", and the long flow sensor is used in 2" and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.

Product Features

Sensor & Monitoring

• Rugged PP-Ryton or PVDF sensor for corrosive liquids and gases
• Adjustable set point with LED for flow or no-flow status indication
• Solid state sensor is not damaged by over-ranging flow velocities

Electrical Specifications

• 60VA relay selectable NO or NC via power supply wiring polarity

Applications & Benefits

• Ideal for monitoring chemical feed pumps
• Use to monitor flow/no-flow conditions
• Add FT50-_000 for metering pump/tubing installations
