Headline

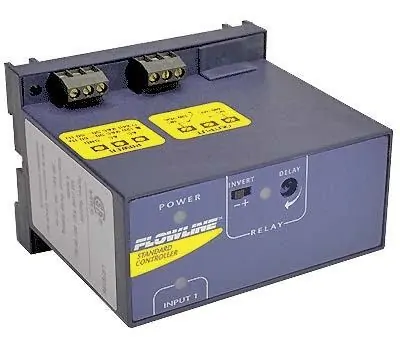

Thermo-Flo LC8X Remote Flow Controller
The general purpose flow controller is offered in two configurations for low-flow pump and process protection. The LC80 accepts one flow sensor input and provides one 10A relay for low flow control. The LC82 accepts two flow sensor inputs and provides two 10A relays for dual low flow control. Package this flow controller with our liquid or gas flow switch sensors. For field mount installation, add a single or dual controller NEMA box.
Features & Benefits
Key Features
- Fail-safe relay control
- 0-60 second delay for pumps/valves
- Invert switch for NO/NC state changes without rewiring
- Easy monitoring and setup
- LED status indicators for sensor
- Power and relay status display
- Industrial mounting options
- 35 mm DIN rail mount
- PP enclosure with removable terminals
Application Benefits
- Versatile control capabilities
- Pumps and valves
- Horns and alarm indicators
- Flexible installation
- General purpose configuration
- DIN rail or screw mount options
- Panel or NEMA box compatible
- Complete flow switch control solution

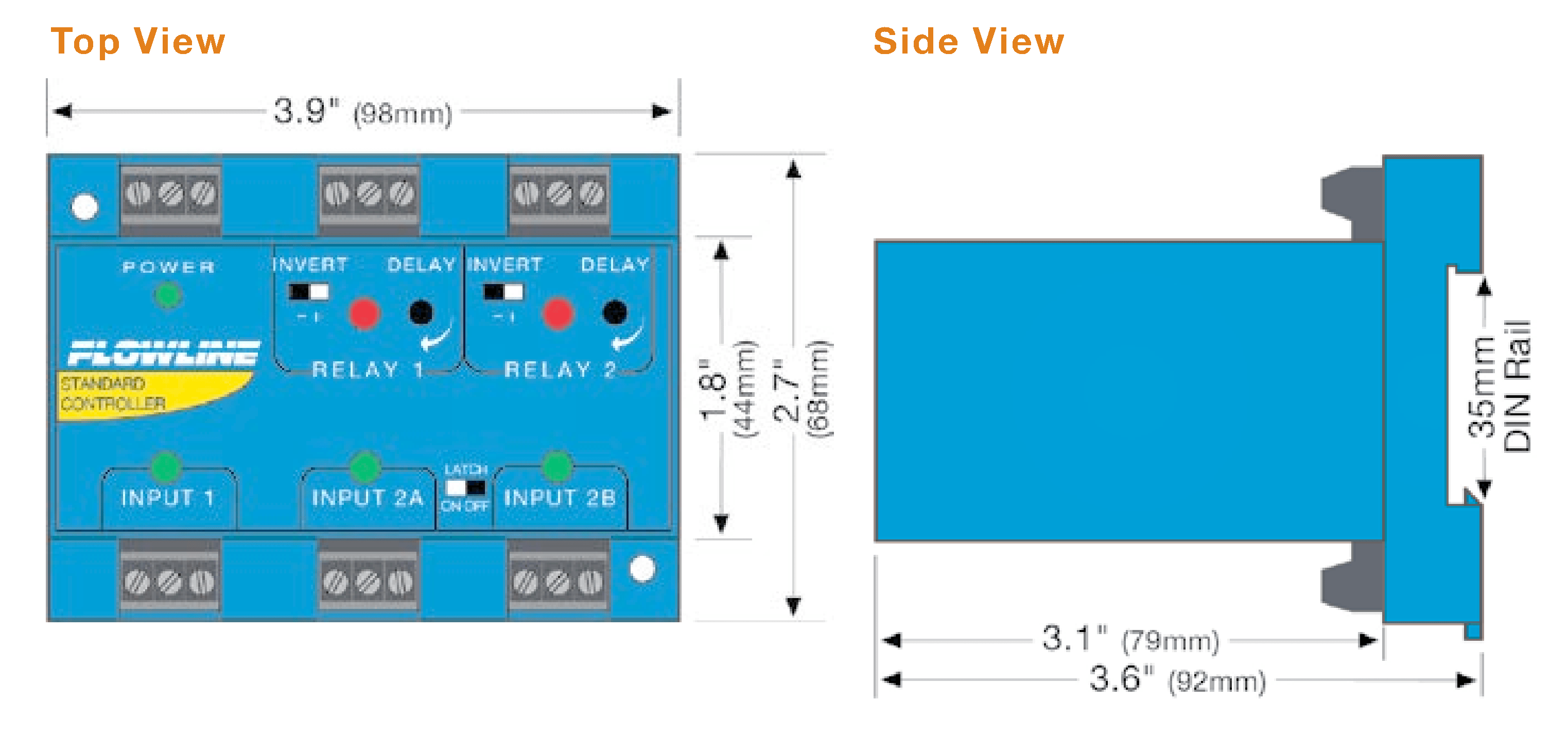

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LC821001 | LC82-1001 | 2 Relays - 2 Sensor | $445.00 |
