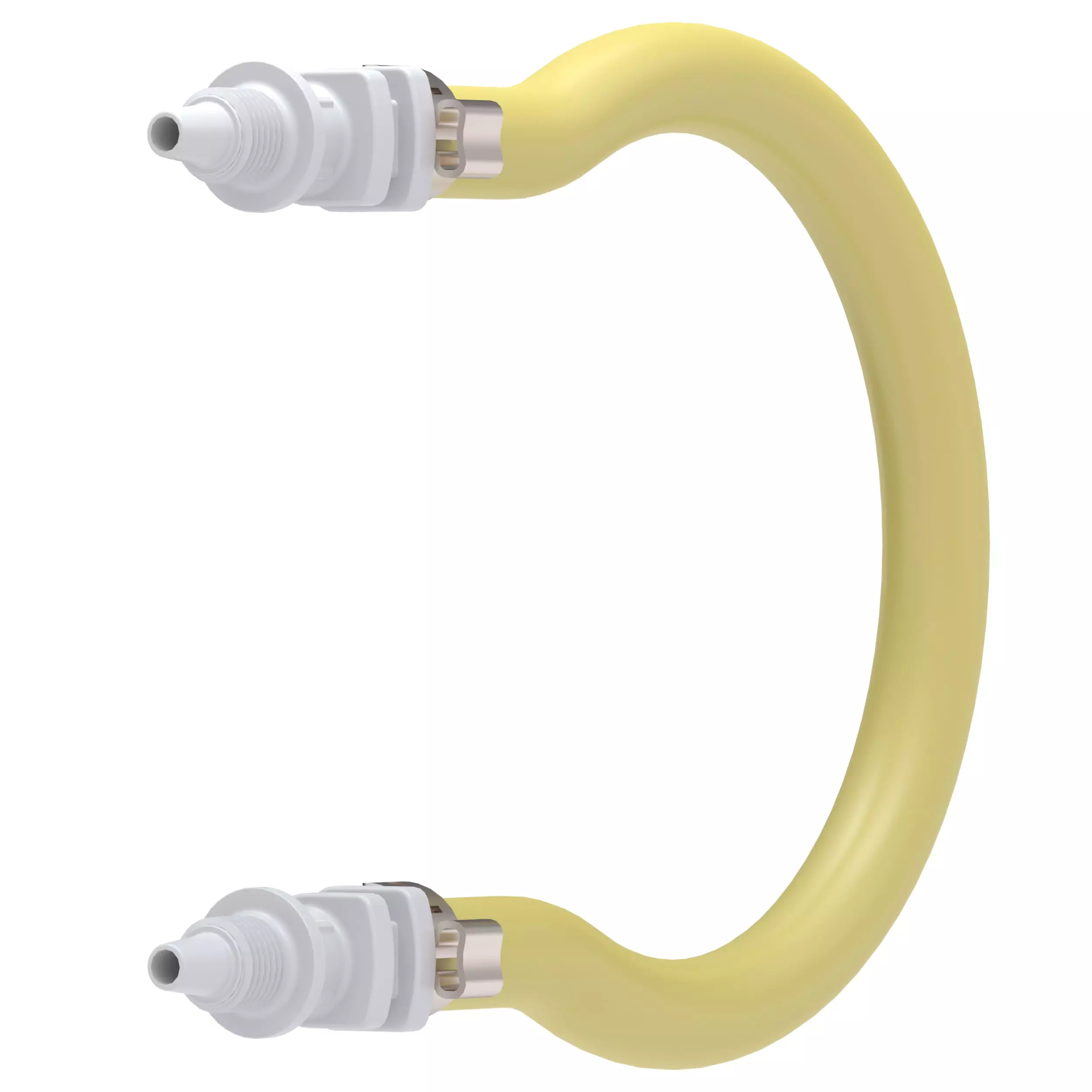

A2-SGE-T | Tube Assembly - A2 - SGE - 3/8" Tube Compression - Flex-A-Thane

Pictures may not be actual SKU

A2-SGE-T | Tube Assembly - A2 - SGE - 3/8" Tube Compression - Flex-A-Thane

Name: A2-SGE-T | Tube Assembly - A2 - SGE - 3/8" Tube Compression - Flex-A-Thane
Brand: Blue-White
SKU: BWI-A2SGET
Price: 96 USD
Availability: InStock

BWI | Blue-White

TUBES | Tubes for Blue-White Peristaltic Pumps

A2 Tubes | Tube Assemblies for Blue-White A2/M2 Series

BWI-A2SGET

Description

Blue-White's A2-SGE-T A-Series Peristaltic Pump Part TUBE ASSY A2/M2 SGE .37T FLEX-A-THANE Ref: (71000-972)

Key Specs

Feed Max

4 GPH

Pressure Max

65 psi

Base Model

Collection

TUBES

Series

Connections

Wetted Materials

Tube Material

O-Ring Material

In Stock

Ships from PA - FL - OH - TX - OR

Typically ships within [ 0 to 2 ] days

24/7 Sales & Support 484-544-0506

$96.00 Configured Price

Quantity:

− +

Tech Specs
Materials
Support Docs
Spare Parts
SKU List

Performance

Feed Max

4 GPH

Feed Min

0.02 GPH

Motor Speed Max

130 RPM

Pressure Max

65 psi

Suction Lift

30 ft

Suction Lift

9.14 m

Chemical Compatibility

Construction Notes

This polyurethane material can be used with a variety of chemicals including Oil and Water based Polymers, Sodium Hypochlorite, Alum, Ferric Chloride, fuels and lubricants and many others. Available in a medium stiffness for applications up to 65 psi.

Exploded view
