Headline

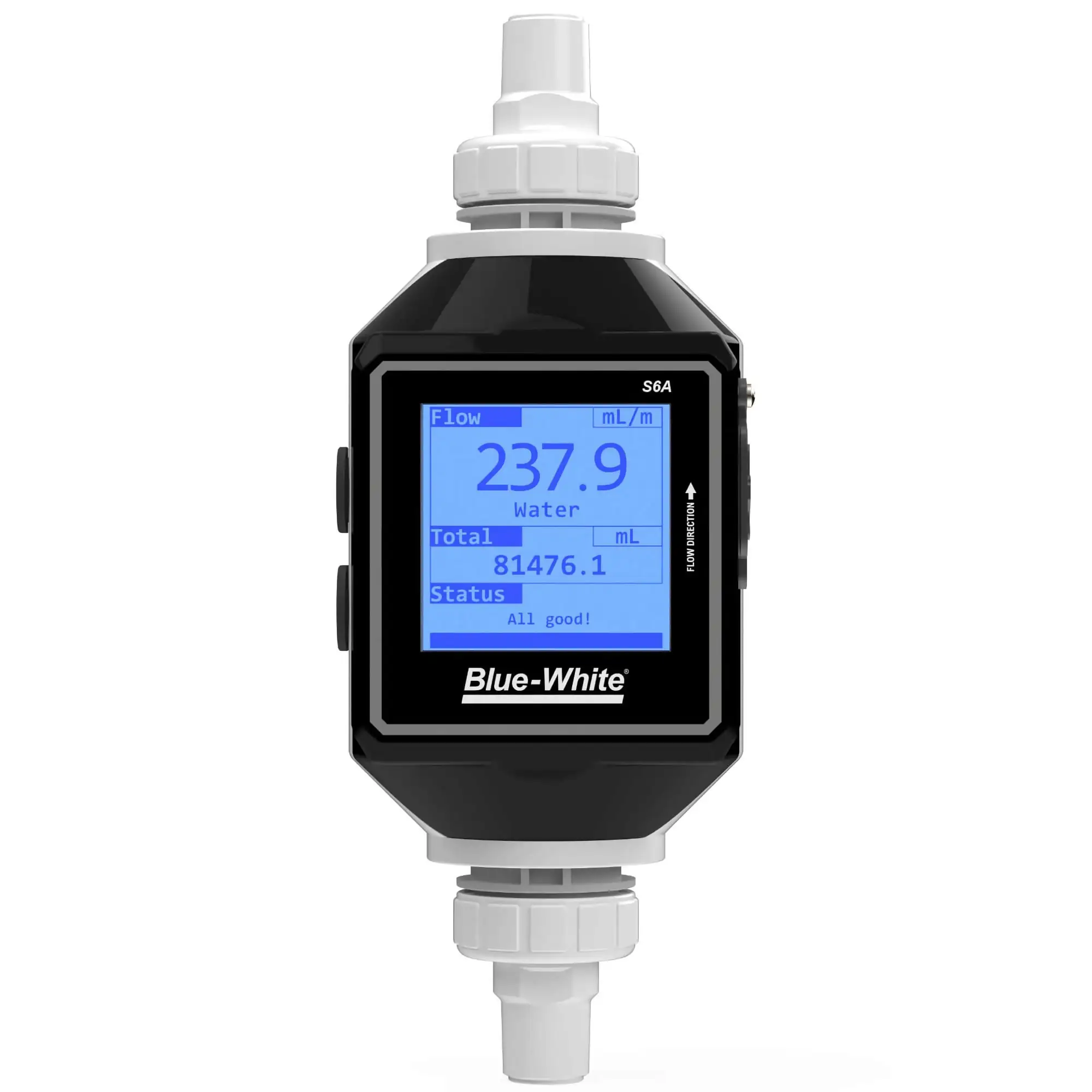

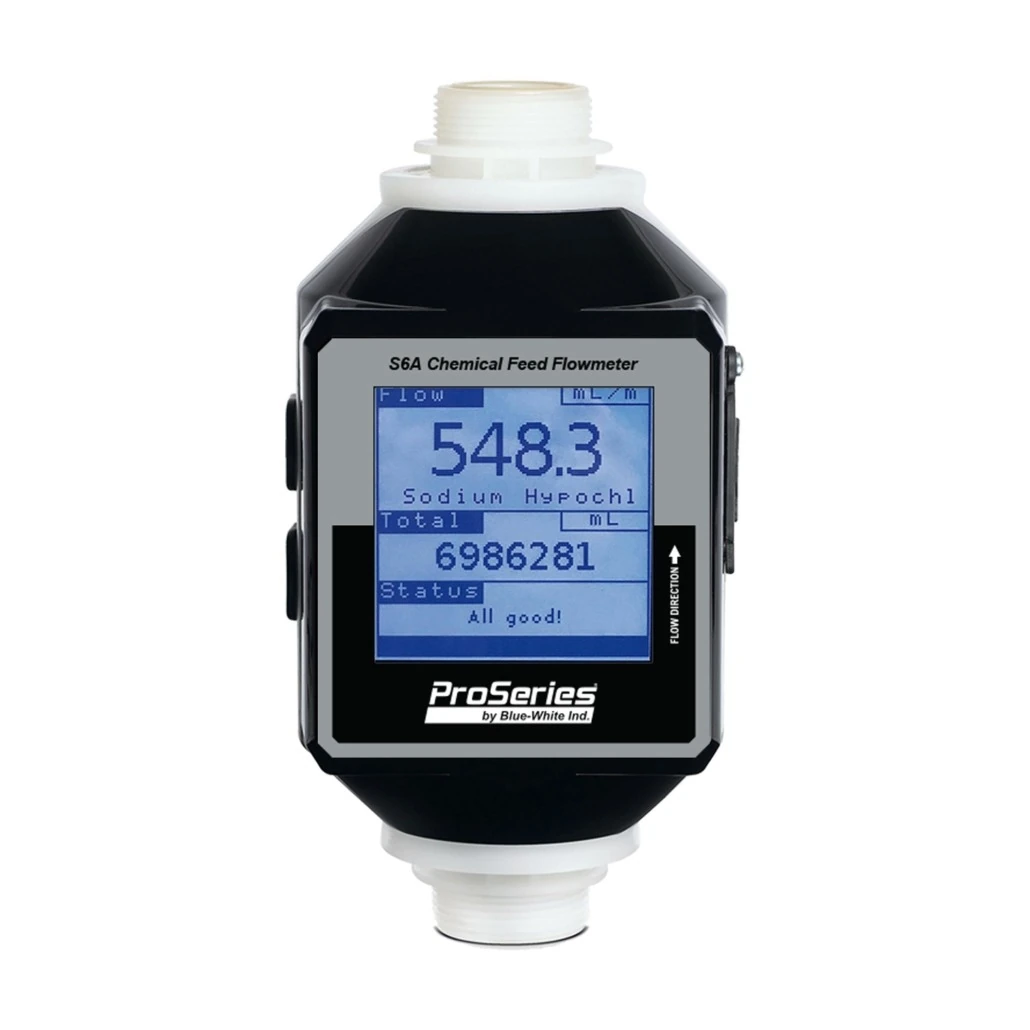

S6A Chemical Feed Flow Meter
Configurable via Blue-Central® desktop software range.
Features & Benefits
Key Features
Interface & Control
- Large 3.5" backlit LCD display
- Configurable via Blue-Central desktop software
- User configurable flow rate and total set-point triggers
- Process control via configurable solid state relay
- Configurable close/open trigger at flow-rate
- Flow total for batching operation
Technical Capabilities
- Isolated 4-20 mA output - fully configurable
- 0-10000Hz Pulse output - fully configurable
- Flow-rate readings as low as 10 mL/min
Installation & Maintenance
- Inline pipe fittings for easy installation
- True unions for ease of maintenance

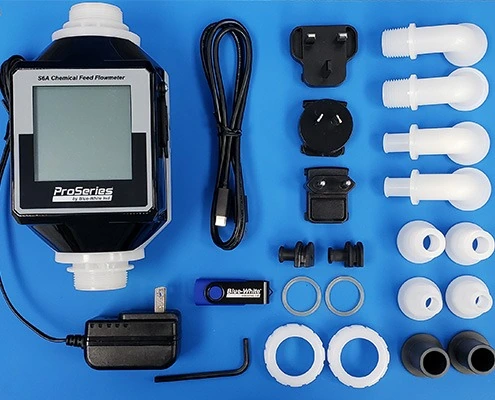

- Included wetted end fittings allow for more than 14 inlet/outlet configurations
- Wetted components constructed out of PVDF and PEEK
Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 3.5" LCD |
| Flow Rate (min) | 10 mL/min |
| Pulse Output | 0-10000Hz |
| Current Output | 4-20 mA |
| Inlet/Outlet Configurations | 14+ |

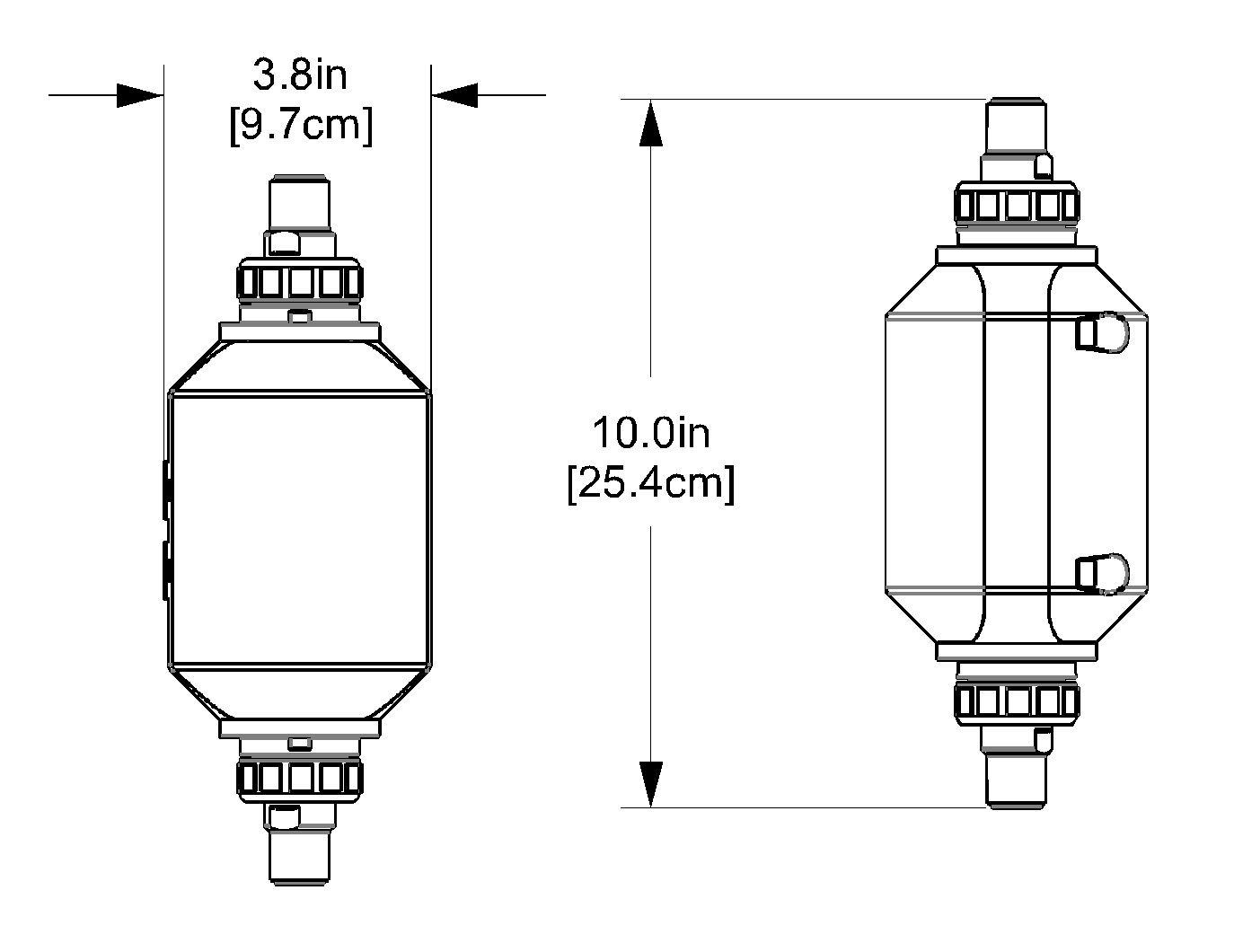

Dimensional drawings
Exploded view
