FV-101-7V | MICROFLO FV 30-300 MLM 0.25" FPT VIT

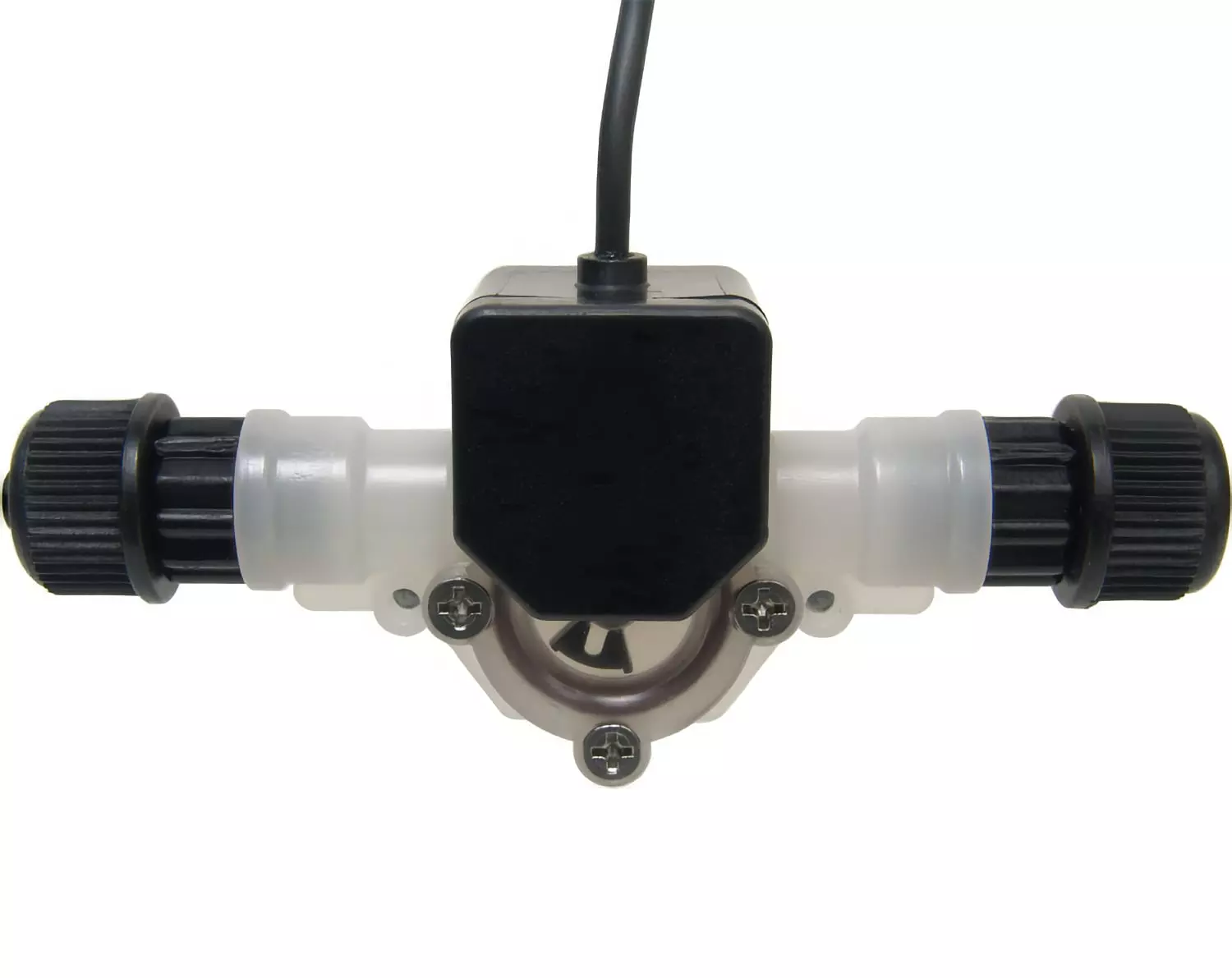

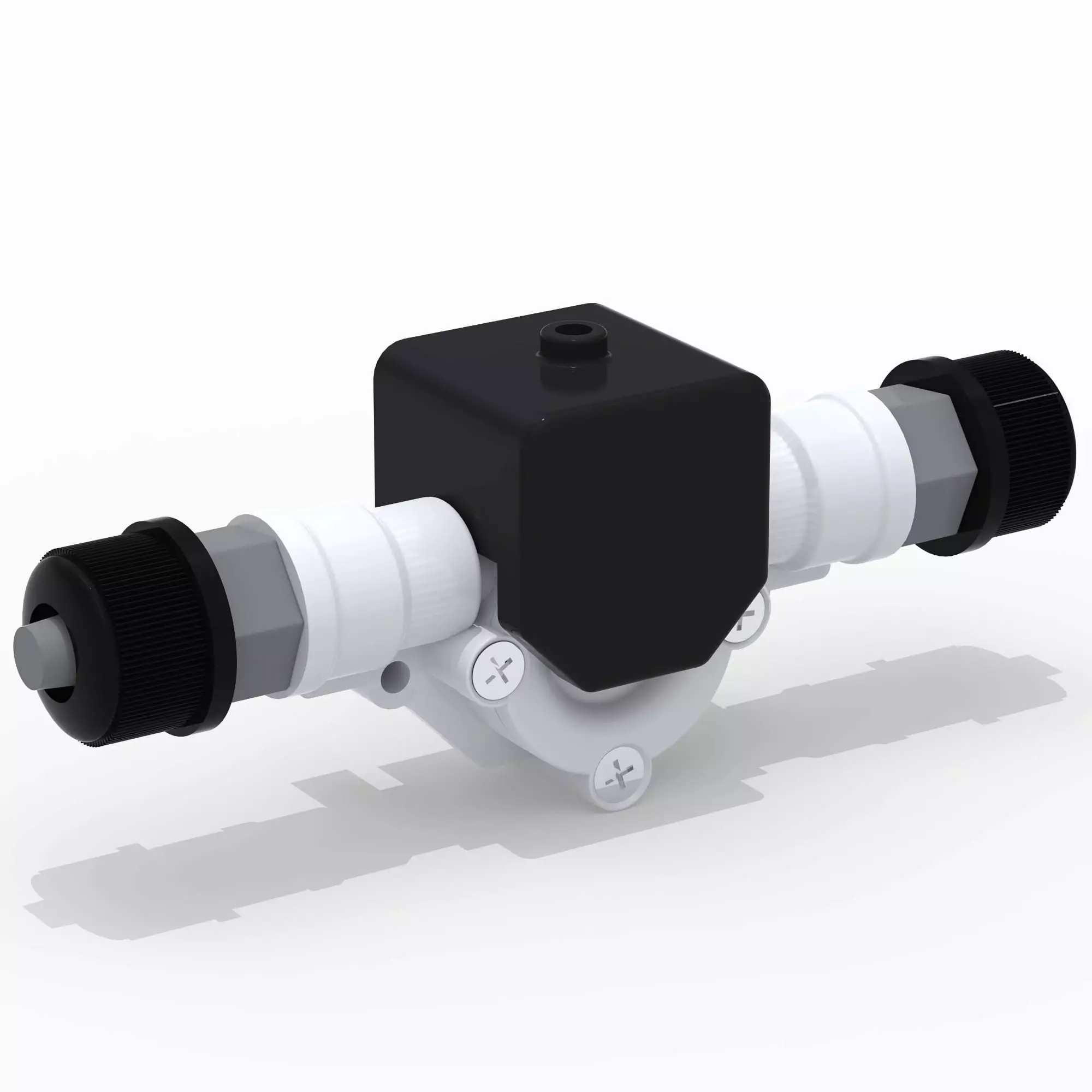

MICRO-FLO (FV) DIGITAL PADDLEWHEEL FLOWMETER

Flow Range: 0.47 – 110.9 GPH (30 – 7000 mL/min) Pipe Sizes: ⅛", ¼", ½" NPT ¼" and ⅜" OD Tubing

FV = No Display, Sensor Only. 5 VDC current sinking output (includes 6ft. cable)

Micro-Flo Flow Monitoring System

For precision low-flow monitoring applications, with vertical or horizontal installation flexibility

Key Features

Display & Interface

• Easy to read 6-digit LCD display
• Displays rate of flow and total accumulated flow
• Up to 4 decimal position precision
• User selectable scale factors:
  • Flow Units: Gallons, Liters, Ounces, Milliliters
  • Time Units: Minutes, Hours, Days
• Note: LCD not recommended for direct sunlight exposure

Electronics & Control

• Factory calibrated with no programming required
• Non-volatile programming and flow memory
• Adjustable total reset function
• Power: 9-28 VDC input (AC/DC transformers available)

Communication & Output

• Open collector alarm set point
• Digital pulse output (2-wire)

Construction & Protection

• Infra-red light sensor technology
• PVDF chemical resistant lens
• NEMA 4X weather resistant enclosure
