Headline
MICRO-FLO Digital Paddlewheel Flow Meter
- F/NPT, Socket Fusion and Butt Fusion connections
- OEM options available
Features & Benefits
Micro-Flo Flow Monitor
Overview
- Designed for low-flow monitoring applications
- Accepts vertical or horizontal installation
- Factory calibrated with no programming required
Display & Interface
- Easy-to-read 6-digit LCD display
- Dual display functionality:
- Rate of flow
- Total accumulated flow
- Up to 4 decimal position precision
- Note: Not recommended for direct sunlight exposure
Programmable Units
- Flow measurement options:
- Gallons
- Liters
- Ounces
- Milliliters
- Time base options:
- Minutes
- Hours
- Days
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Input | 9-28 VDC |
| Enclosure Rating | NEMA 4X |
| Memory Type | Non-Volatile |
Features
Electronics
- AC/DC transformers available
- Non-volatile programming memory
- Accumulated flow memory retention
- Configurable Total Reset function
Communication
- Open collector alarm set point
- Digital pulse output (2 wire)
Construction
- Infra-red light sensor
- PVDF chemical resistant lens
- Weather resistant NEMA 4X enclosure
Model Options
- FA: Analog Output with Rate & Total, Sensor Mounted Display
- FS: Rate & Total with Sensor Mounted Display
- FP: Rate & Total with Panel Mounted Display
- FV: Sensor Only, No Display, 5 VDC current sinking output (includes 6ft. cable)
- FX: Visual indicator only, No electronic sensor
Chemical Compatibility
Construction Notes
Viewing lens material: Opaque PVDF
Compression seal to pump: PVC

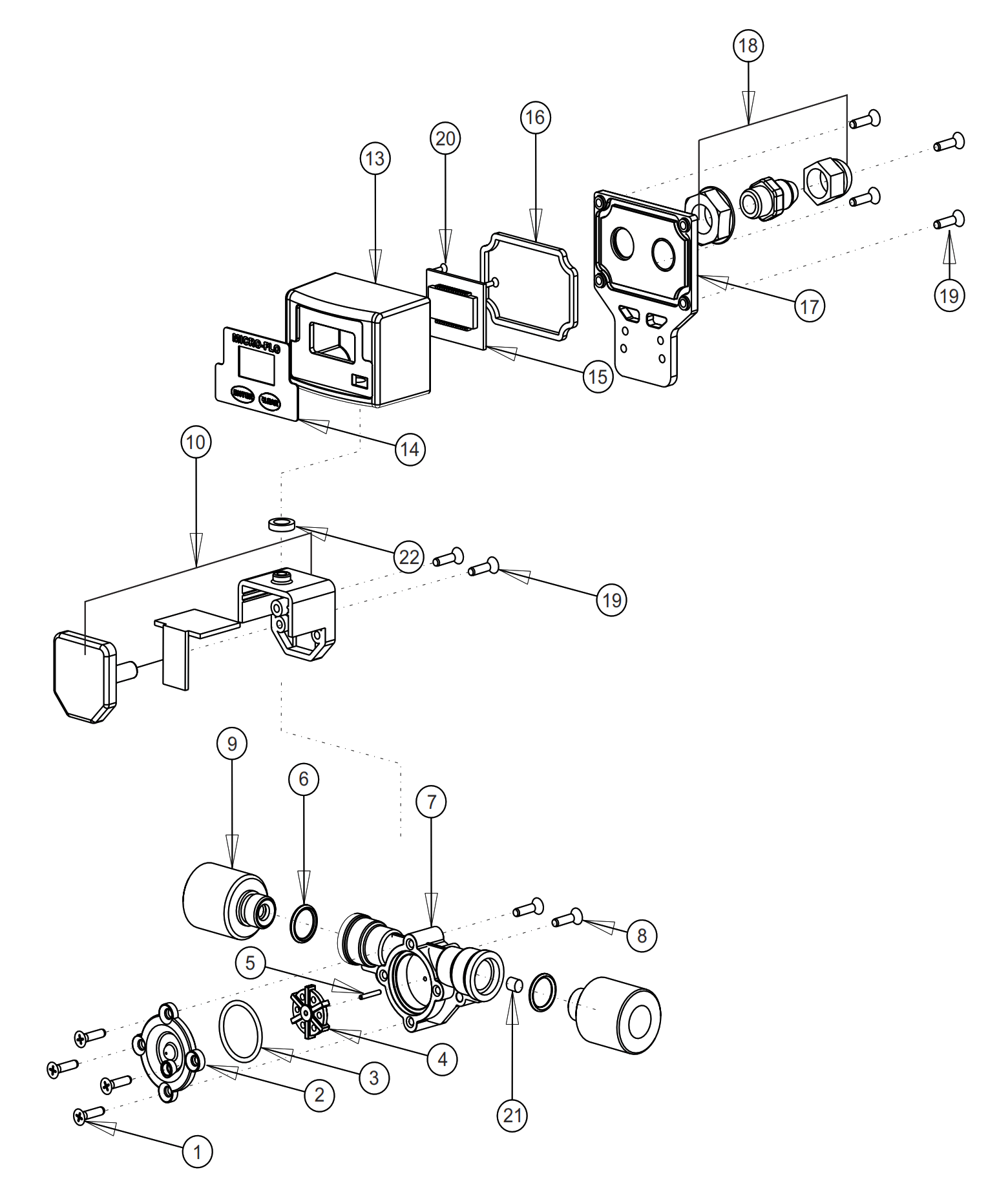

Dimensional drawings
