Headline
F-461 Polysulfone Flow Meter
- PTFE float and optional PVC, Polypropylene or PVDF adapters for corrosive applications
- Polysulfone meter body resists high temperatures and pressures
Features & Benefits
- For use in UltraPure applications
- No metal in the fluid path
- Rib guided float
- Polysulfone meter body resists high temperatures and pressures
- PTFE float and optional PVC, Polypropylene or PVDF adapters for corrosive applications
- Direct reading permanent scale
Additional Notes
Specifications
| Spec | Rated Value |
|---|---|
| Max. Working Pressure: | 150 psig (10.3 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: | PVDF adapters: 210˚F / 98˚C @ 0 PSI PVC adapters: 130˚F / 54˚C @ 0 PSI |
| Full Scale Accuracy: | +/- 2 ½% |
| Meter Body Material: | Polysulfone |
| Adapter Material: | Female NPT (1”): PVDF or PVC Socket Fusion (1”): PVDF or Polypropylene |
| Union Nuts: | Anodized Aluminum (optional PVC) |
| Float Material: | PTFE |
| O-ring Material: | FKM (Optional EP) |
| Max Pressure Drop: | 2 PSI |
| Approx. Shipping Weight: | 3 lb. (1.4 kg) |
What’s Included:
- Flowmeter x1
- Instruction Manual

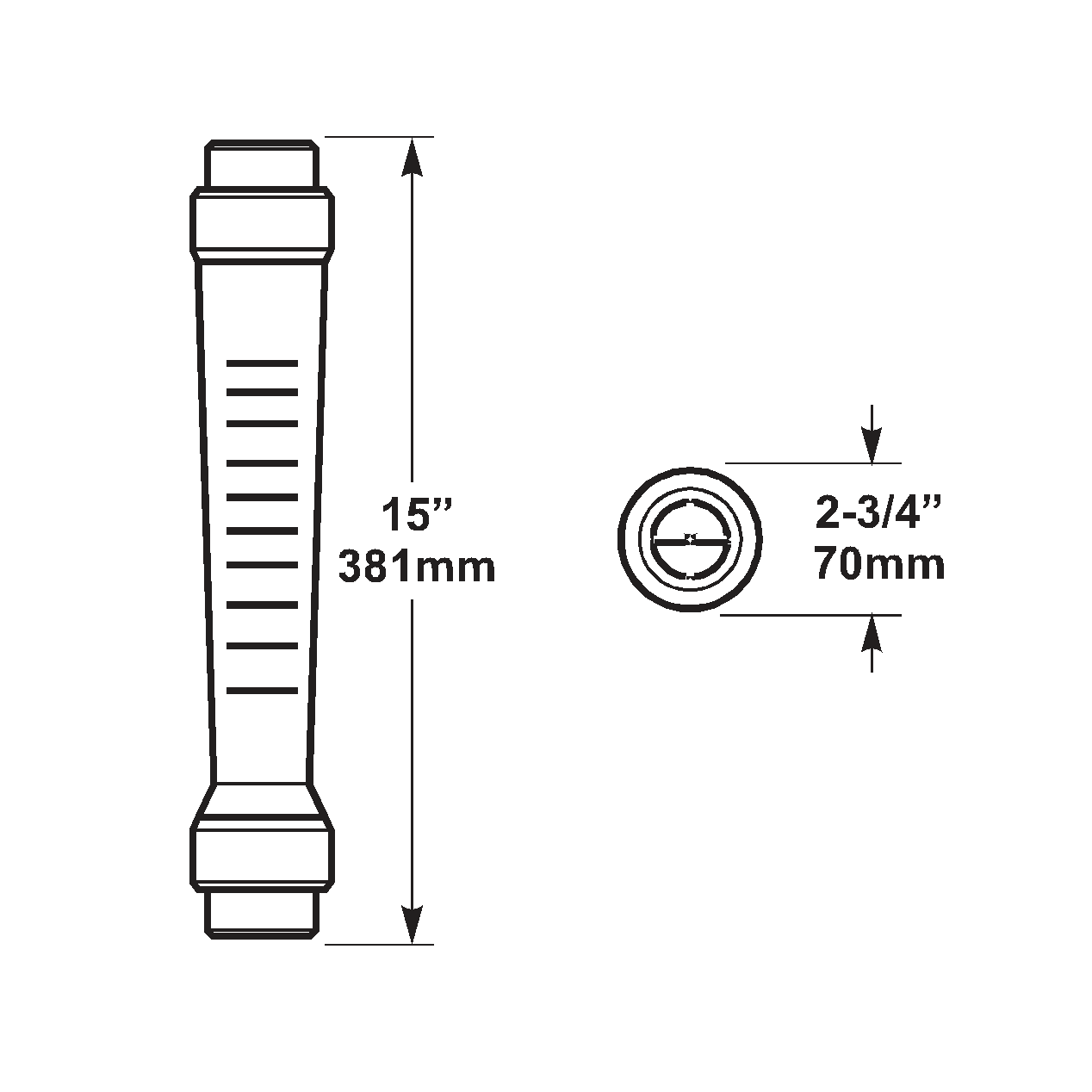

Dimensional drawings
