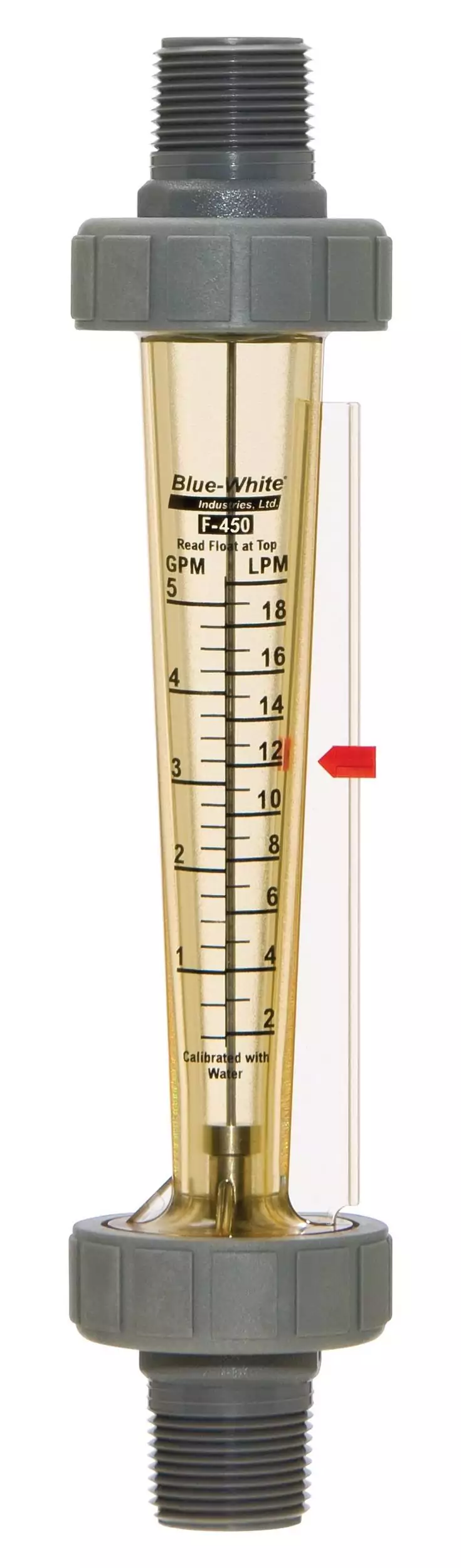

F-450N Polysulfone Flow Meter
- 316 SS or Hastelloy rod guided float.
- Available OEM options: Private labeling, custom calibrations and custom materials.
Features & Benefits
Key Features
- Polysulfone meter body resists high temperatures and pressures
- 316 SS or Hastelloy rod guided float
- Taller size for better scale readability
- Direct reading permanent scale
- Optional flow control needle valve
Installation Specifications
- In-Line (vertical) mount only
- Not recommended for direct sunlight
Adapter Configurations
Standard NPT Options
- 3/8 inch female NPT and 1/2 inch, 3/4 inch male NPT Inline units
- 3/8 inch female NPT and 1/2 inch, 3/4 inch male NPT panel mount units
- 3/8 inch female NPT and 1/2 inch, 3/4 inch male NPT panel mount adjustable units
Brass Options
- 1/2 inch and 3/4 inch M/NPT and sweat
Customization Options
- Private labeling
- Custom calibrations
- Custom materials
Chemical Compatibility
Construction Notes
Standard models for liquid
Dimensional drawings
Reference Dimensions
| Model No. | Dim A | Dim B | Dim C | Dim D | |
|---|---|---|---|---|---|
| Inline | F-45375 F-45376 F-45500 |
8-7/8" 225.5mm |
1-3/4" 44.4mm |
N/A | N/A |
| Inline | F-45,750 | 10" 254mm |
2" 51 mm |
N/A | N/A |
| Elbow | F-45375 E F-45376 E F-45500E |
9-7/8" 250.8mm |
3-1/2" 88mm |
2" 51mm |
8-9/16" 217.5mm |
| Elbow | F-45750E | 10" 254mm |
3-1/2" 88mm |
2" 51mm |
9-1/8" 233mm |
| Adjustable | F-45375A F-45376A F-45500A |
9-7/8" 250.8mm |
5" 127mm |
2" 51mm |
8-9/16" 217.5mm |
| Adjustable | F-45750A | 10" 254mm |
5" 127mm |
2" 51mm |
9-1/8" 231.8mm |
