Headline
F-440 Polysulfone Flow Meter
- Standard Models: 316 SS guide rod
- K-Series: Hastelloy C guide rod (for corrosive environments)

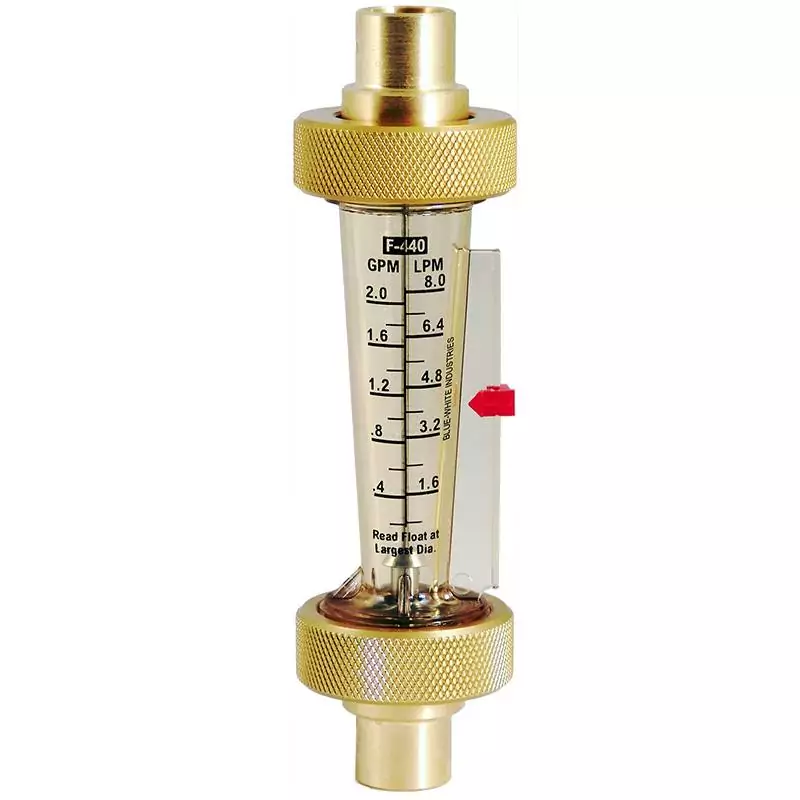

- Optional: SolarMeter® Brass Adapters
Features & Benefits
- Polysulfone meter body resists high temperatures and pressures.
- Compact size for tight installation spaces.
- 316SS or Hastelloy rod guided float.
- Union connections for easy installation and maintenance.
- Adjustable flow rate setpoint indicator.
- Direct reading permanent scale.
Dimensional drawings
Reference Dimensions
| MPN | Dim A | Dim B | Dim C | Dim D | |
|---|---|---|---|---|---|
| Inline | F-44,250 F-44,330 F-44,375 F-44,376 F-44,500 F-44,560 |
6-3/16" 157mm |
1-11/16" 43mm |
N/A | N/A |
| Inline | F-44,750 | 7-1/2" 191mm |
2" 51mm |
N/A | N/A |

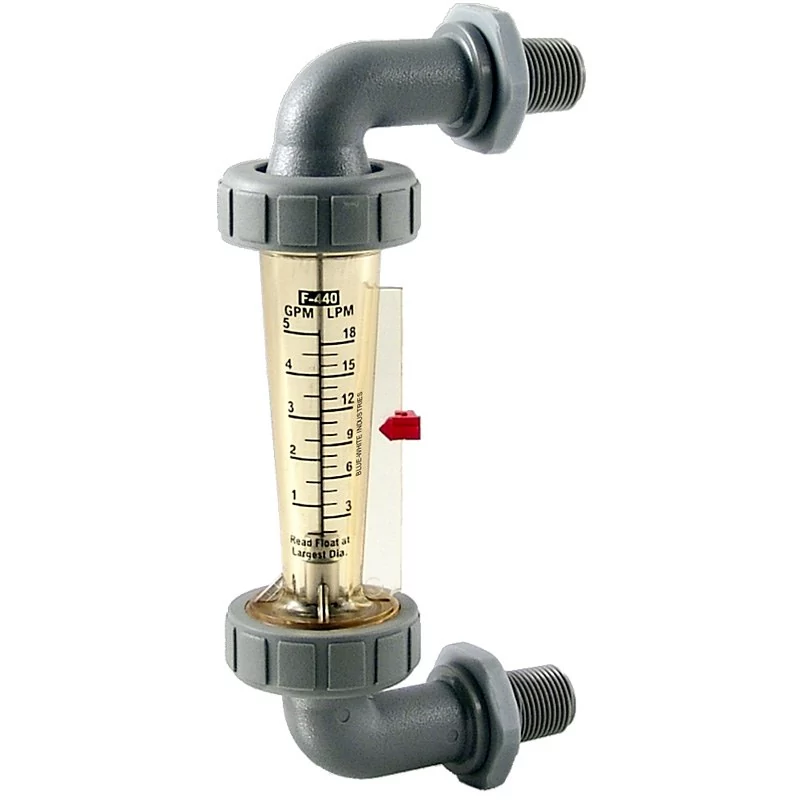

| Elbow | F-44250E F-44330E F-44375 E F-44376 E F-44500E |
7" 178mm |
3" 76mm |
1-11/16" 43mm |
5-15/16" 151mm |
| Elbow | F-44560E | 7" 178mm |
3" 76mm |
2" 51mm |
6-13/16" 173mm |
| Elbow | F-44750E | 8-1/8" 206mm |
3" 76mm |
2" 51 mm |
6-13/16" 173mm |

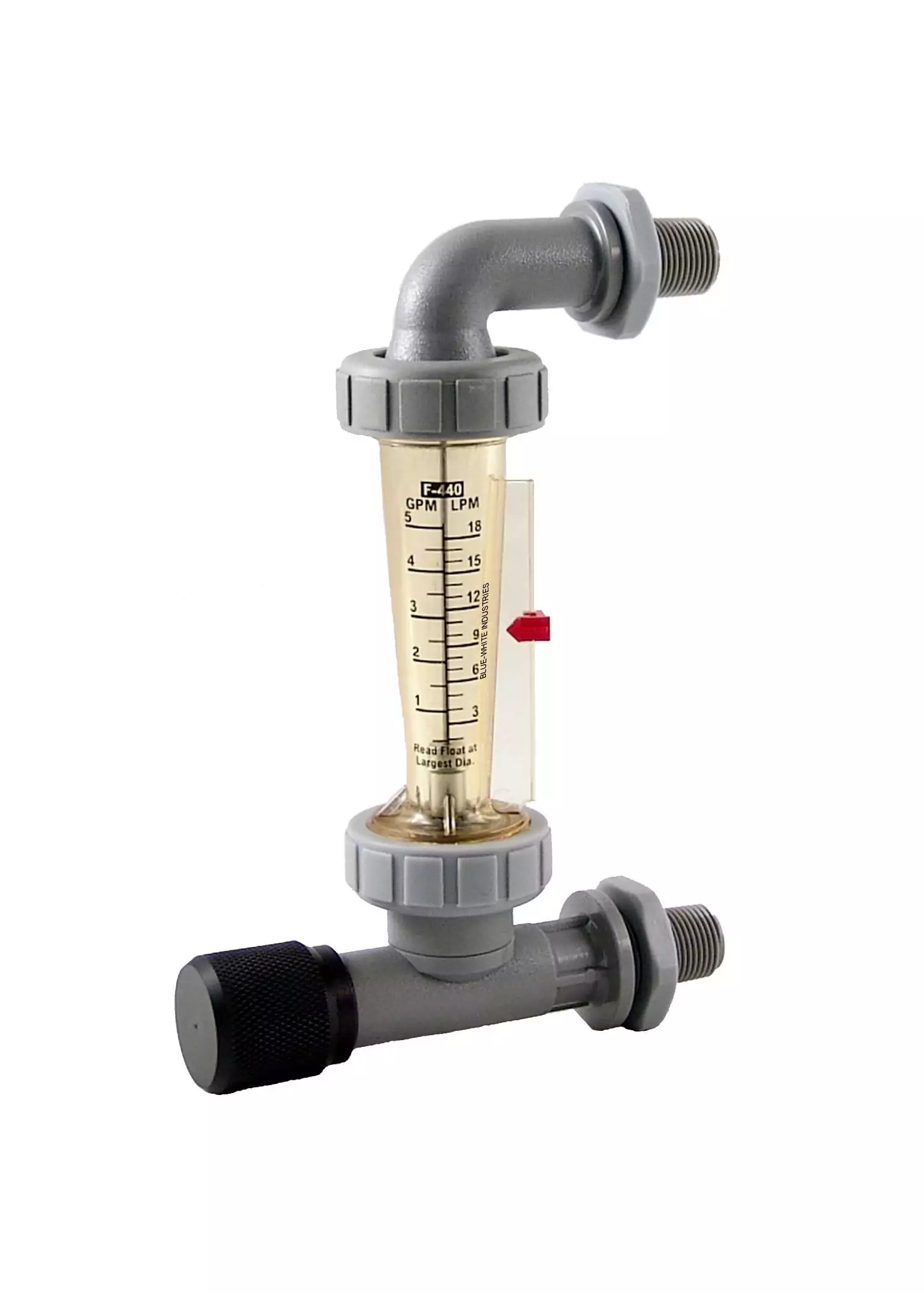

| Adjustable | F-44250EA F-44330EA F-44375 EA F-44376 EA F-44500EA F-44560EA |
7" 178mm |
4-1/2" 114mm |
1-11/16" 43mm |
6" 152mm |
| Adjustable | F-44750EA | 8" 203mm |
4-1/2" 114mm |
2" 51mm |
6-13/16" 173mm |
