Headline

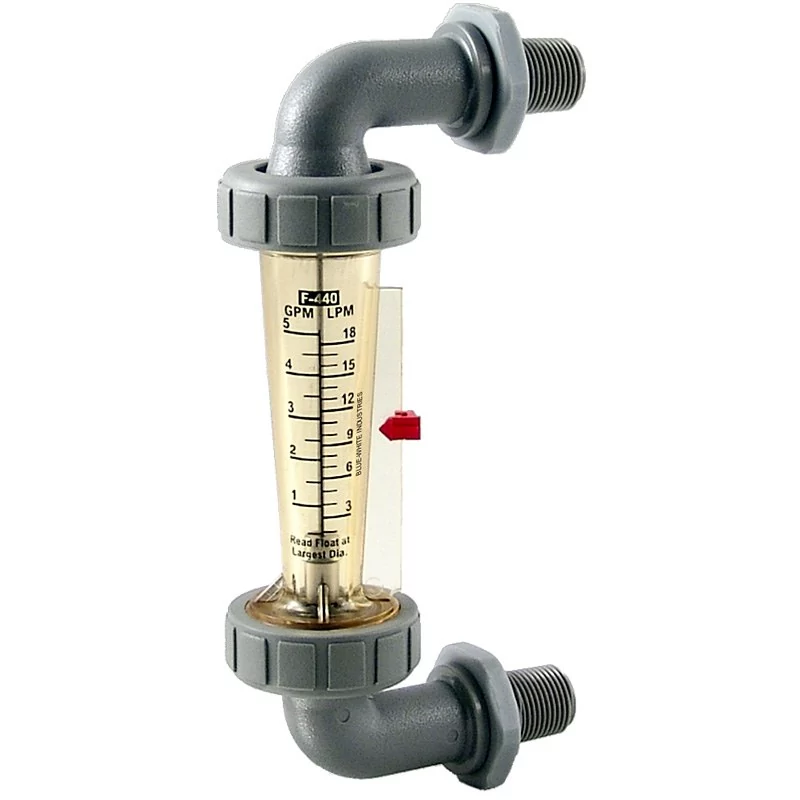

F-440 Polysulfone Flow Meter
These compact, durable units are injected of heat and chemical-resistant polysulfone. They feature half-union connectors that couple the meter body to the pipe connectors at each end of the flow meter. F-440 Series units are available in configurations for in-line or panel mount installations. Additionally, F-440 units may be ordered with an integral, adjustable flow control needle metering valve.
Features & Benefits
Key Features
Construction & Durability
- Polysulfone meter body resists high temperatures and pressures
- 316SS or Hastelloy rod guided float
- Direct reading permanent scale
Installation & Maintenance
- Compact size for tight installation spaces
- Union connections for easy installation and maintenance
- Adjustable flow rate setpoint indicator
Chemical Compatibility
Construction Notes
Standard models for liquid
Dimensional drawings
Reference Dimensions
| MPN | Dim A | Dim B | Dim C | Dim D | |
|---|---|---|---|---|---|
| Inline | F-44,250 F-44,330 F-44,375 F-44,376 F-44,500 F-44,560 |
6-3/16" 157mm |
1-11/16" 43mm |
N/A | N/A |
| Inline | F-44,750 | 7-1/2" 191mm |
2" 51mm |
N/A | N/A |
| Elbow | F-44250E F-44330E F-44375 E F-44376 E F-44500E |
7" 178mm |
3" 76mm |
1-11/16" 43mm |
5-15/16" 151mm |
| Elbow | F-44560E | 7" 178mm |
3" 76mm |
2" 51mm |
6-13/16" 173mm |
| Elbow | F-44750E | 8-1/8" 206mm |
3" 76mm |
2" 51 mm |
6-13/16" 173mm |
| Adjustable | F-44250EA F-44330EA F-44375 EA F-44376 EA F-44500EA F-44560EA |
7" 178mm |
4-1/2" 114mm |
1-11/16" 43mm |
6" 152mm |
| Adjustable | F-44750EA | 8" 203mm |
4-1/2" 114mm |
2" 51mm |
6-13/16" 173mm |
