F-400N | In-line Flowmeters
Product details
Spot an error? Let us know!
Headline
Acrylic Flow Meter
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
- Acceptable for outdoor installations (direct sunlight okay)
Features & Benefits
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Direct reading permanent scale.
- White back reflector for easy reading.
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive * environments.
Additional Notes
Specifications
| Spec | Rated Value |
|---|---|
| Max. Working Pressure: | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Max. Fluid Temperature: | 150°F (65°C) @ 0 psig |
| Full Scale Accuracy: | +/- 5% |
| Meter Body Material: | Acrylic |
| Float Material: | 316 SS (optional Hatelloy-C) |
| O-ring Seal Material: | FKM (Optional EP) |
| Adapter Material: | Polypropylene |
| Approx. Shipping Weight: | ½ lb. (.23 kg) |
What’s Included:
- Flowmeter x1
- Instruction Manual

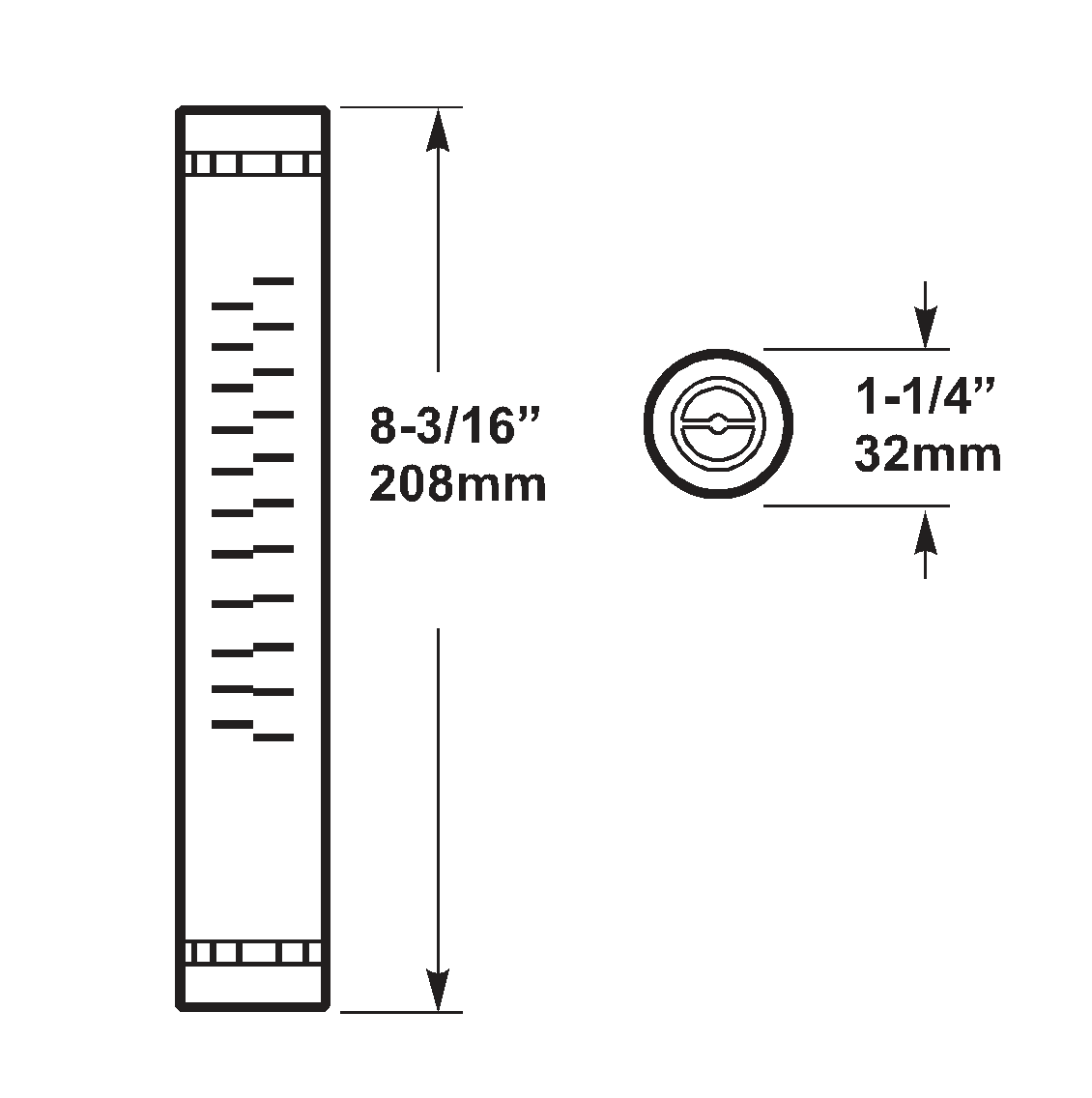

Dimensional drawings
