TB-100AT-GPM1 | F-1000-TB 6-60 GPM 1.0" IPS SLIP PVC TEE

Pictures may not be actual SKU

TB-100AT-GPM1 | F-1000-TB 6-60 GPM 1.0" IPS SLIP PVC TEE

Name: TB-100AT-GPM1 | F-1000-TB 6-60 GPM 1.0" IPS SLIP PVC TEE
Brand: Blue-White
SKU: BWI-42100508
Price: 565.59 USD
Availability: InStock

BWI | Blue-White

F-1000 | F-1000 Digital Paddlewheel Flow Meters

F-1000-TB | Flow Total - Paddlewheel Flowmeter

BWI-42100508

Description

Blue-White's TB-100AT-GPM1 Paddlewheel Flowmeter F-1000-TB 6-60 GPM 1.0" IPS SLIP PVC TEE. Item # 42100-508 (EF)

Configuration

Base Model

Model

TB | Flow Total

Size

100 | 1" Pipe

Connections

Type

AT | PVC Tee - Slip/Socket

Configuration

Units

GPM | Gallons per Minute

Flow Range

1 | Range 1 (see pipe fitting detail)

Options

_ | Standard

Available to Order

Ships from PA - FL - OH - TX - OR

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$565.59 Configured Price

Quantity:

− +

Overview
Tech Specs
Support Docs
Dimensions
SKU List

Headline

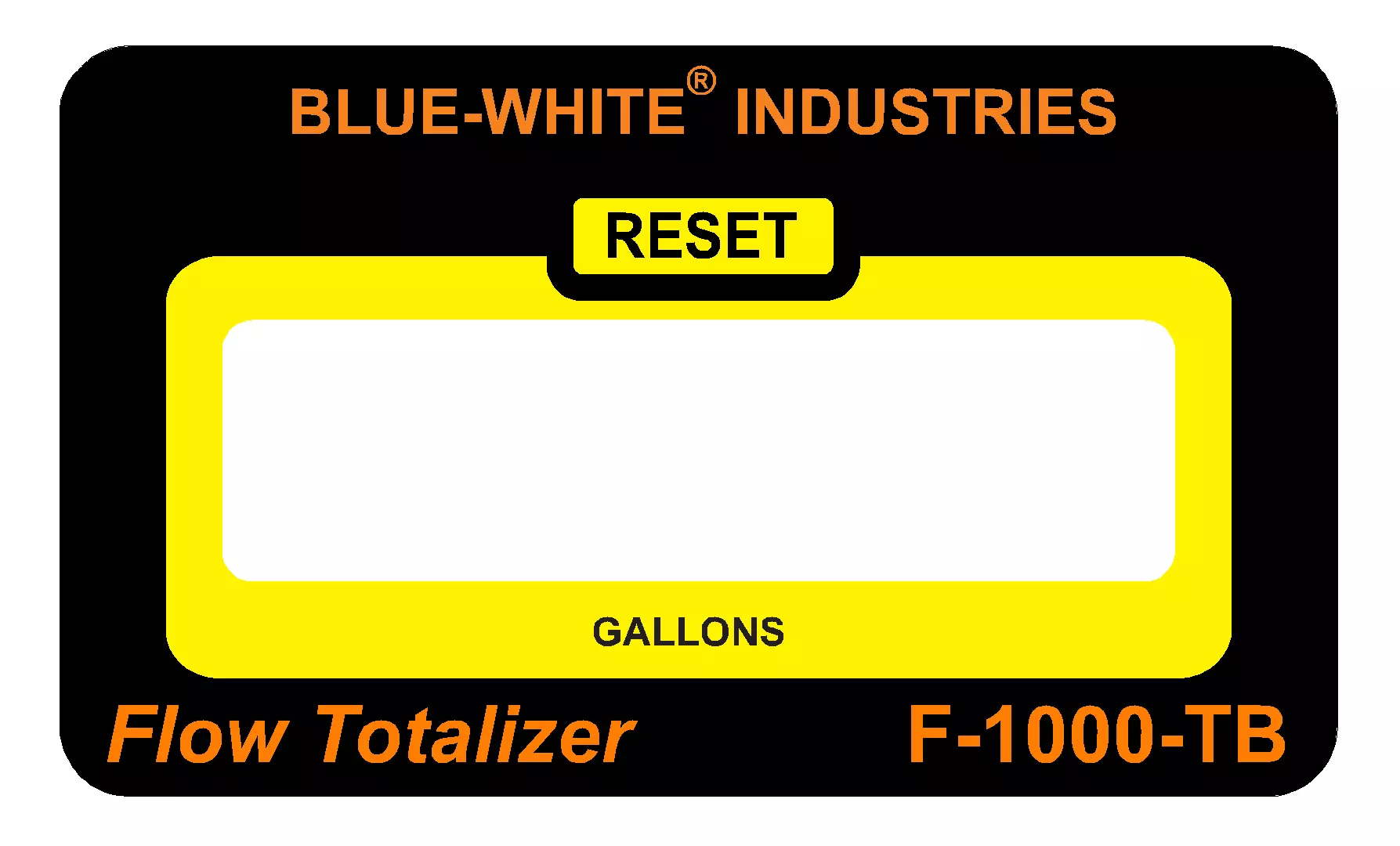

F-1000TB DIGITAL PADDLEWHEEL FLOWMETER (TB = Total Only)

Easy to read 6 digit LCD, up to 4 decimal positions.

Flow Range: 0.4 - 8000 GPM (1 - 27000 LPM) Pipe Sizes: ⅜", up to 12" Sensor mounted on pipe fitting. Battery operated.

Features & Benefits

Key Features

Display & Interface

Easy to read 6 digit LCD display
- Up to 4 decimal positions
- Display update rate: 1.5 seconds
- Total update rate: 0.5 seconds
Total Reset function can be disabled
Factory calibrated with no programming required

Installation & Power

Flexible mounting options
- Vertical or horizontal installation
- Standard models include pipe fitting
Battery operated (2 AAA batteries included)

Environmental Protection

NEMA 4X weather resistant enclosure
LCD display not recommended for direct sunlight exposure

Technical Specifications

Parameter	Value
Display Type	6 digit LCD
Decimal Positions	Up to 4
Rate Update Time	1.5 seconds
Total Update Time	0.5 seconds
Power Source	2 AAA batteries
Enclosure Rating	NEMA 4X

Manual

F1000 Operating Manual

Model Codes

F1000 Model Number Matrix

Datasheet

F1000 Flow Meter Tech Datasheet

Performance Charts

F1000 Temp vs Pressure PVDF Chart F1000 Temp vs Pressure PVC Chart

Dimensional drawings

Drawing A

Alternate configurations

SKU	Description	List price	-
BWI-42100031	TB-100MI-GPM1-P \| F-1000-TB 5-50 GPM 1.0" MPT NO PIPE	$448.70	BWI-42100031 Detail
BWI-42100500	TB-100MI-GPM1 \| F-1000-TB 5-50 GPM 1.0" MPT	$565.59	BWI-42100500 Detail
BWI-42100504	TB-100MI-LPM1 \| F-1000-TB 20-200 LPM 1" MPT	$565.59	BWI-42100504 Detail
BWI-42100509	TB-100AT-LPM1 \| F-1000-TB 25-250 LPM 1.0" IPS SLIP PVC TEE	$565.59	BWI-42100509 Detail
BWI-42100526	TB-100MI-M3H1 \| F-1000-TB 1.2-12 M3H 1.0" MPT	$565.59	BWI-42100526 Detail
BWI-42100530	TB-100AT-M3H1 \| F-1000-TB 1.50-15.0 M3H 1.0" SLIP PVC TEE	$565.59	BWI-42100530 Detail
BWI-42100565	TB-100MI-GPH1 \| F-1000-TB 300-3000 GPH 1.0" MPT	$565.59	BWI-42100565 Detail
BWI-42100594	TB-100MB-LPM1 \| F-1000-TB 20-200 LPM 1" BSPT PP	$565.59	BWI-42100594 Detail
BWI-42150021	TB-150MI-GPM2 \| F-1000-TB 6-60 GPM 1.5 MPT	$565.59	BWI-42150021 Detail
BWI-42150040	TB-150MI-LPM2 \| F-1000-TB 25-250 LPM 1.5 MPT	$565.59	BWI-42150040 Detail
BWI-42150139	TB-150MI-GPM2-P \| F-1000-TB 6-60 GPM 1.5 MPT NO PIPE	$448.70	BWI-42150139 Detail
BWI-42150501	TB-150AT-GPM1 \| F-1000-TB 15-150 1.5" SLIP PVC TEE GPM	$565.59	BWI-42150501 Detail
BWI-42150508	TB-150S8-GPM1 \| F-1000-TB 15-150 GAL 1.5"IPS SCH80 PVDF	$565.59	BWI-42150508 Detail
BWI-42150509	TB-150S4-GPM1 \| F-1000-TB 15-150 GAL 1.5"IPS SCH40 PVDF	$565.59	BWI-42150509 Detail
BWI-42150511	TB-150S4-LPM1 \| F-1000-TB 60-600 LTR 1.5"IPS SCH40 PVDF	$565.59	BWI-42150511 Detail
