Headline

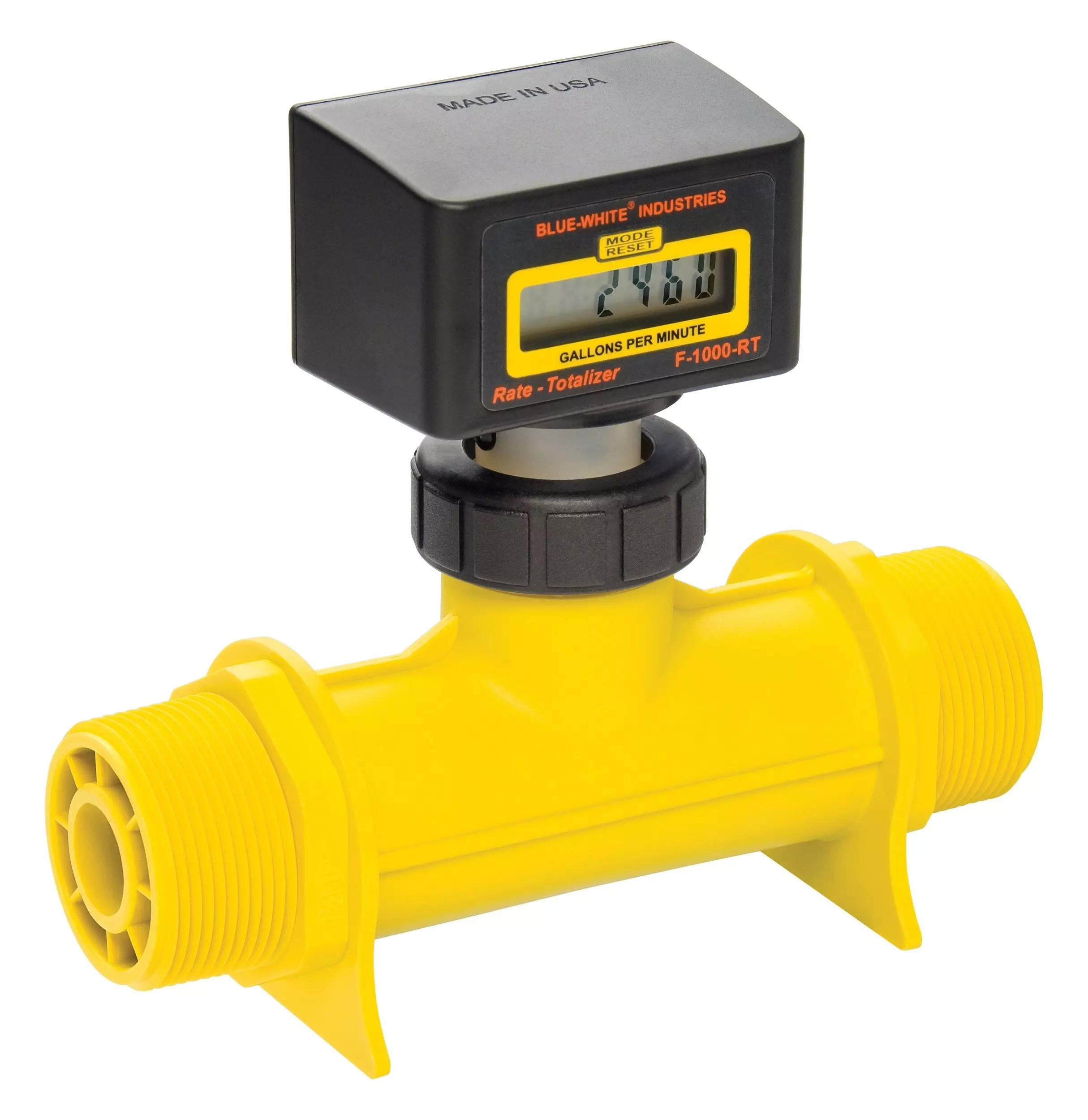

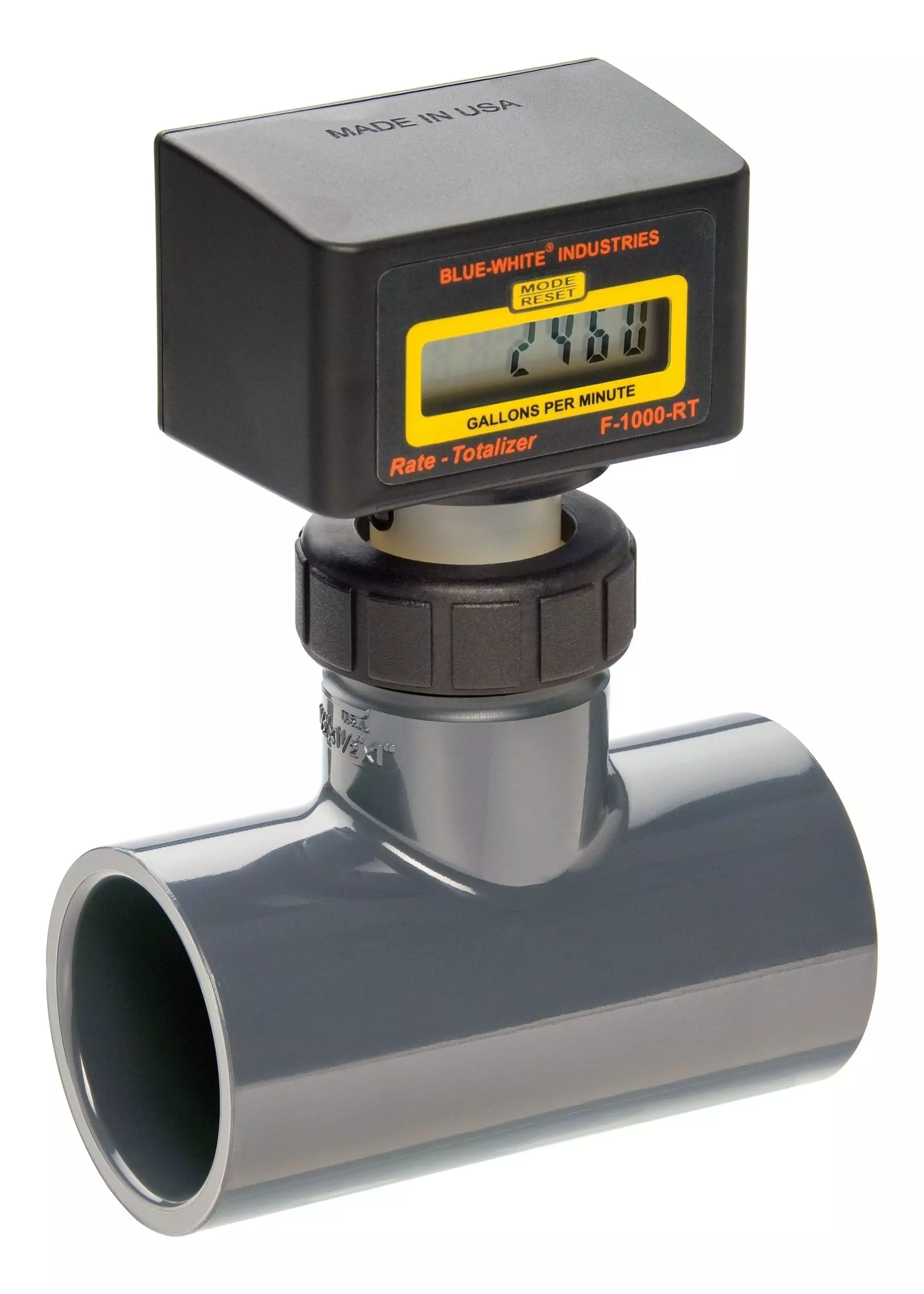

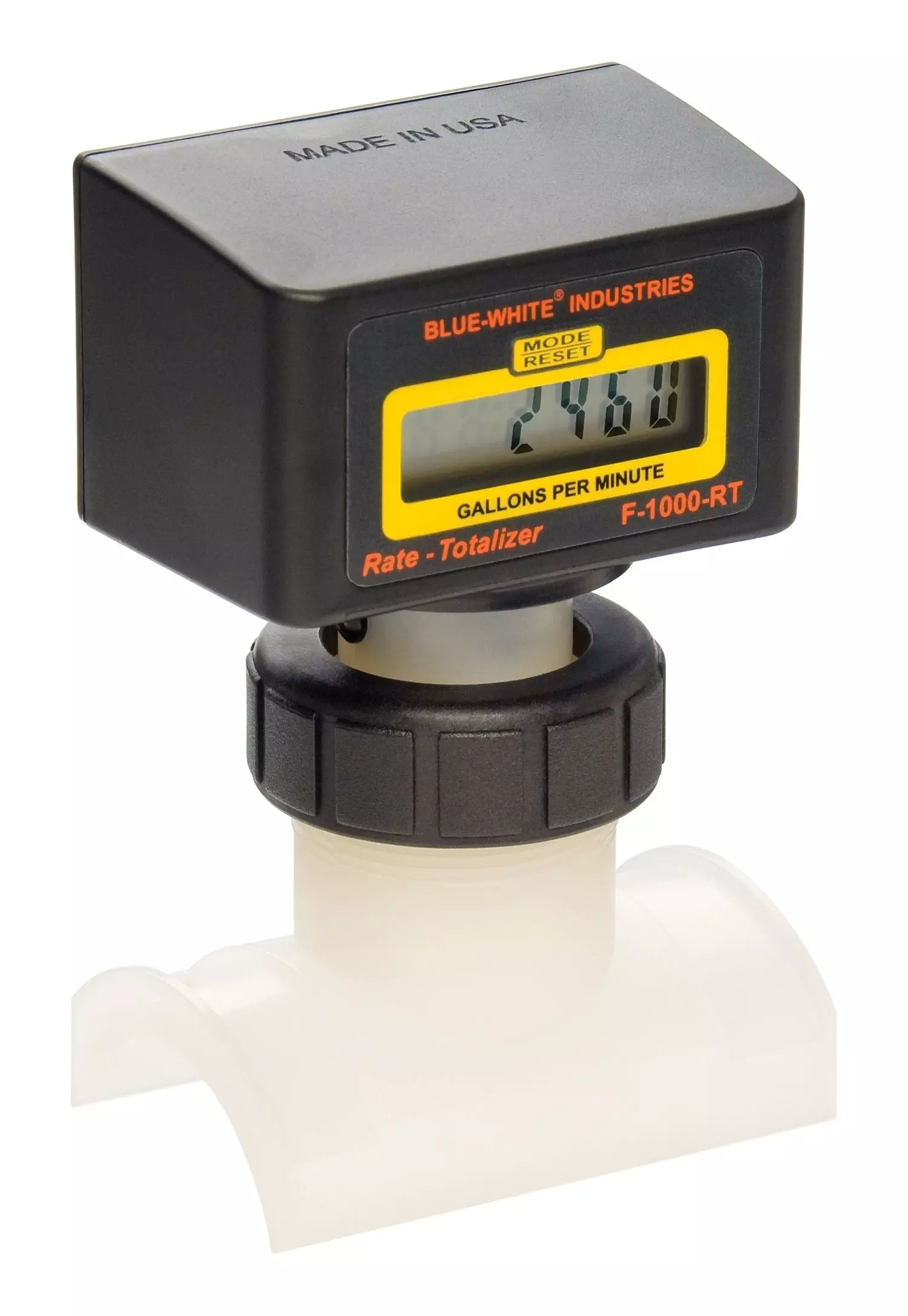

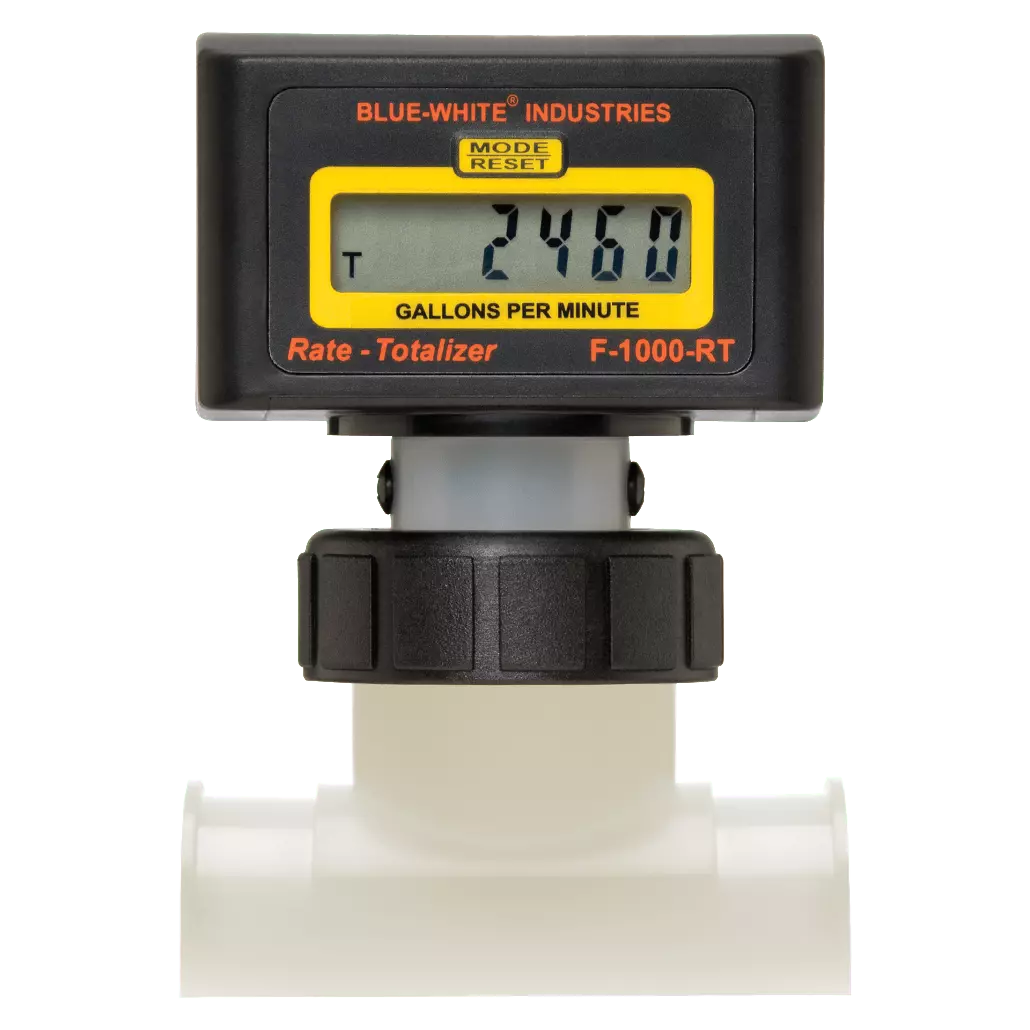

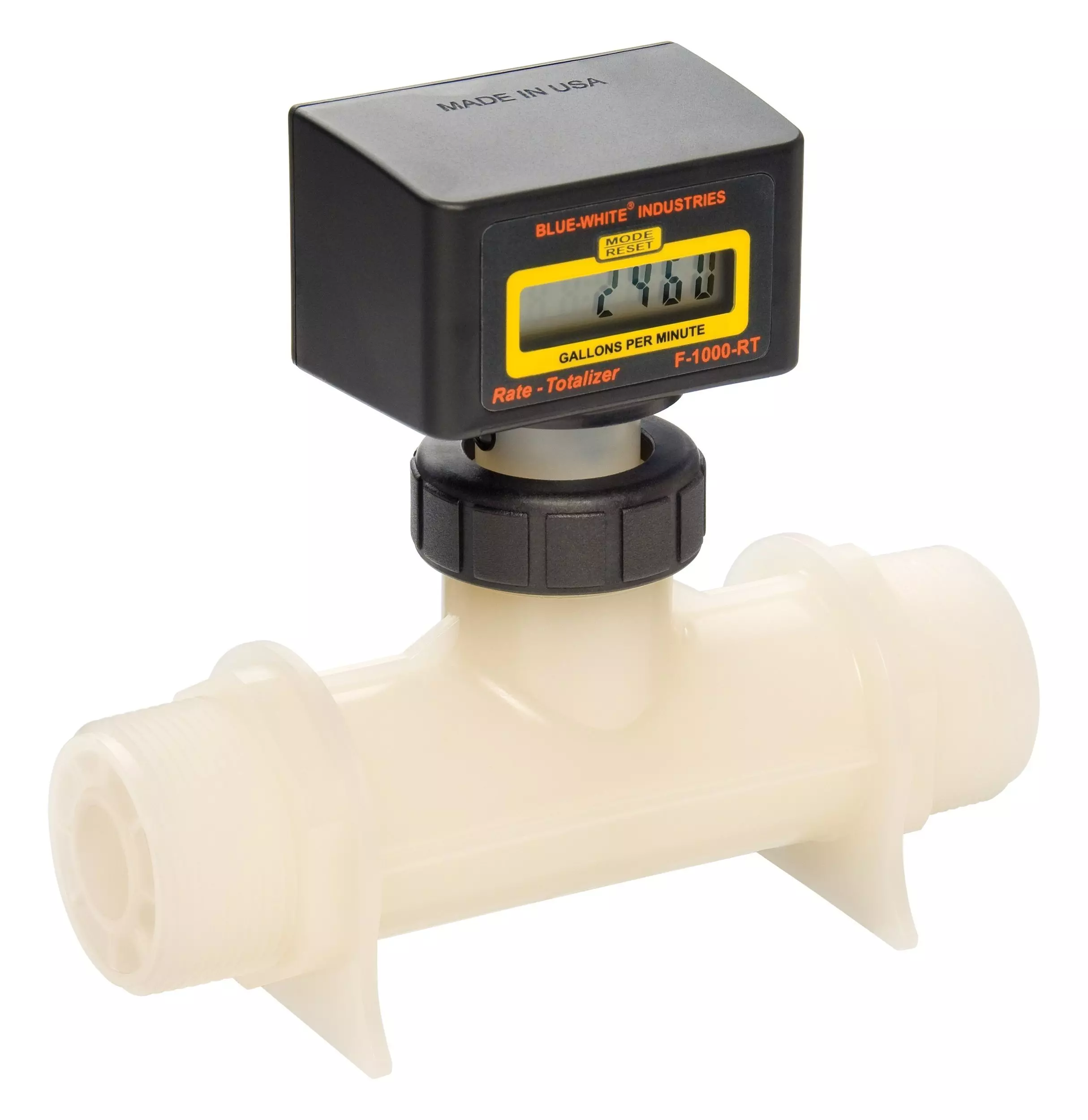

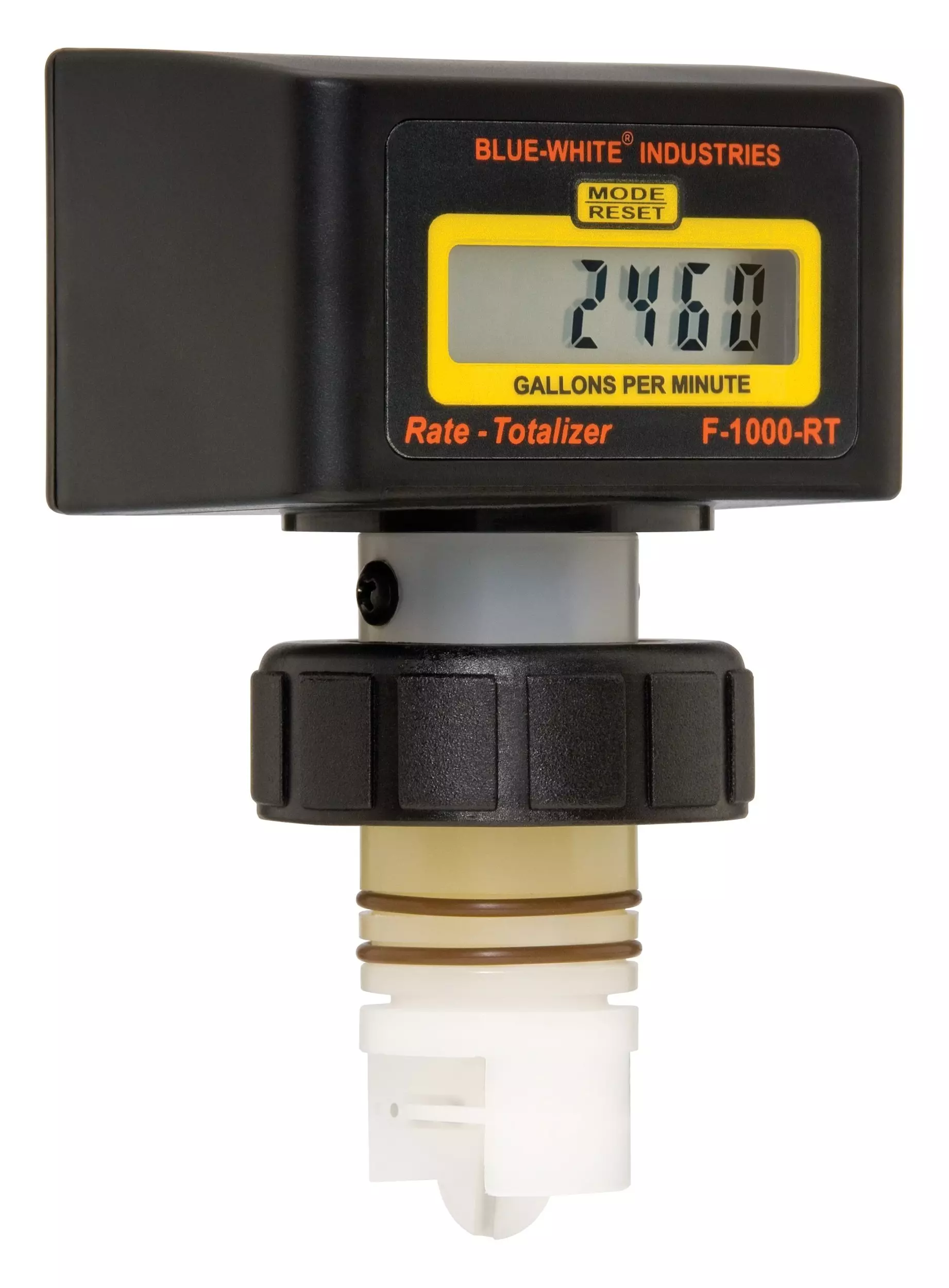

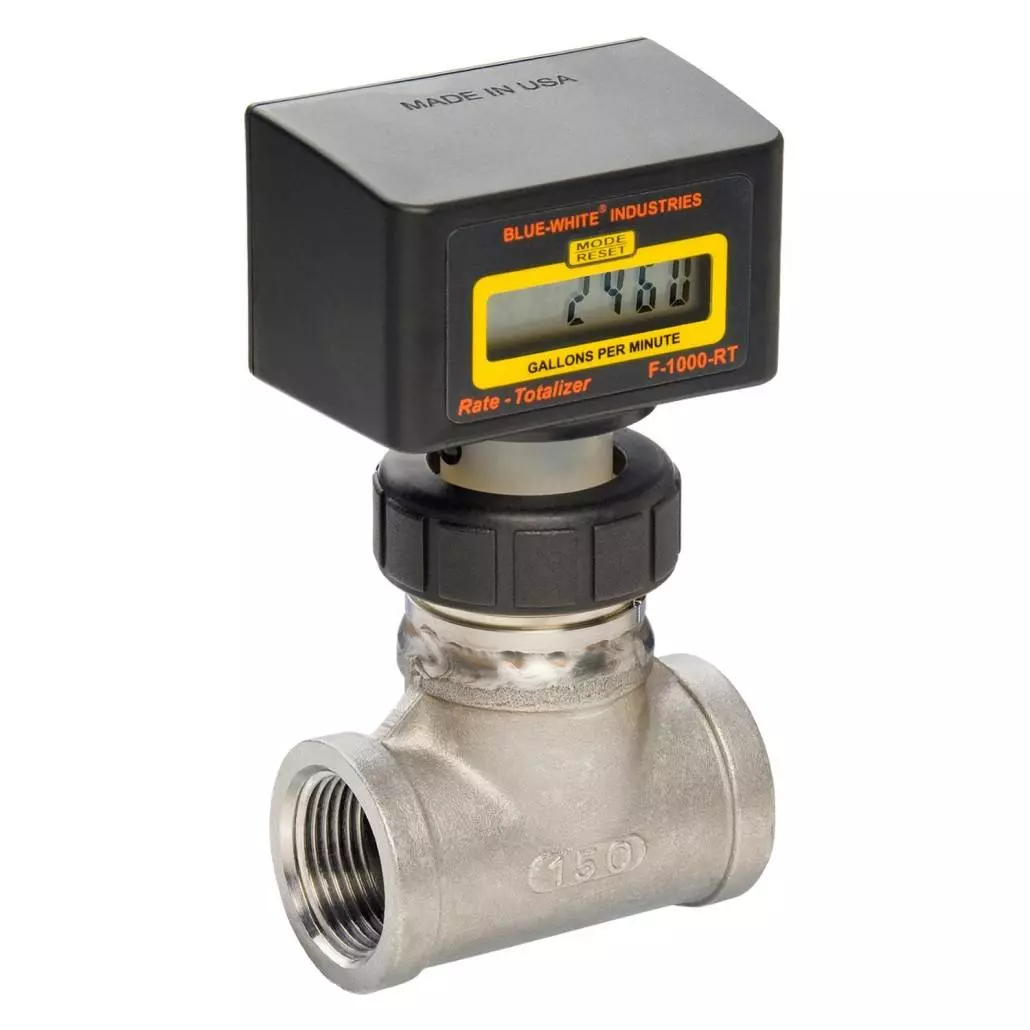

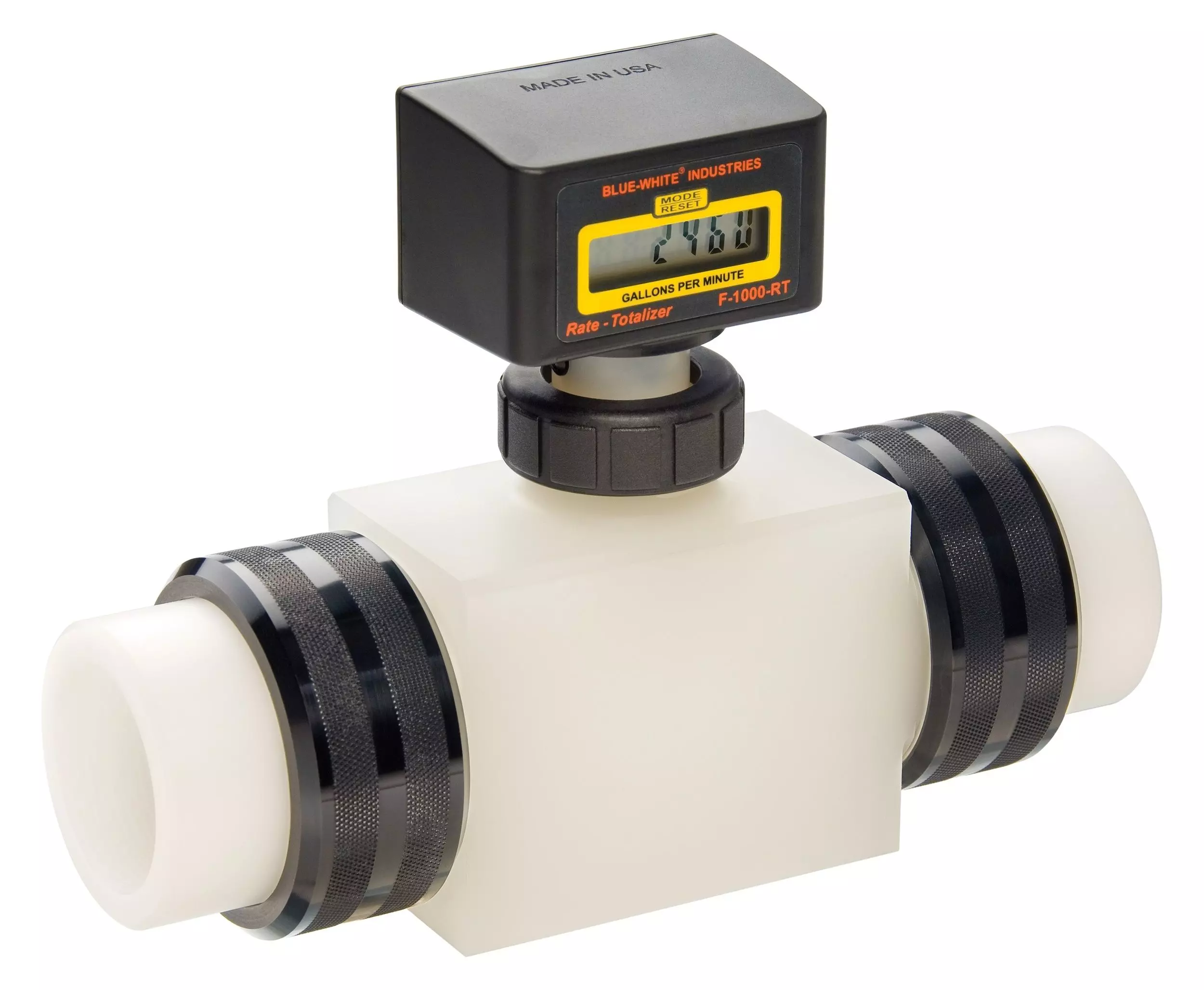

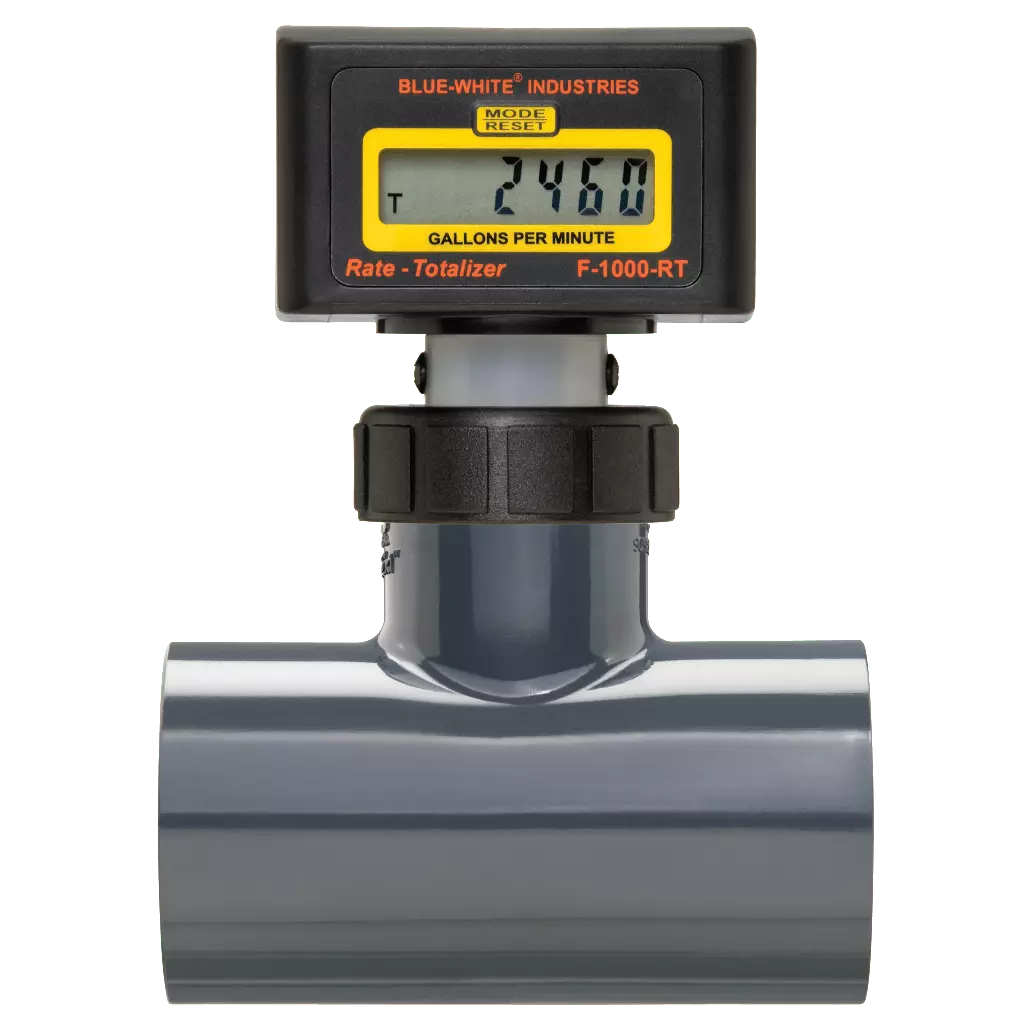

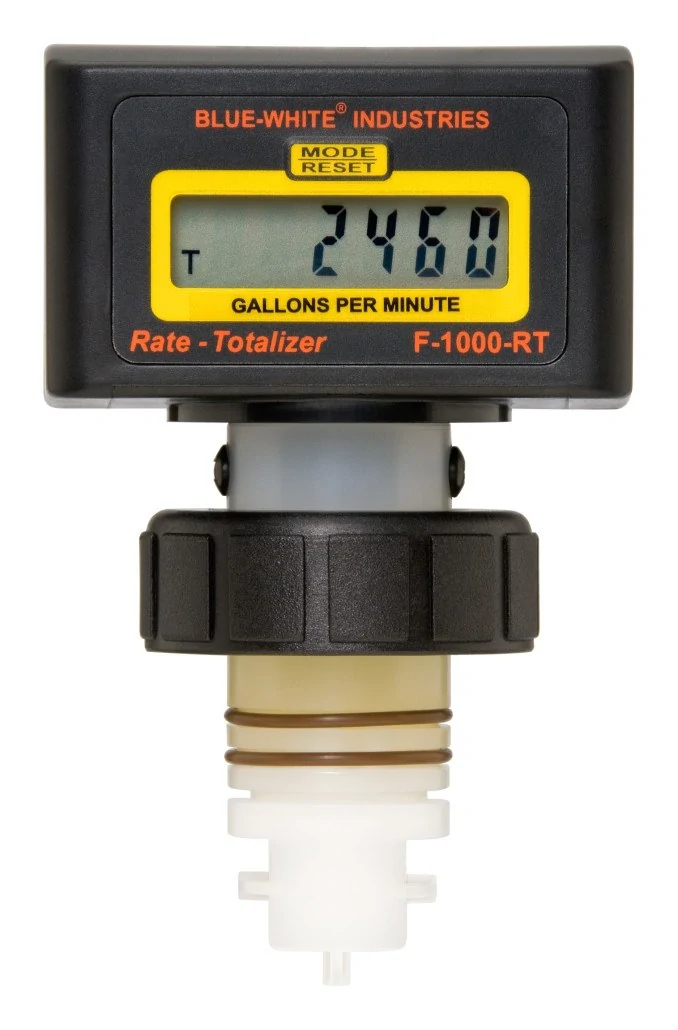

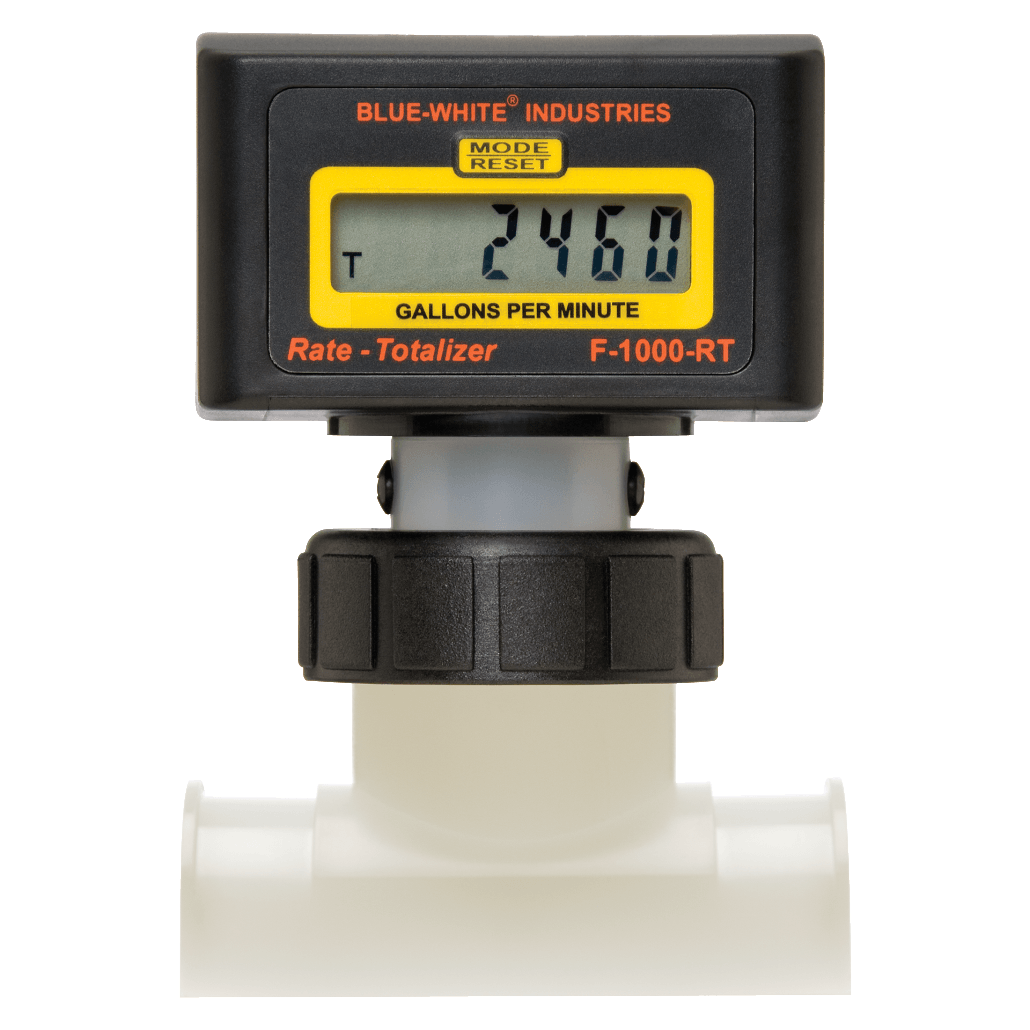

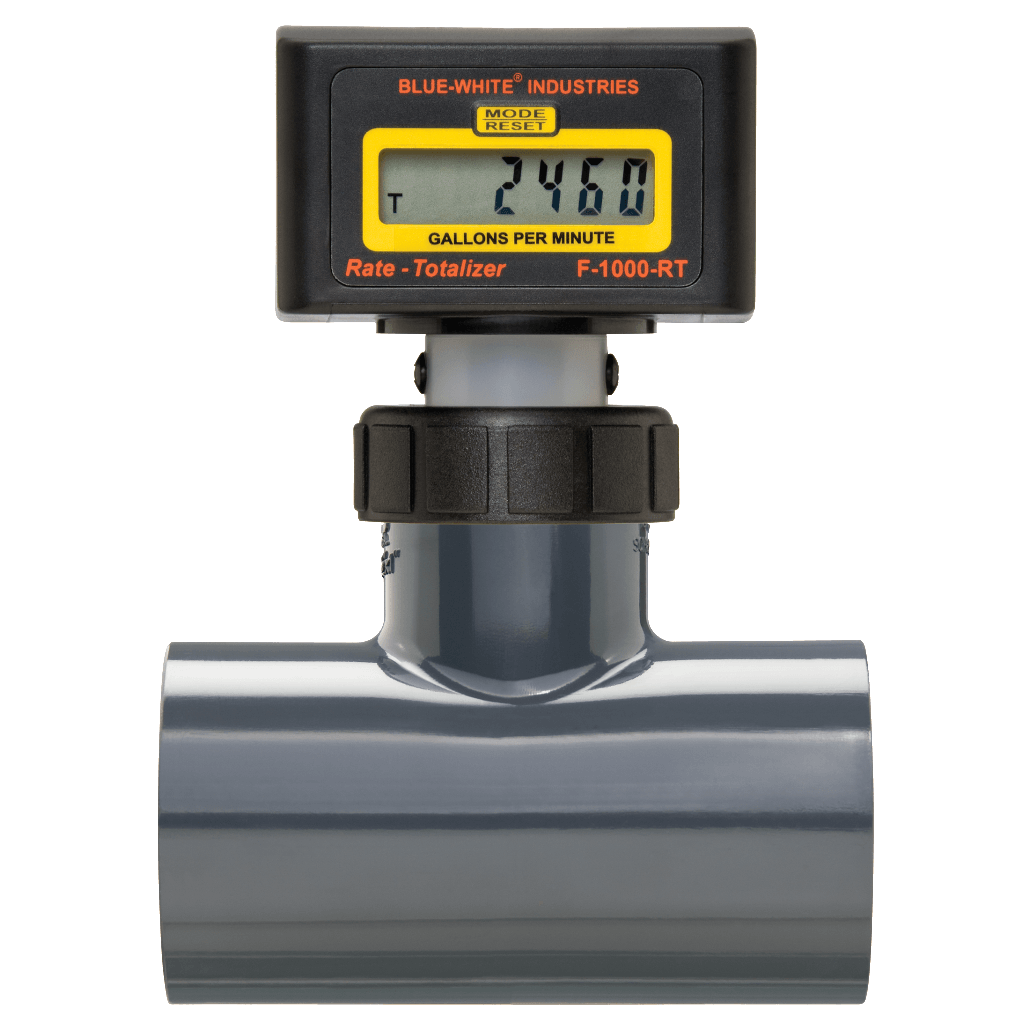

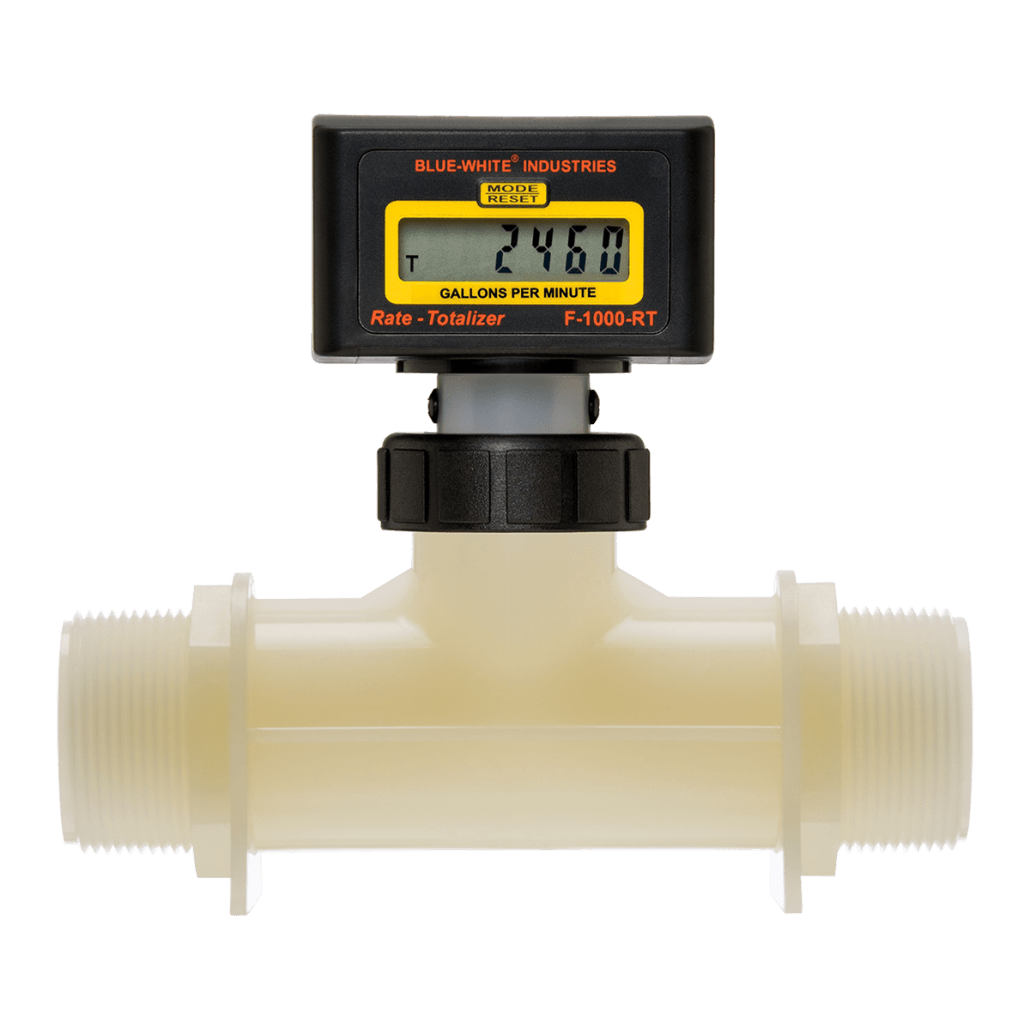

F-1000RT DIGITAL PADDLEWHEEL FLOWMETER (RT = Rate & Totalizer)
Easy to read 6 digit LCD, up to 4 decimal positions.
Flow Range: 0.4 - 8000 GPM (1 - 27000 LPM) Pipe Sizes: ⅜", up to 12" Sensor mounted on pipe fitting. Battery operated.
Features & Benefits
Key Features
Display & Interface

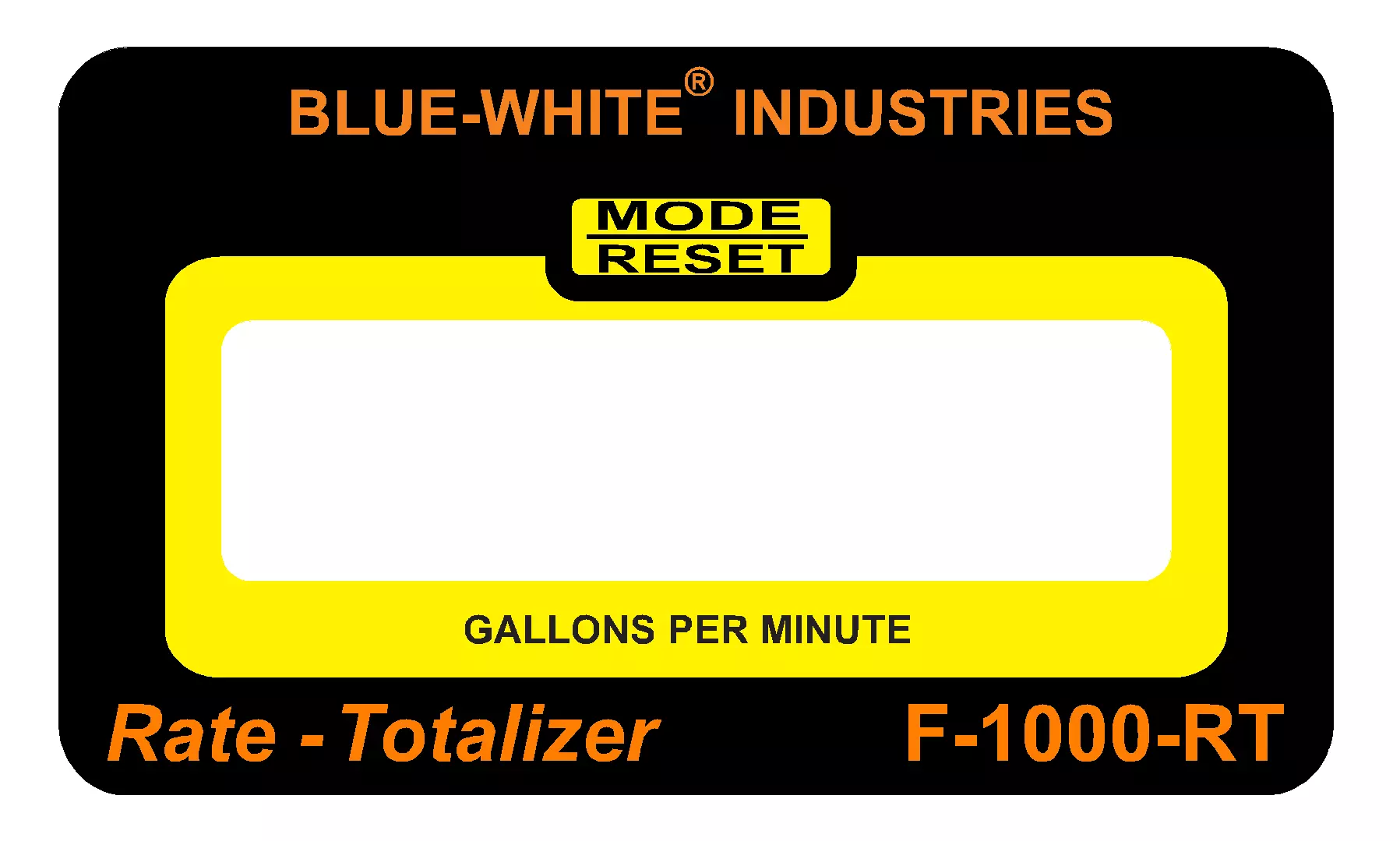

- Easy to read 6 digit LCD display
- Up to 4 decimal positions
- Display update rate: 1.5 seconds
- Total update rate: 0.5 seconds
- Total Reset function can be disabled
- Factory calibrated with no programming required
Installation & Power
- Flexible mounting options
- Vertical or horizontal installation
- Standard models include pipe fitting
- Battery operated (2 AAA batteries included)
Environmental Protection
- NEMA 4X weather resistant enclosure
- LCD display not recommended for direct sunlight exposure
Technical Specifications
| Parameter | Value |
|---|---|
| Display Type | 6 digit LCD |
| Decimal Positions | Up to 4 |
| Rate Update Time | 1.5 seconds |
| Total Update Time | 0.5 seconds |
| Power Source | 2 AAA batteries |
| Enclosure Rating | NEMA 4X |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| BWI-42100008 | RT-100MI-GPM1-P | F-1000-RT 5-50 GPM 1.0" MPT NO PIPE | $708.47 | |
| BWI-42100302 | RT-1000S8-LPM1 | F-1000-RT 2300-23000 LPM 10"IPS S80 PVC | $825.37 | |
| BWI-42100303 | RT-1000S4-GPM1 | F-1000-RT 600-6000 GPM 10"IPS S40 PVC | $825.37 | |
| BWI-42100306 | RT-1000S8-GPM1 | F-1000-RT 600-6000 GPM 10"IPS S80 PVC | $825.37 | |
| BWI-42100511 | RT-100MI-GPM1 | F-1000-RT 5-50 GPM 1.0" MPT | $825.37 | |
| BWI-42100515 | RT-100AT-GPM1 | F-1000-RT 6-60 GPM 1.0" IPS SLIP PVC TEE | $825.37 | |
| BWI-42100516 | RT-100MI-LPM1 | F-1000-RT 20-200 LPM 1.0" MPT | $825.37 | |
| BWI-42100520 | RT-100AT-LPM1 | F-1000-RT 25-250 LPM 1.0" SLIP PVC TEE | $825.37 | |
| BWI-42100535 | RT-100MI-M3H1 | F-1000-RT 1.2-12.0 M3/HR 1.0" MPT | $825.37 | |
| BWI-42100597 | RT-100MB-LPM1 | F-1000-RT 20-200 LPM 1"BSPT PP | $825.37 | |
| BWI-42100603 | RT-1000S4-M3H1 | F-1000-RT 135-1350 M3H1 10"IPS S40 PVC | $825.37 | |
| BWI-42100605 | RT-100MI-GPH1 | F-1000-RT 300-3000 GPH 1.0" MPT | $825.37 | |
| BWI-42120002 | RT-1200S8-LPM1 | F-1000-RT 3000-30000 LPM 12"IPS S80 PVC | $825.37 | |
| BWI-42120006 | RT-1200S8-GPM1 | F-1000-RT 800-8000 GPM 12"IPS S80 PVC | $825.37 | |
| BWI-42120007 | RT-1200S4-GPM1 | F-1000-RT 800-8000 GPM 12"IPS S40 PVC | $825.37 |
