F-1000 - Digital Paddlewheel Flow Meters

Product info
F-1000 | F-1000 Digital Paddlewheel Flow Meters
Description
Blue-White's F1000 has a Flow Range between 0.4 - 8000 GPM (1 - 27000 LPM) and Pipe Sizes of 0.38" to 12" - (Sensor mounted on pipe fitting. Battery operated.)
Configuration Model Codes
Base Model
Model
RB | Flow Rate
Availability Call to confirm
Select model  or  search within  this product range
Models are:  In Stock
Ships from PA - FL - OH - TX - OR
Typically ships within [ 0 to 2 ] days
24/7 Sales & Support 484-544-0506
Headline

F-1000 Digital Paddlewheel Flow Meter

  • Acceptable for Vertical or Horizontal installation
Features & Benefits
Key Features
Display & Interface
  • Easy to read 6 digit LCD display
    • Up to 4 decimal positions
    • Display update rate: 1.5 seconds
    • Total update rate: 0.5 seconds
  • Total Reset function can be disabled
  • Factory calibrated with no programming required
Installation & Power
  • Flexible mounting options
    • Vertical or horizontal installation
    • Standard models include pipe fitting
  • Battery operated (2 AAA batteries included)
Environmental Protection
  • NEMA 4X weather resistant enclosure
  • LCD display not recommended for direct sunlight exposure
Technical Specifications
Parameter Value
Display Type 6 digit LCD
Decimal Positions Up to 4
Rate Update Time 1.5 seconds
Total Update Time 0.5 seconds
Power Source 2 AAA batteries
Enclosure Rating NEMA 4X
Dimensional drawings

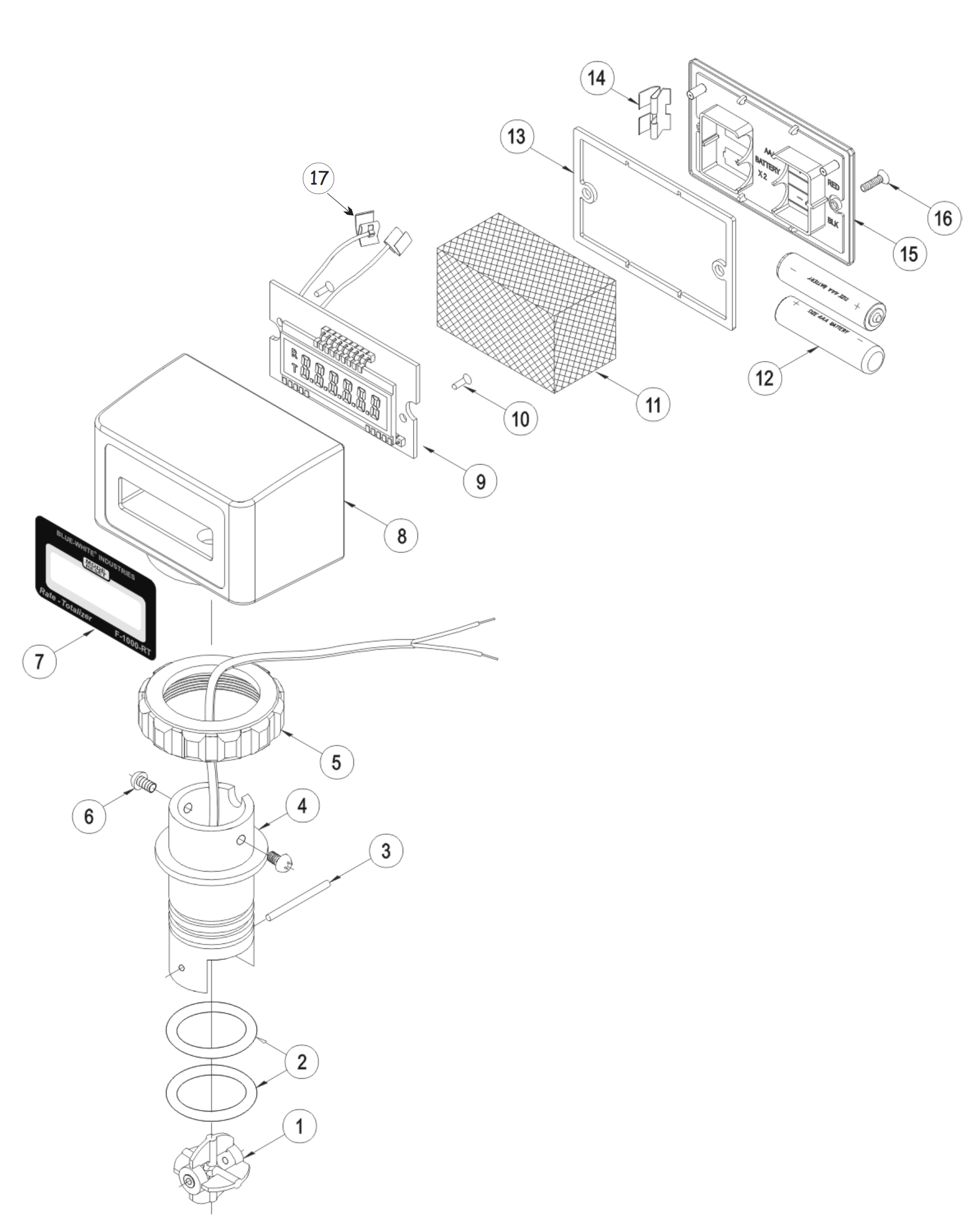

Exploded view
