Headline

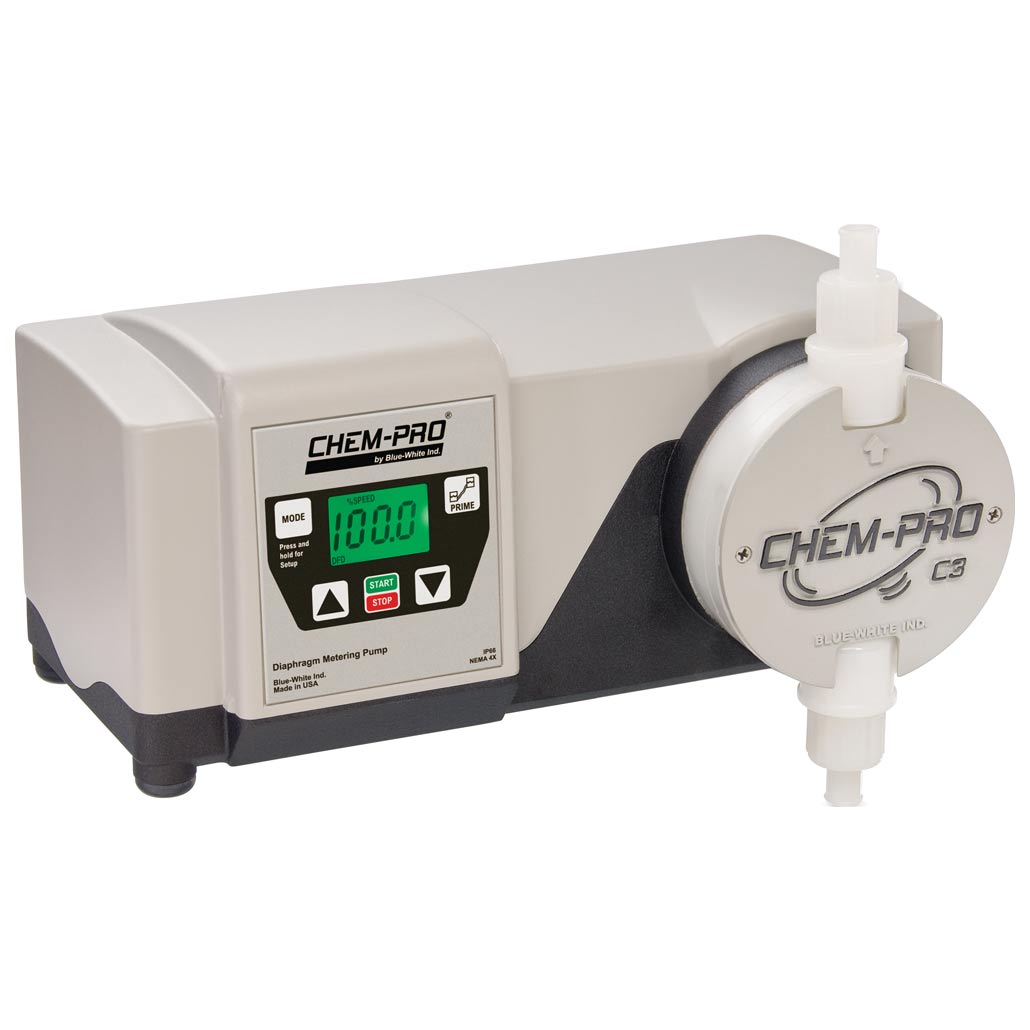

CHEM-FEED® C3 Diaphragm Metering Pump
- Capable of high pressures and high volume outputs.
- Non-loss motion variable speed DC motor is powerful, quiet and energy efficient
Features & Benefits
Key Features & Benefits
Core Benefits
- DiaFlex patented diaphragm design lasts pump lifetime
- Eliminates need for expensive rebuild kits
- Accurate chemical metering up to 150 PSI
- Built-in Diaphragm Failure Detection (DFD) system
- Standard leak detection
- No false triggering
- Monitors pump head for chemical presence
Advanced Interface
- Operator-friendly digital controls
- Backlit LCD display
- Shows motor speed, signals, service status
- UV protective cover for harsh environments
- Comprehensive I/O capabilities
- Inputs: 4-20mA, pulse, remote start/stop
- Outputs: Relay (3 amp), open collector, 4-20mA
- SCADA ready (5-30V DC open collector)
- Compatible with Flow Verification Sensor (FVS) system
- Integrated alarm relay monitoring
- DFD and FVS system monitoring
Technical Specifications
| Feature | Specification |
|---|---|
| Warranty | 2 Year |
| Turndown Ratio | 100:1 |
| Enclosure Rating | NEMA 4X (IP66) |
| Output Loop | 5-30V DC |
| Relay Rating | 3 amp |
Design Features
- Wash-down capable enclosure
- Chemically resistant powder coating
- Large PVDF, Ceramic components
- Double ball check valves (spring-free)
- Harsh environment protection
- UV-protected display
- Chemical-resistant construction
Dimensional drawings
