Headline

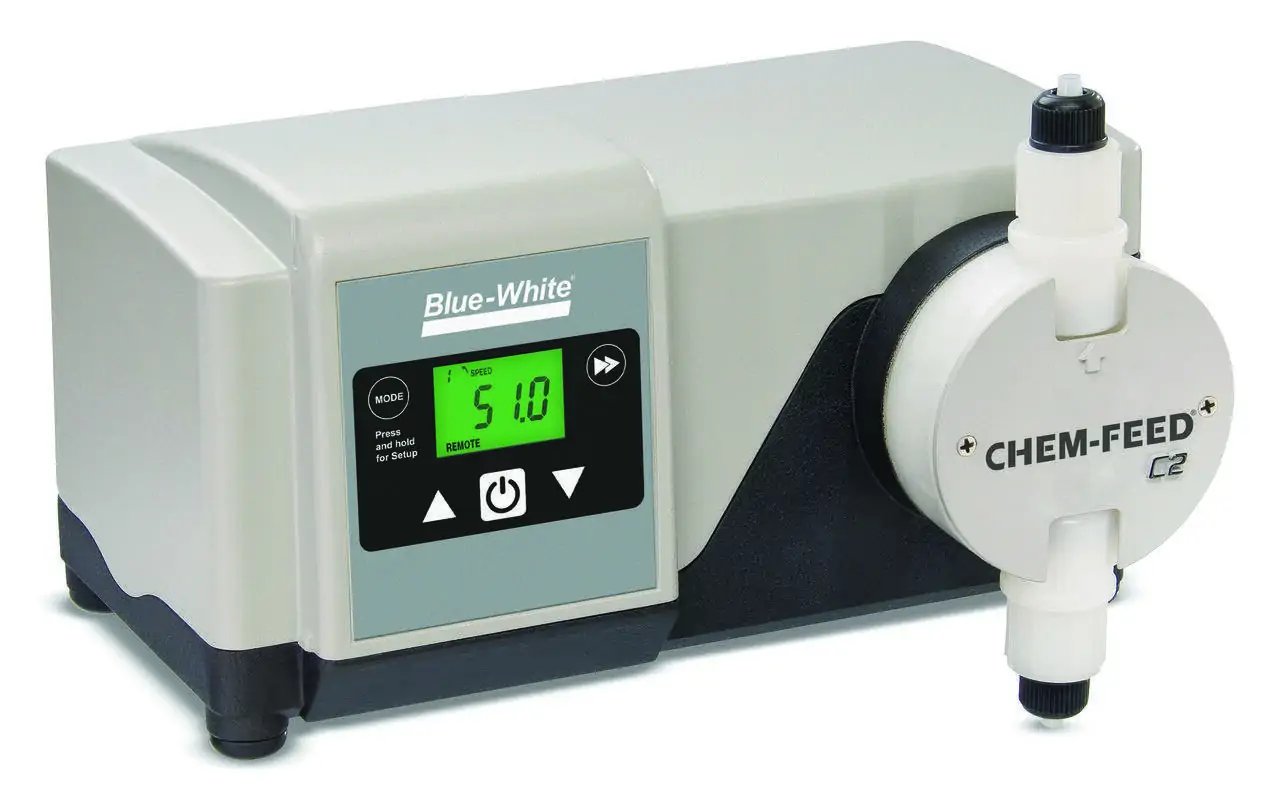

CHEM-FEED® C2V Diaphragm Metering Pump
- Capable of high pressures and high volume outputs.
- Non-loss motion variable speed DC motor is powerful, quiet and energy efficient
Features & Benefits
Key Features & Benefits
Patented DiaFlex Technology
- Long-lasting diaphragm design eliminates need for expensive rebuild kits
- Built-in Diaphragm Failure Detection (DFD) leak detection system
- Accurate chemical metering up to 175 PSI
Advanced Control Interface
- Operator-friendly digital controls with backlit LCD display
- Displays motor speed, input signals, service, and alarm status
- Compatible with Flow Verification Sensor (FVS) system
Communication Capabilities
- Signal Inputs: 4-20mA, pulse inputs, Remote start/stop
- Signal Outputs: Relay (3 amp), open collector, 4-20mA (optional)
- SCADA integration with 5-30V DC open collector output
- Alarm relay monitoring for DFD and FVS systems
Robust Design Features
- 2 Year Warranty coverage
- 100:1 turndown ratio
- NEMA 4X (IP66) wash-down enclosure
- Chemically resistant powder coating
- Large PVDF, Ceramic, double ball check valves
- No metal springs in valve design
Safety & Protection
- DFD system detects diaphragm rupture without false triggering
- UV-protective display cover for harsh environments
- Chemical detection in pump head
- Comprehensive alarm monitoring system
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Pressure | 175 PSI |
| Turndown Ratio | 100:1 |
| Protection Rating | NEMA 4X (IP66) |
| Relay Output | 3 amp |
| DC Output Range | 5-30V |
| Warranty | 2 Years |
Dimensional drawings
