Headline

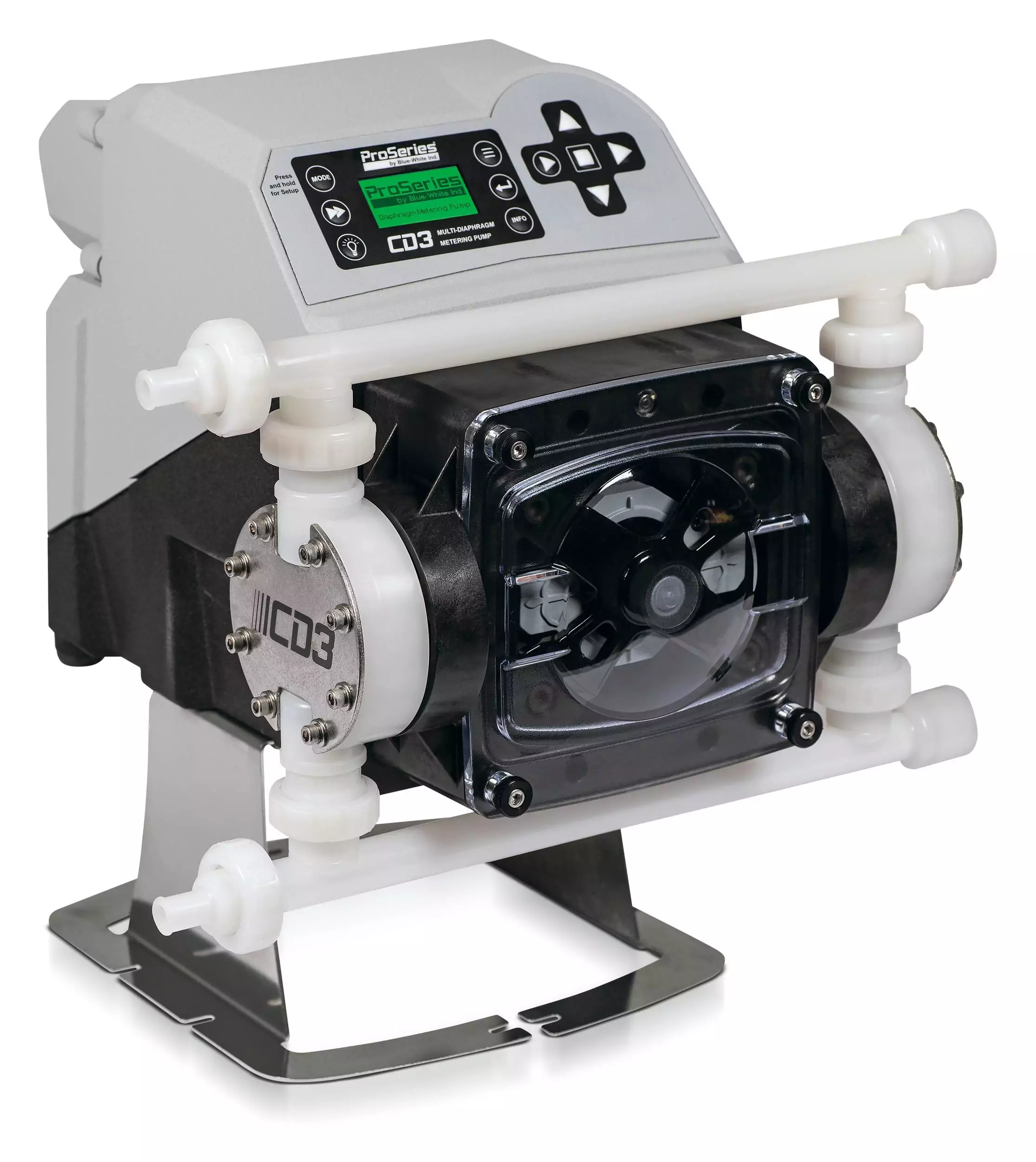

CHEM-FEED® Multi-Diaphragm Metering Pump
Features & Benefits
Key Benefits
- Exclusive Hyperlink Drive technology for smooth chemical feed (Patent Pending)
- Dual Diaphragm with full stroke technology
- No loss of prime
- Ideal for off-gassing chemicals (Peracetic Acid, Sodium Hypochlorite)
- Continuous chemical pumping without tube assemblies
- 3 Year Warranty
- 1,000:1 turndown ratio
Control Interface
- Operator-friendly digital touchpad with menu-driven software
- VGA Graphic multi-color backlit LCD display showing:
- Remote/local control status
- Motor speed
- Output rate
- Input signal values
- Service status
- Alarm status
Technical Specifications
| Input Type | Specification |
|---|---|
| Analog | 4-20mA, 0-10Vdc |
| Digital | Pulse inputs for speed control |
| Control | 0-30 VDC / contact closure remote start/stop |
| Output | Scalable 4-20mA or pulse |
| Relays | One 250V/6A, three 115V/1A contact closures |
| Monitoring | 17 different pump functions (TFD, FVS, etc.) |
Construction Features
- NEMA 4X (IP66) wash-down enclosure
- Chemically resistant powder coating
- Large PVDF, Ceramic components
- Double ball check valves without metal springs
Safety Systems
- Diaphragm Failure Detection (DFD)
- Automatic rupture sensing
- Prevents hazardous chemical spills
- Security features
- Programmable 4-digit password
- Tamper prevention
Optional Accessories
- Mounting Extended Brackets
- Part Number: 72000-380
- Contents: 1 Pair, Stainless Steel
- Hardware: 4 Stainless Steel Screws

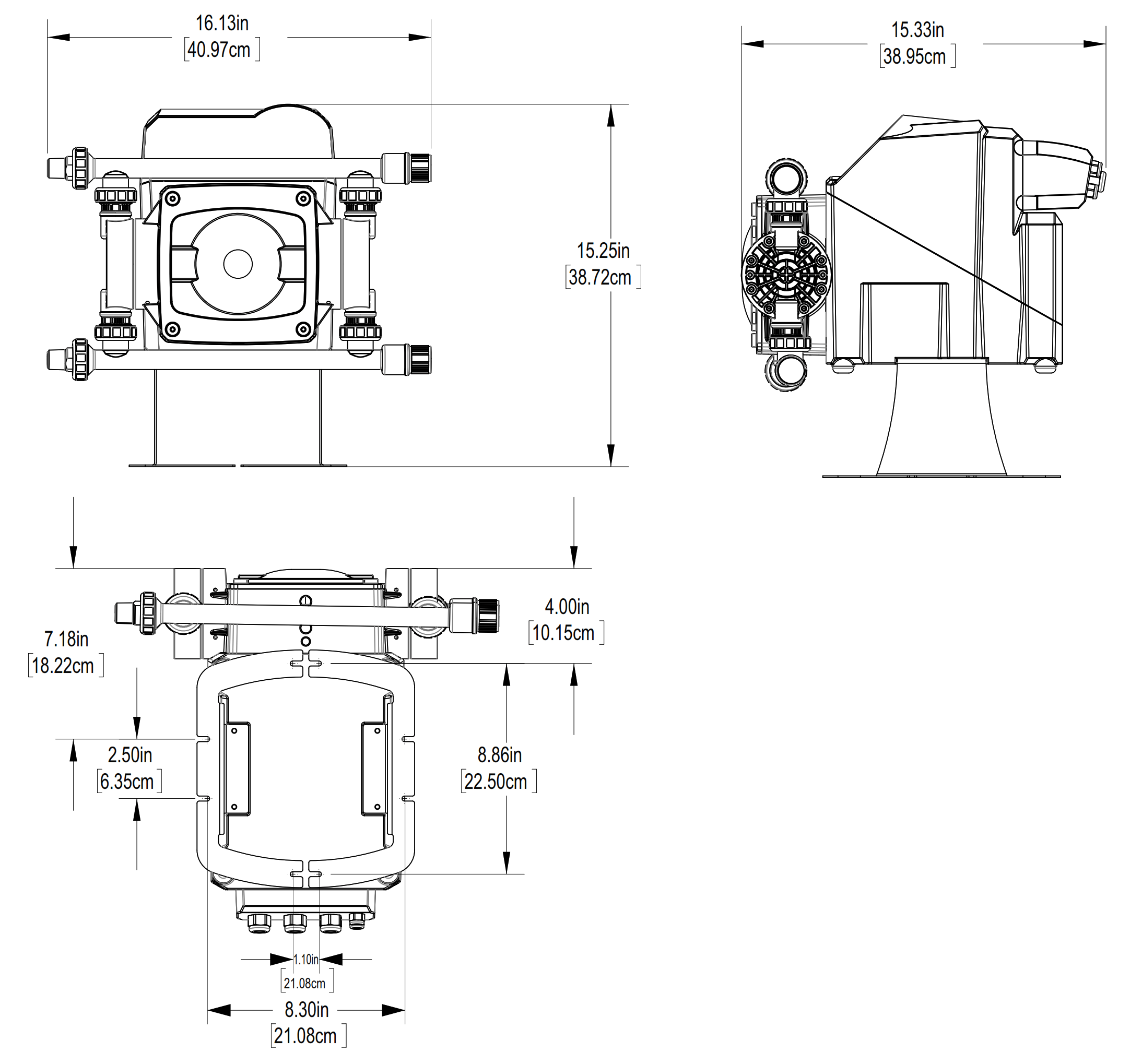

Dimensional drawings
