CHEM-FEED® CD1 Multi-Diaphragm Metering Pump
The CHEM-FEED® CD1 Multi-Diaphragm Metering Pump does not lose prime when pumping chemicals that off-gas, thanks to the exclusive Hyperdrive Technology which creates smooth chemical feed.
Features & Benefits
Core Benefits
- Exclusive Hyperlink Drive technology for smooth chemical feed (Patent Pending)
- Dual Diaphragm with full stroke technology prevents prime loss
- Ideal for off-gassing chemicals (Peracetic Acid, Sodium Hypochlorite)
- Continuous chemical pumping without tube assemblies
- Energy-efficient BLDC motor with overheat protection
Smart Controls & Integration
Inputs
- Remote Start/Stop via non-powered dry contact closure
- Flow Verification Sensors compatibility
- SCADA integration with 4-20mA (CD1V model only)
Outputs
- Alarm relay (250V / 3A)
- Motor On/Off single solid-state
Engineering Excellence
- DiaFlex diaphragm design with lifetime durability (Patented)
- Versatile manifold configuration
- Adjustable suction and discharge ports
- Left and right side positioning options
- Snap-in-place mounting system (Patent pending)
- Wall mount capability
- Floor mount capability
- 3 Year Warranty
Safety & Protection Features
- Diaphragm Failure Detection (DFD)
- Chemical detection in pump head
- No false triggering (Patented)
- Tamper prevention lockout system (Patent pending)
- Protective display shield for harsh environments

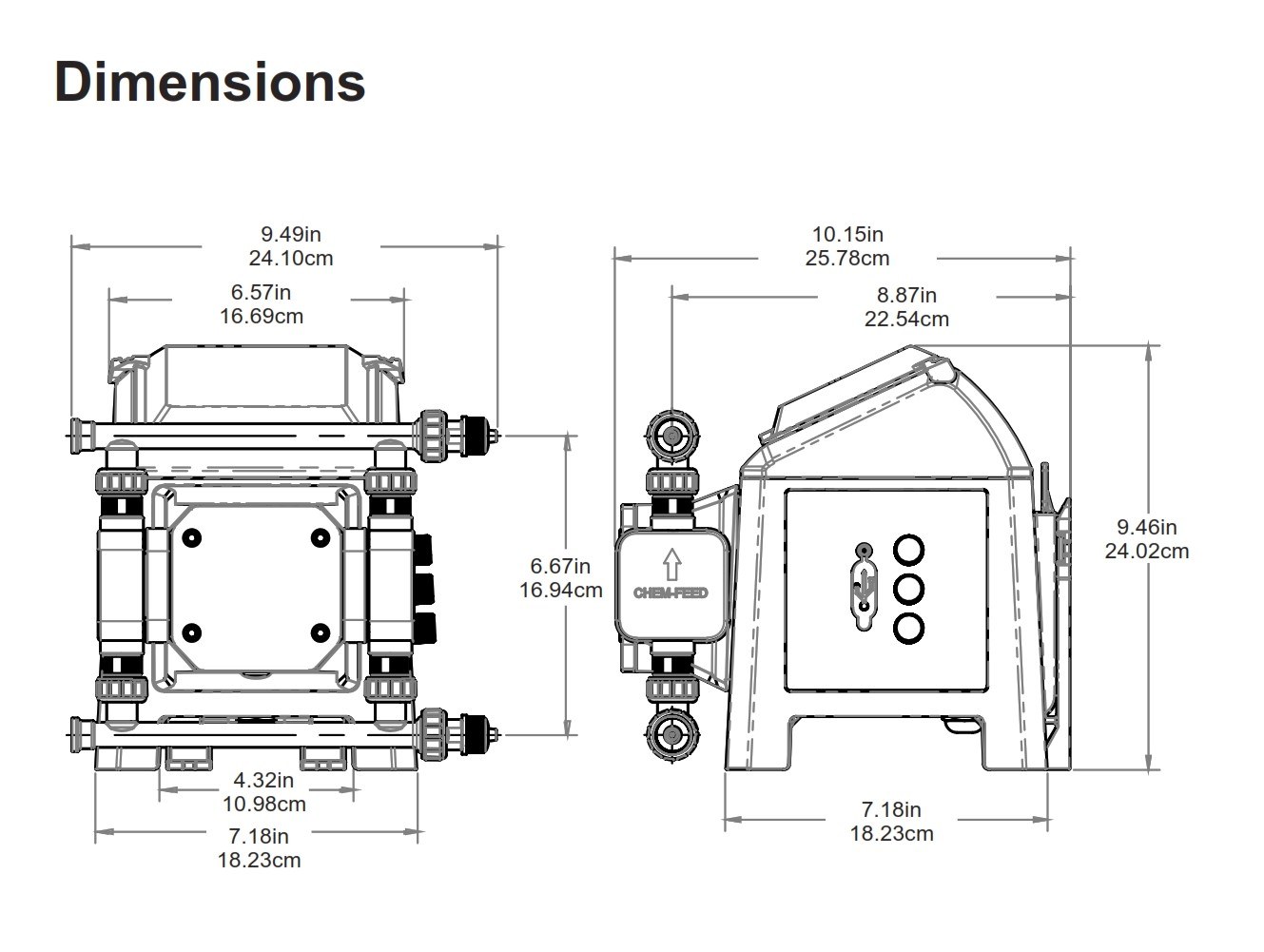

Dimensional drawings
