Pictures may not be actual SKU

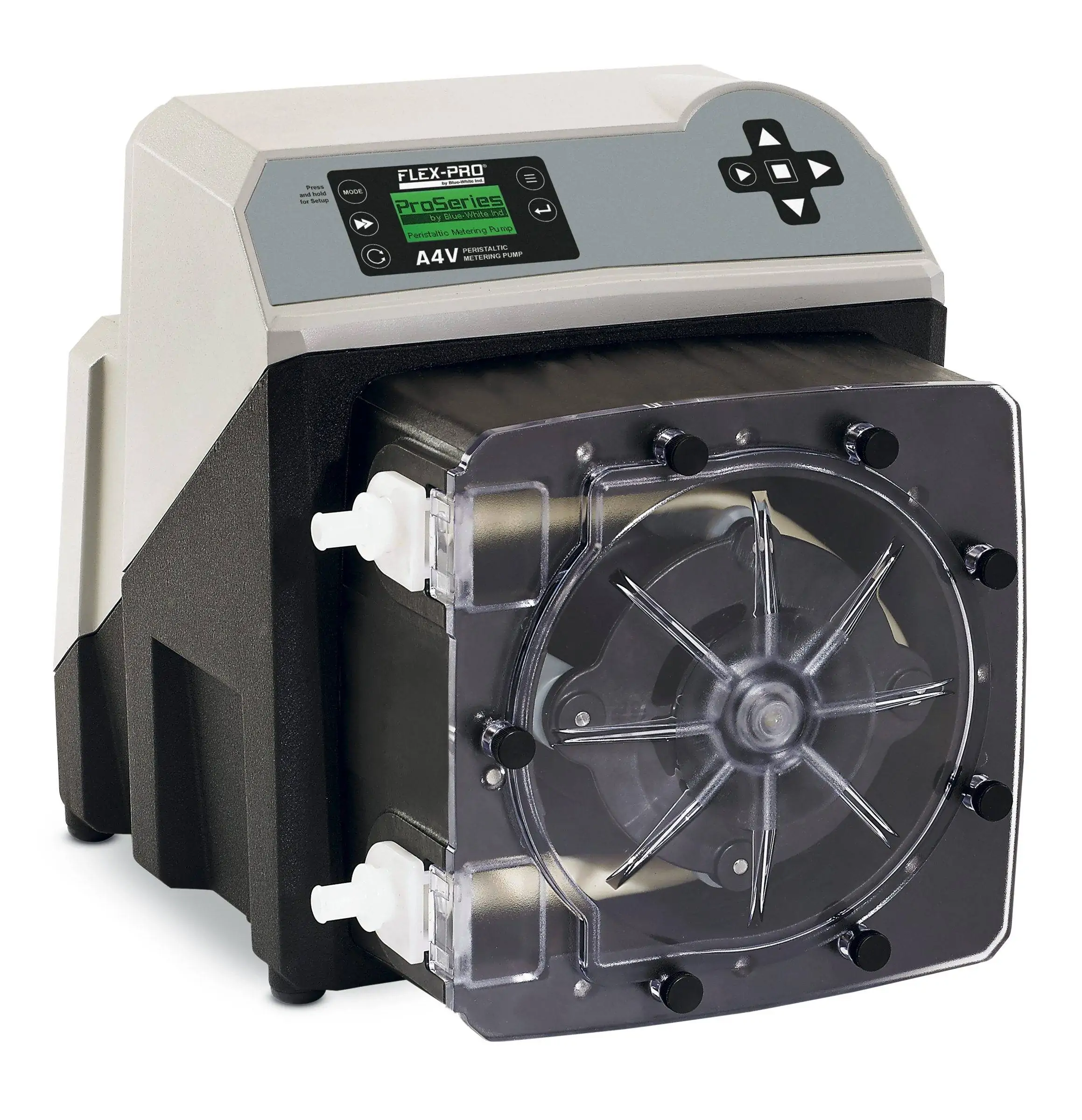

A4V24-MGH | Flex-Pro A4V - US 115V - MNPT - Flex-A-Thane

Product info Show all specs
BWI | Blue-White
A4 | FlexFlo A4 Peristaltic Metering Pumps
A4V | Peristaltic Metering Pumps - 158 GPH - 125 PSI - Remote Analog/Digital Control
BWI-49424029
Blue-White logo
Description
Blue-White's A4V24-MGH peristaltic metering pump includes US 115V power, MNPT connections, and Flex-A-Thane pump tube material. Item # 49424-029 (A)
Key Specs
Pressure Max
65 psi
Feed Max
39.6 GPH
Configuration Model Codes
Base Model
Series
A4 | FlexFlo A4 - Peristaltic Metering Pump
Control Option
V | Automatic: Pulse Input - 4-20mA I/O - Alarm Modes
Power Option
Motor Speed
2 | 125 RPM - Brushless DC Motor
Power Cord
4 | US 115V - NEMA 5/15
Connections
Connections
M | 1/2” Male NPT Fitting, Natural PVDF (Kynar)
Liquid End Option
Tube Material
GH | 39.6 GPH - 65 psi - Flex-A-Thane (Tygothane)
Additional Options
Options
_ | Std: Left facing Pump Head inlet/outlet
Availability Call to confirm
Discontinued
Ships from PA - FL - OH - TX - OR
Call or chat to confirm lead time
24/7 Sales & Support 484-544-0506
Price
Save Compare
$9,846.54 Configured Price
− +
Product details Spot an error? Let us know!
Performance
Feed Max
39.6 GPH
Feed Min
0.01 GPH
Motor Speed Max
125 RPM
Pressure Max
65 psi
Suction Lift
30 ft
Suction Lift
9.14 m
Viscosity Max
12000
Design
Power Connections
US 115V - NEMA 5/15 - Type B
Power Supply
Universal or Dual 115/230V
Chemical Compatibility
Dimensional drawings
Reference Dimensions

30.8W x 36.1H x 47.3D cm

Exploded view
