Headline
FLEXFLO A4 Peristaltic Metering Pump
Peristaltic pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.
Features & Benefits
Key Features & Benefits
Advanced Pumping Technology
- Self-priming against maximum line pressure
- No by-pass valves required
- Cannot vapor lock or lose prime
- 30ft suction lift capability
- Gentle low shear pumping action
- Optional dual channel tube design
- Optimum performance
- Enhanced pressure capability
Safety & Control Systems
- Patented Tube Failure Detection (TFD)
- Detects chemical in pump head
- Prevents hazardous spills
- No false triggering
- Security features
- Programmable 4-digit password
- Tamper prevention
Interface & Communication
- User-friendly digital touch pad
- Menu-driven software
- VGA Graphic multi-color backlit LCD
- Displays status, speed, rates, and alerts
- Input capabilities
- 4-20mA
- 0-10Vdc
- Pulse inputs for remote speed control
- 0-30 VDC/contact closure remote start/stop
- Output features
- Scalable 4-20mA or pulse
- One 250V/6A relay
- Three 115V/1A contact closures
- Monitors up to 17 pump functions
Technical Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 Years |
| Turndown Ratio | 2,500:1 |
| Enclosure Rating | NEMA 4X (IP66) |
Design Features
- Wash-down, chemically resistant powder coated enclosure
- Heavy duty rotor design
- No flexing for increased accuracy
- No metal springs or hinges to corrode
Optional Components
- Mounting Extended Brackets (72000-380)
- 1 Pair, Stainless Steel
- 4 Stainless Steel Screws

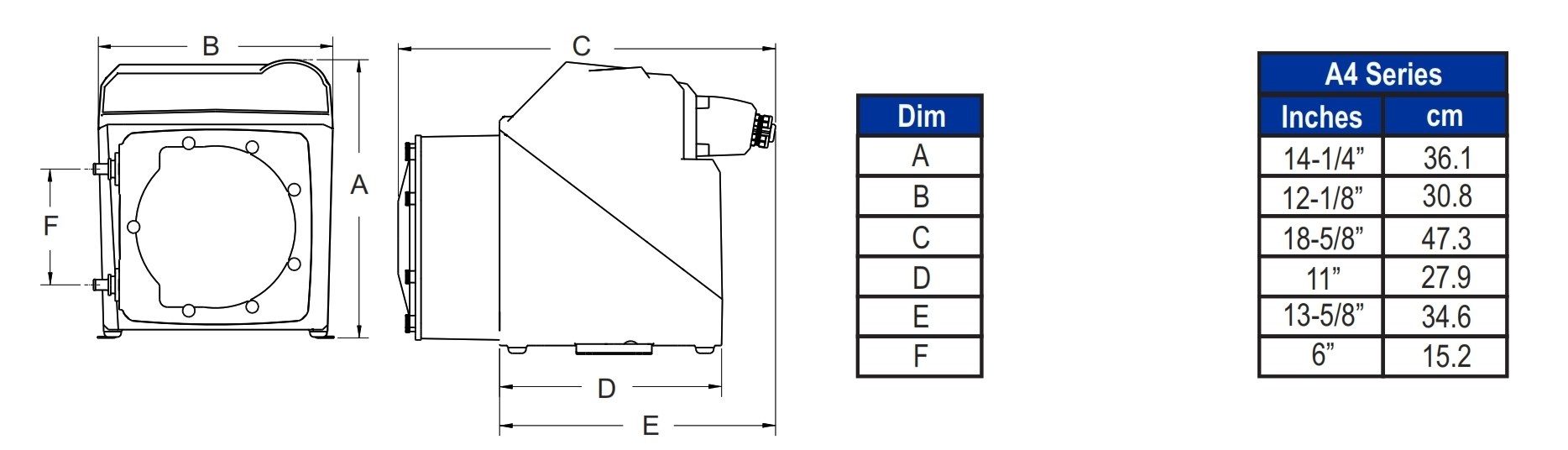

Dimensional drawings

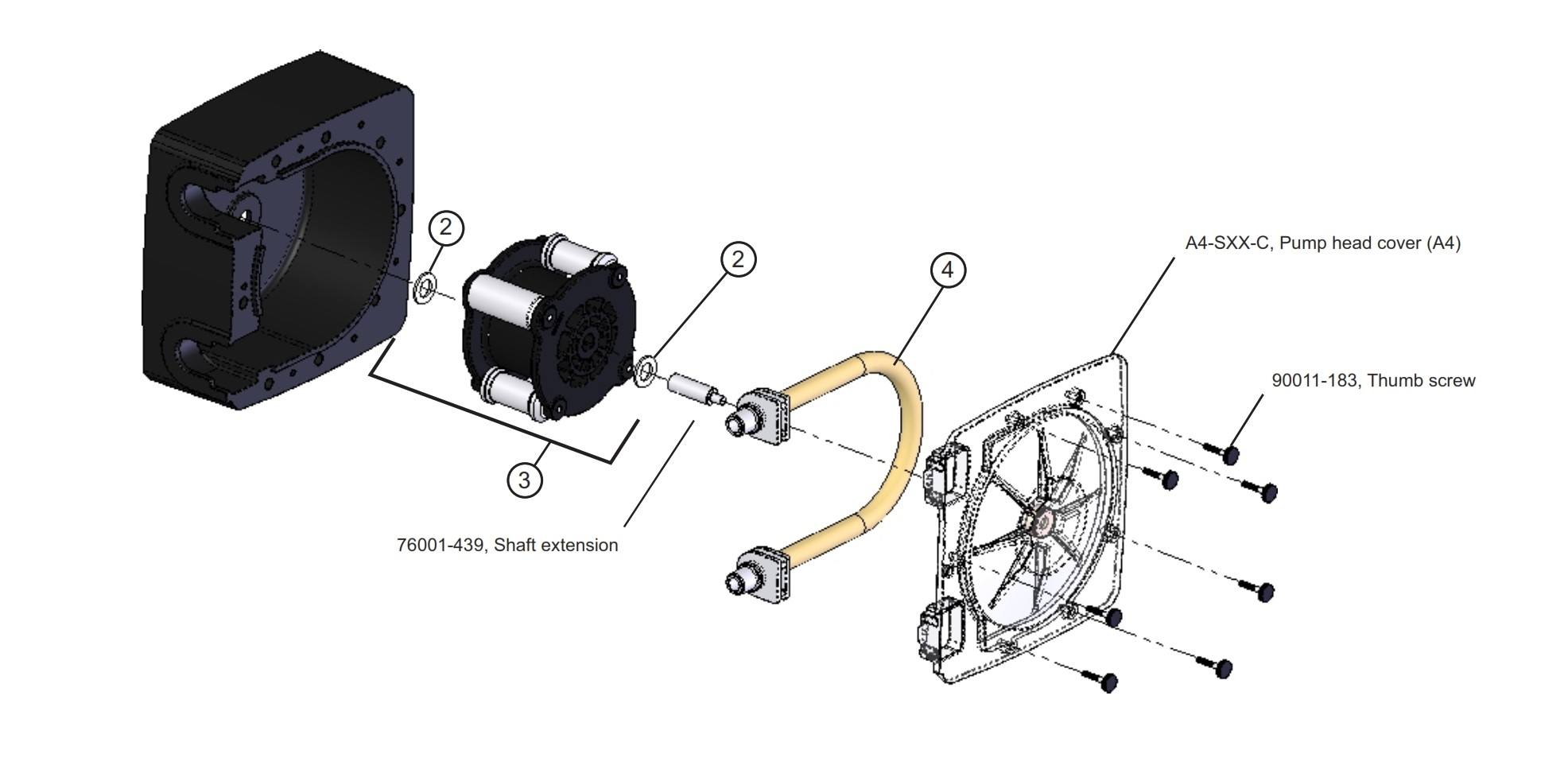

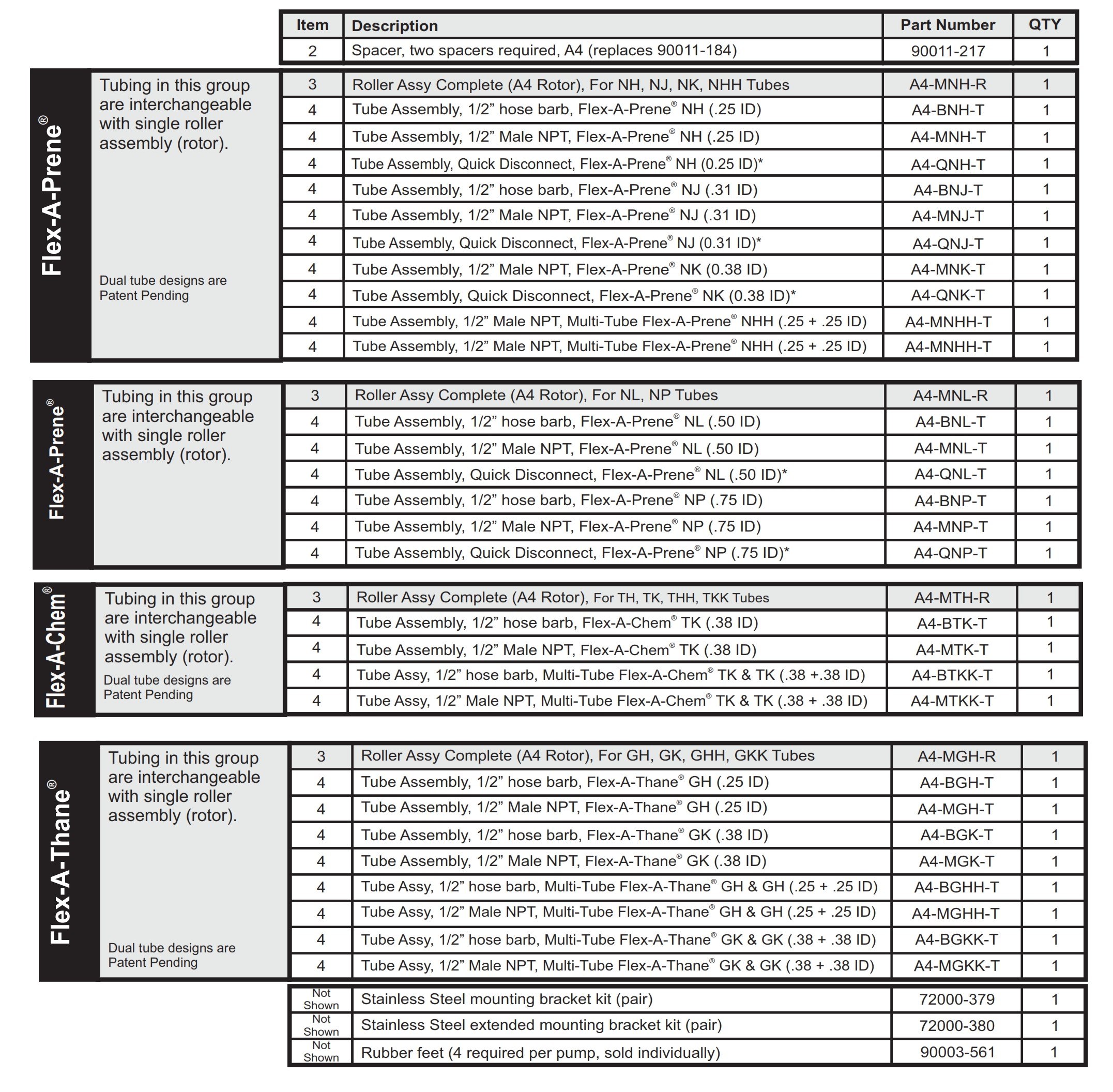

Exploded view
