Headline

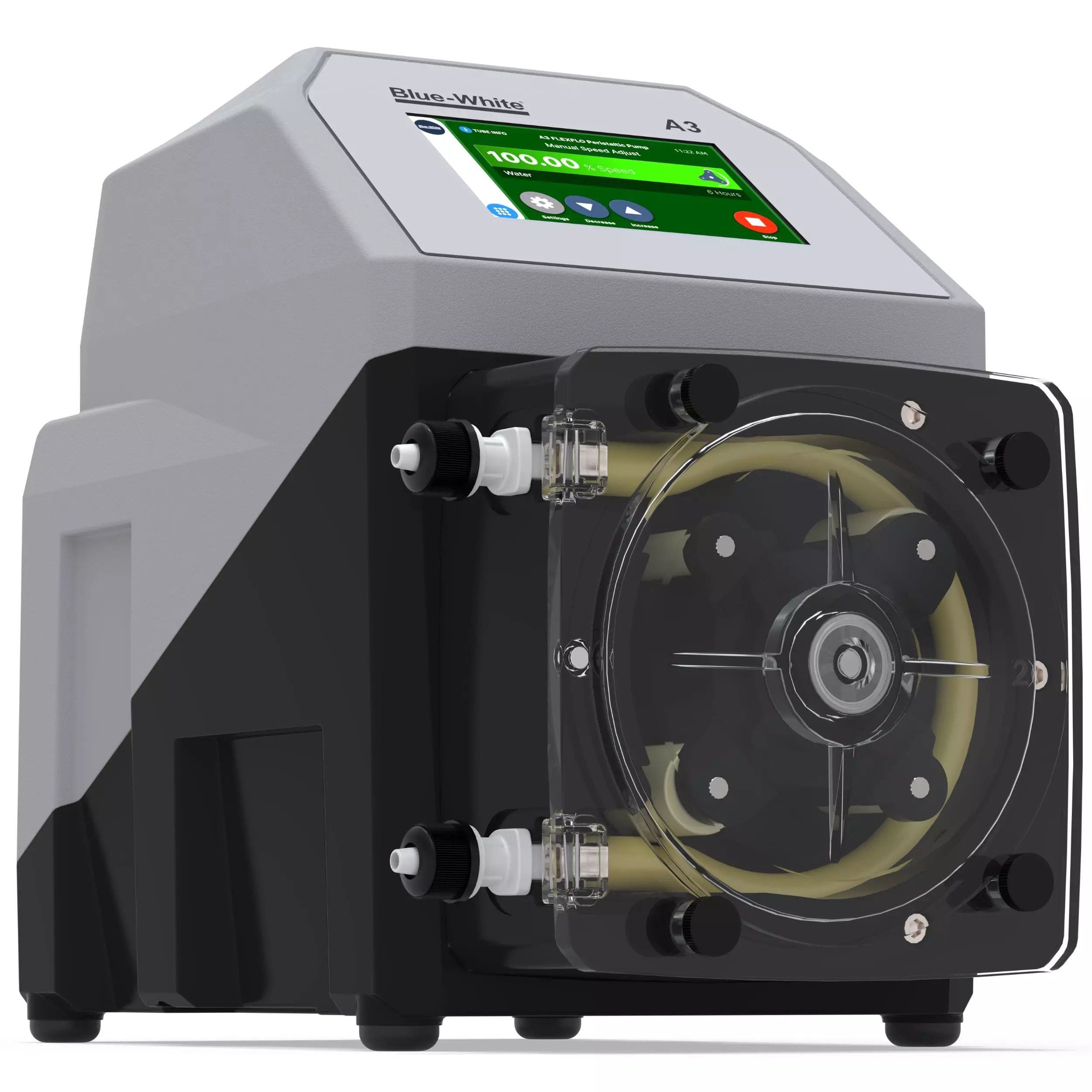

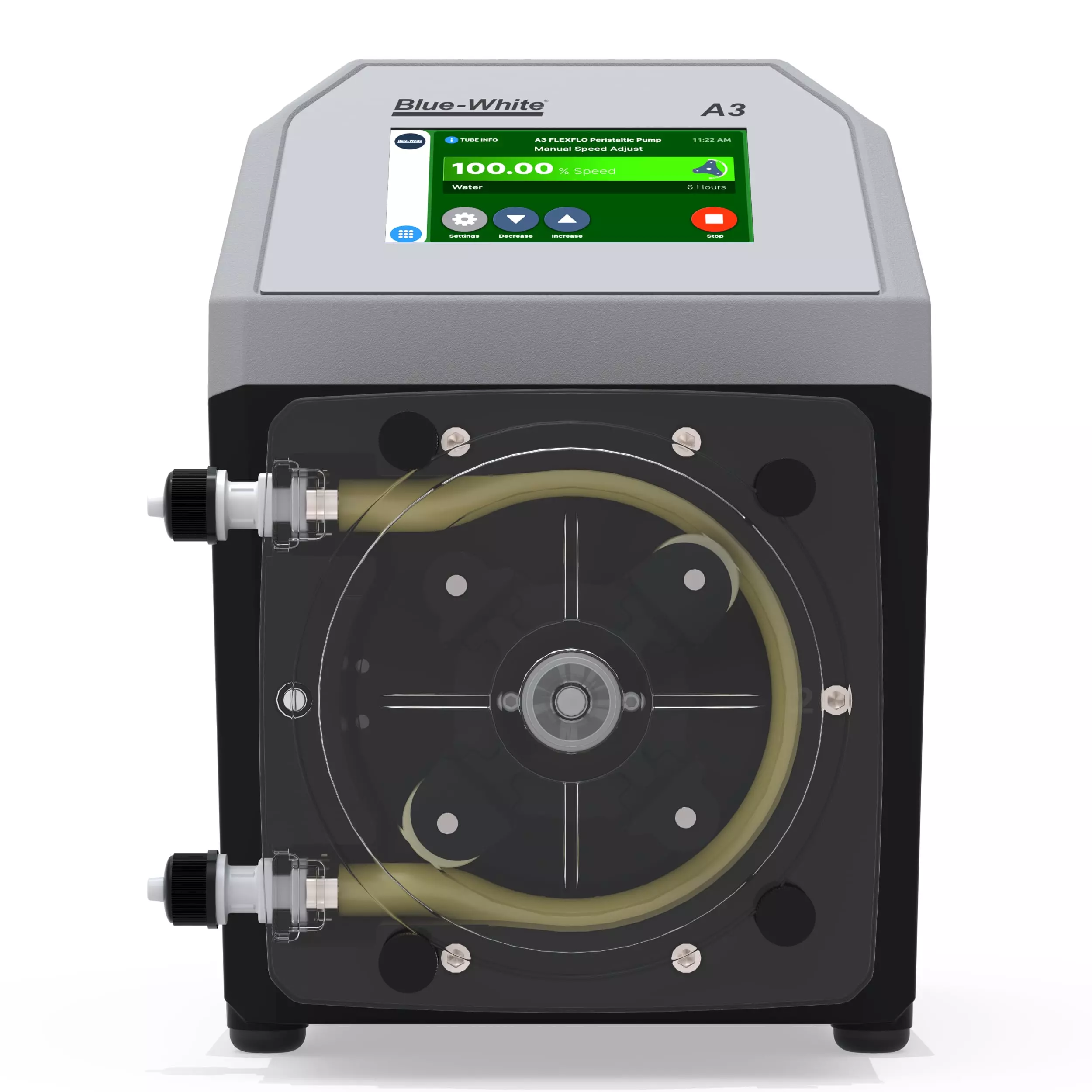

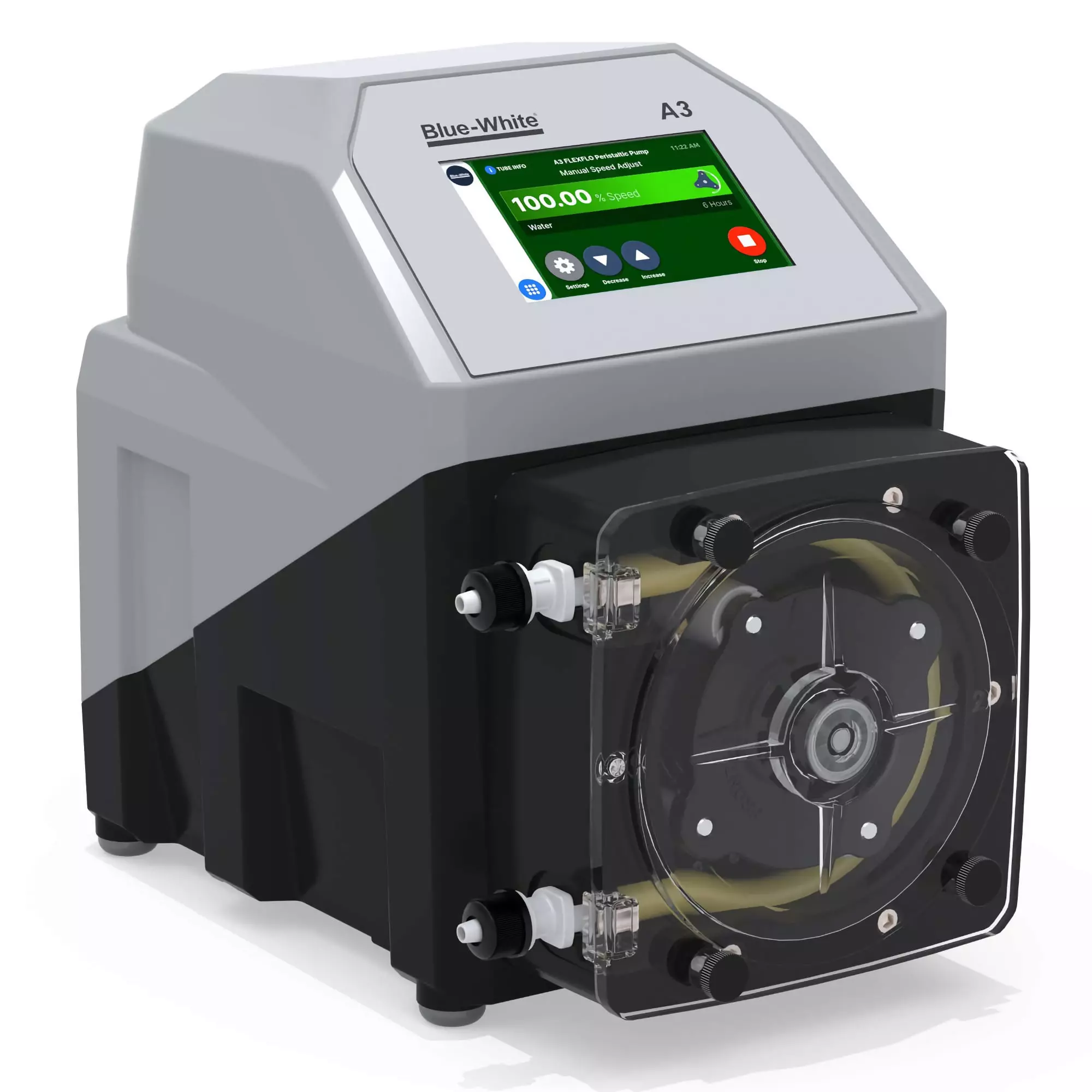

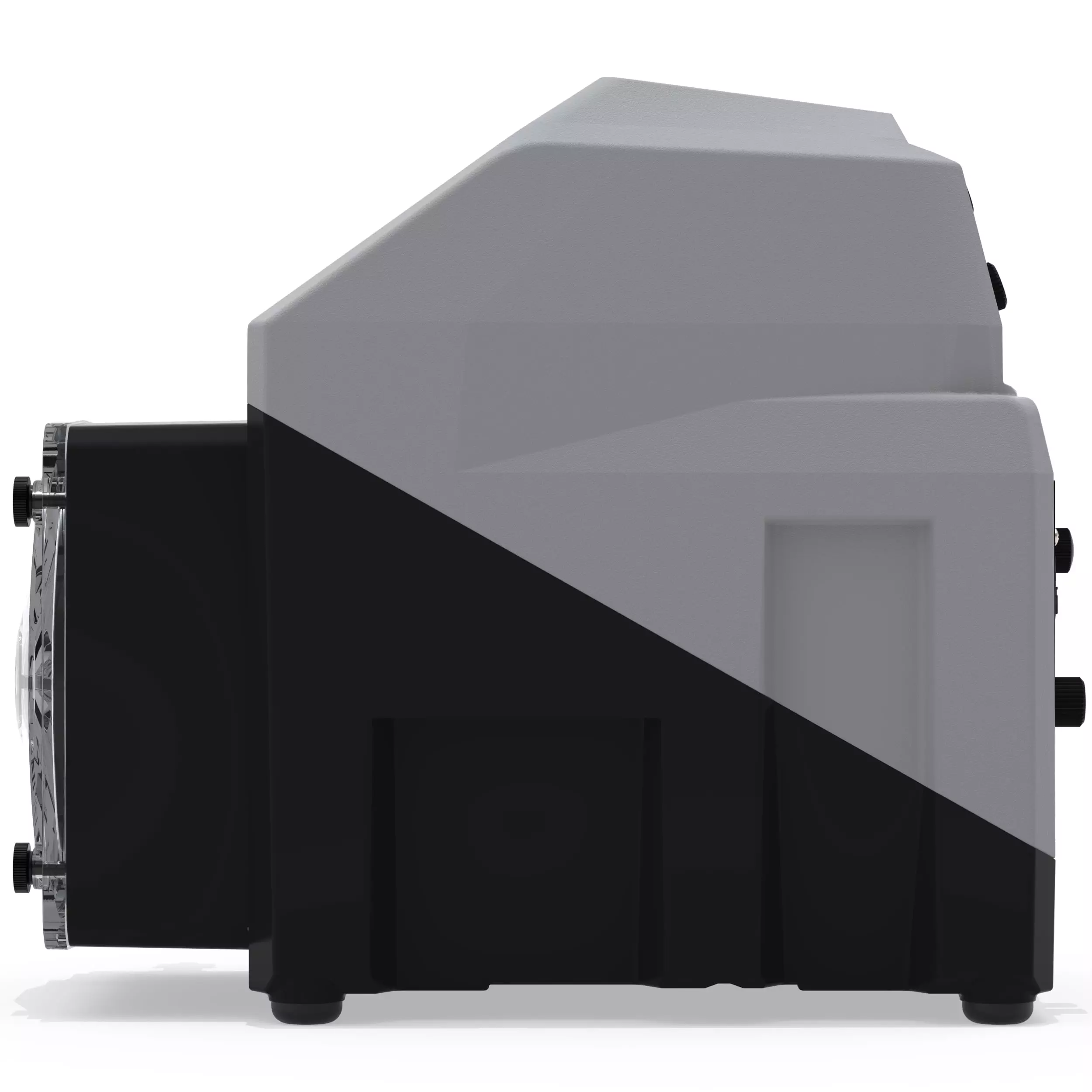

FLEXFLO A3 Peristaltic Metering Pump
A3 peristaltic metering pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.
Features & Benefits
Key Features & Benefits
Core Benefits
- Self-priming operation
- Works against maximum line pressure
- No by-pass valves required
- Cannot vapor lock or lose prime
- 30ft suction lift capability
- Gentle low shear pumping action
- Patented Tube Failure Detection (TFD)
- Detects chemical in pump head
- No false triggering
- Prevents hazardous spills
- Optional dual channel tube design
- Optimized performance
- Enhanced pressure capability
Control Interface
- User-friendly digital touch pad
- Menu-driven software
- VGA Graphic multi-color backlit LCD display showing:
- Remote/local control status
- Motor speed
- Output rate
- Input signal values
- Service status
- Alarm status
Technical Specifications

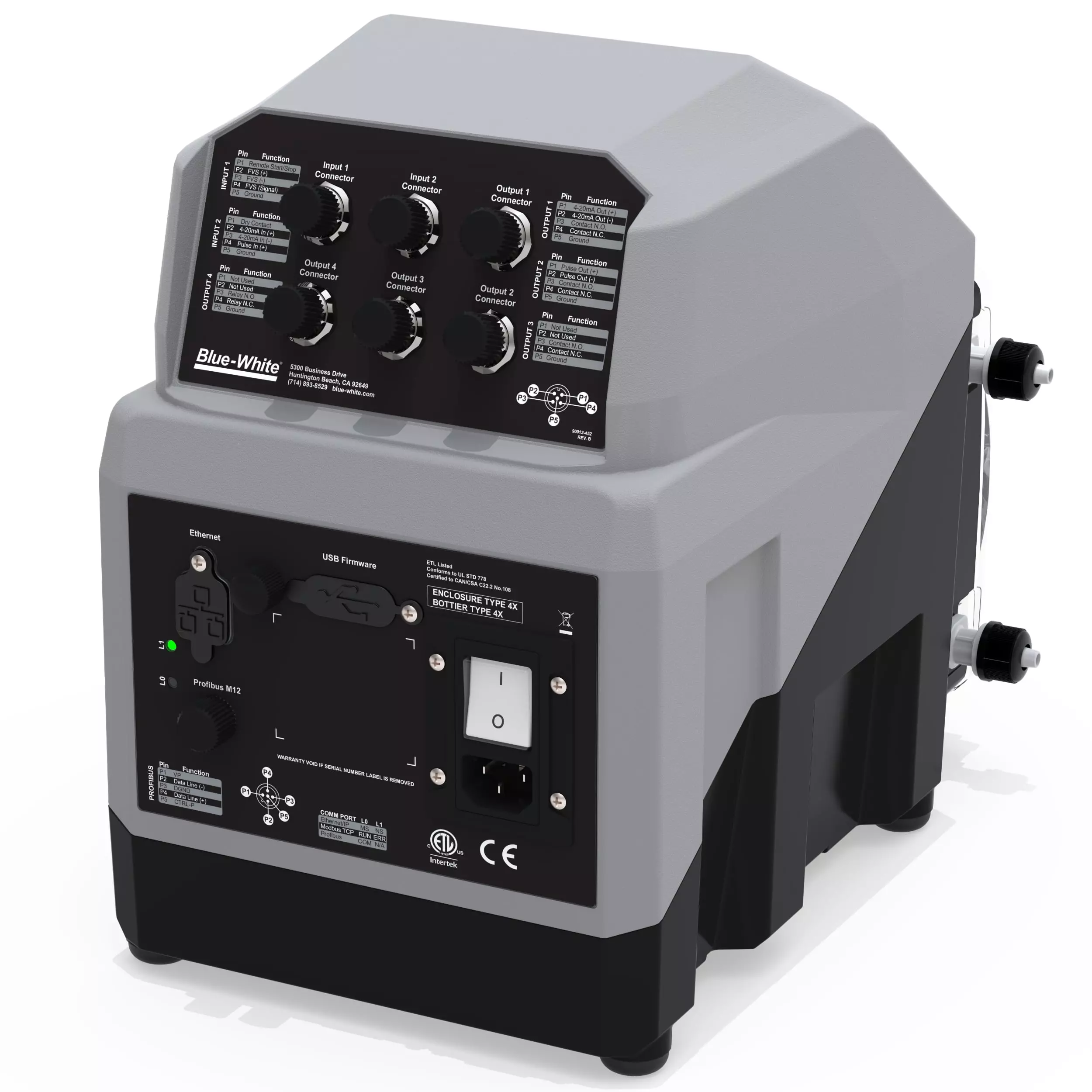

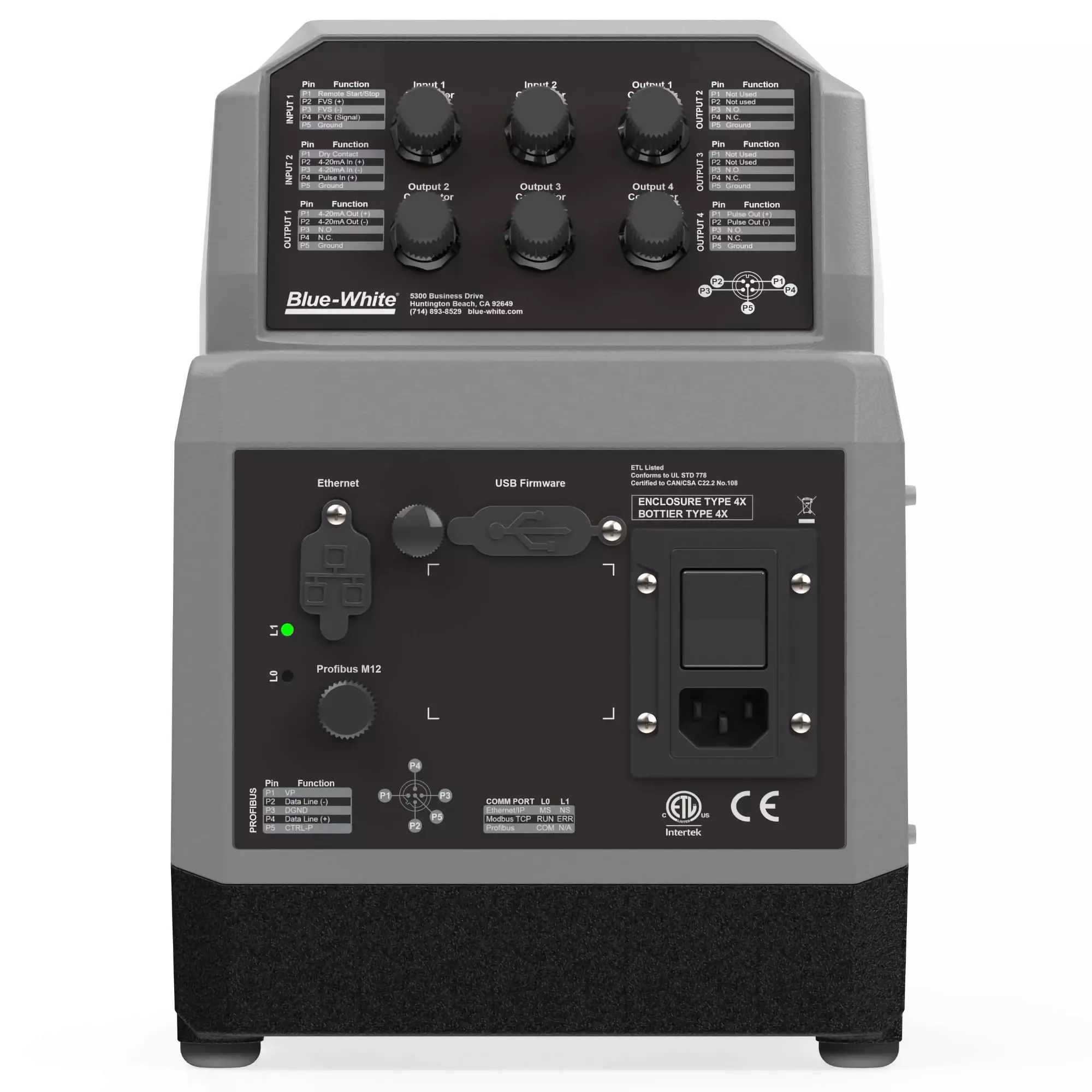

Input/Output Capabilities
| Type | Specification |
|---|---|
| Inputs | 4-20mA, 0-10Vdc, Pulse inputs |
| Remote Control | 0-30 VDC / contact closure |
| Output Signals | Scalable 4-20mA or pulse |
| Relays | 1x 250V/6A, 3x 115V/1A |
| Monitored Functions | Up to 17 different pump functions |
| Turndown Ratio | 2,500:1 |
Design Features
- Heavy duty rotor design
- No flexing for increased accuracy
- No metal springs or hinges to corrode
- NEMA 4X (IP66) enclosure
- Wash-down capable
- Chemically resistant powder coating
- 3 Year Warranty
- Security features:
- Programmable 4-digit password
- Tamper prevention
Optional Components
- Mounting Extended Brackets (72000-380)
- 1 Pair, Stainless Steel
- 4 Stainless Steel Screws
Dimensional drawings

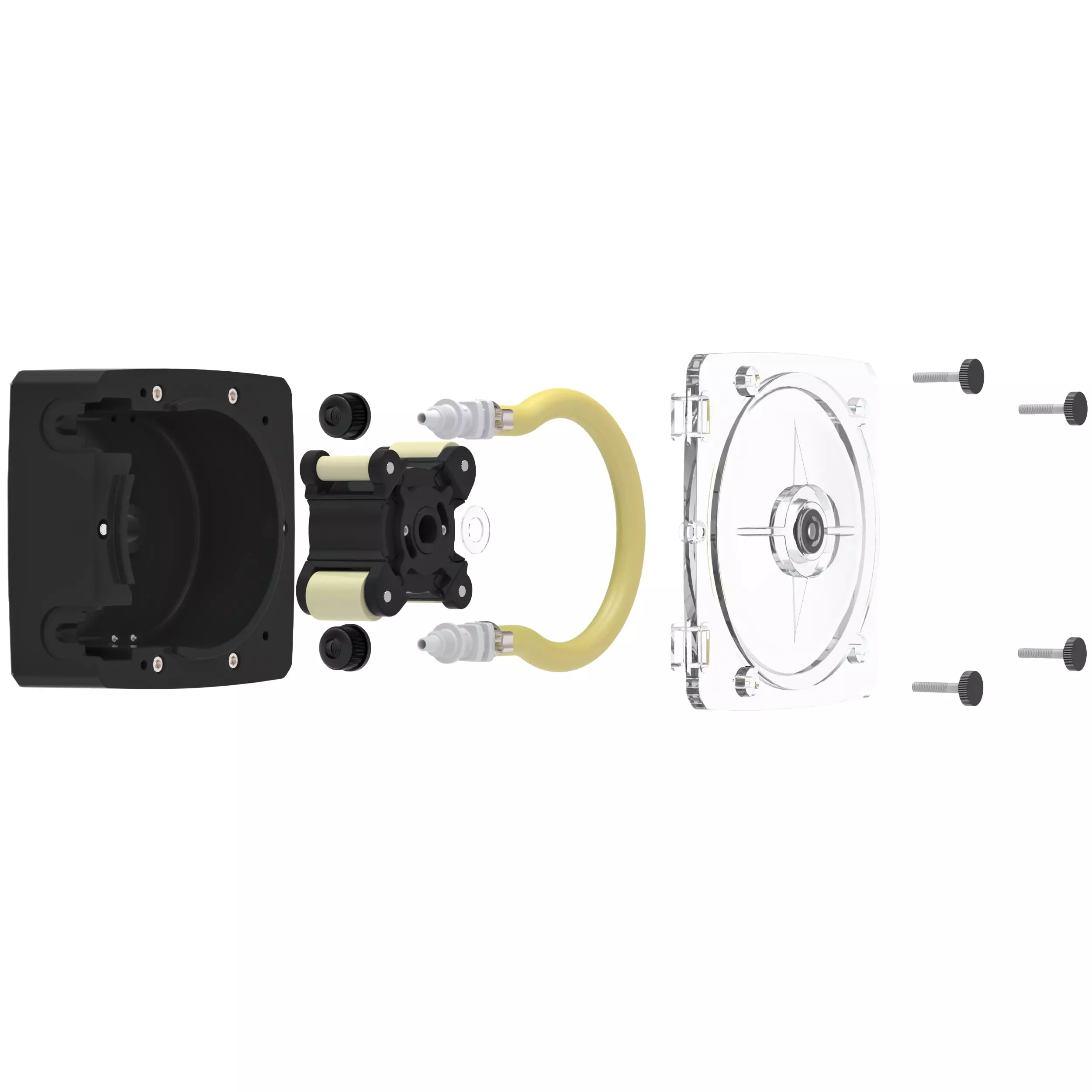

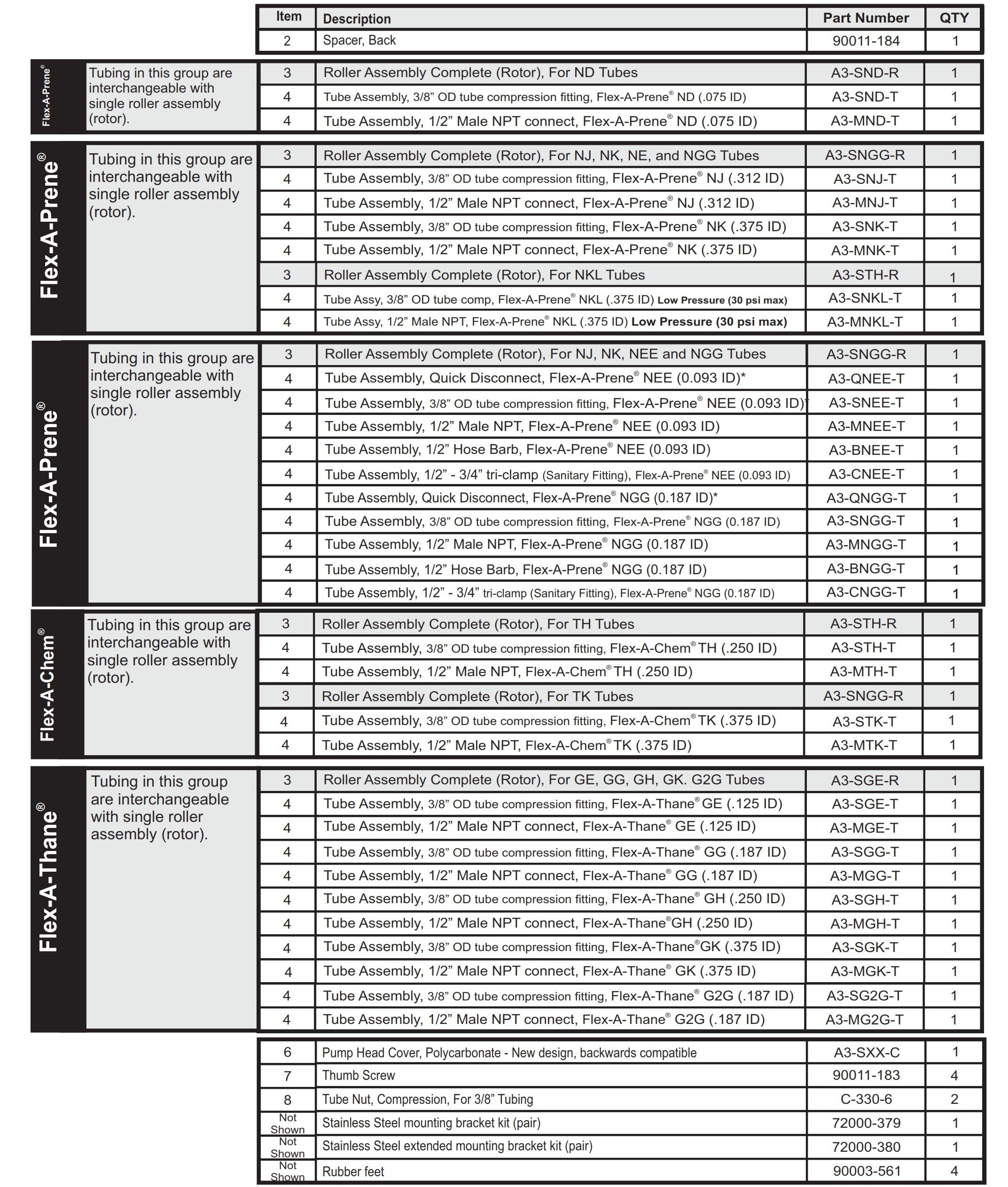

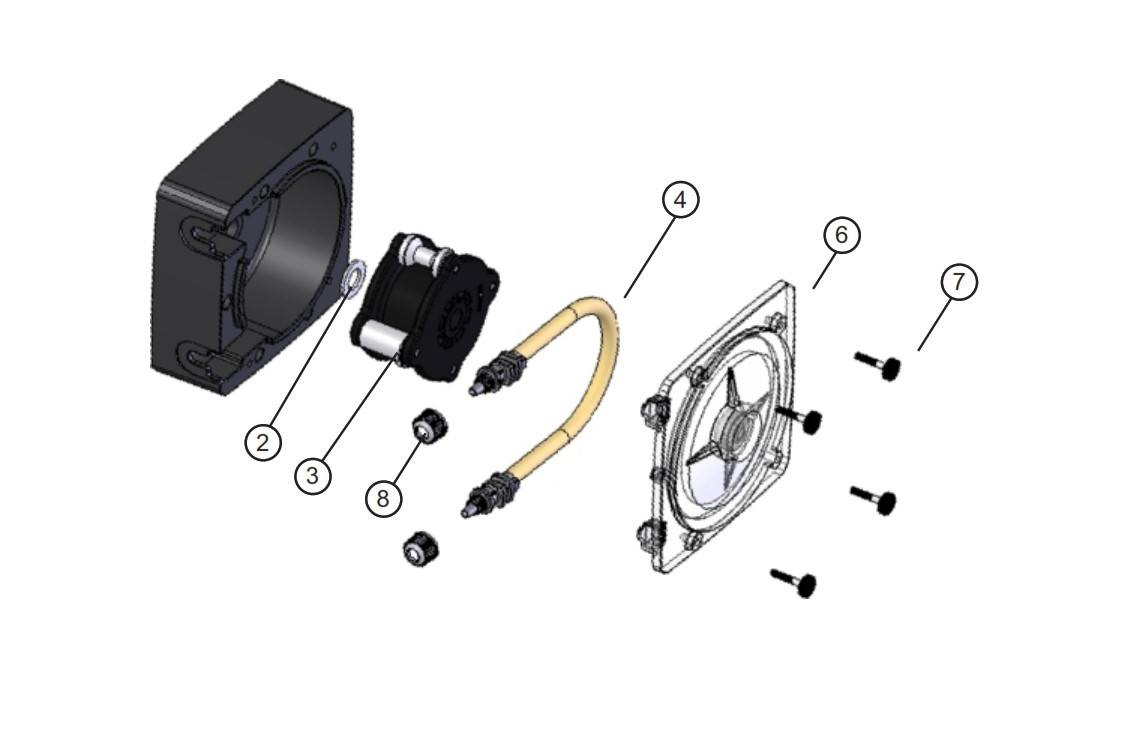

Exploded view
