Headline

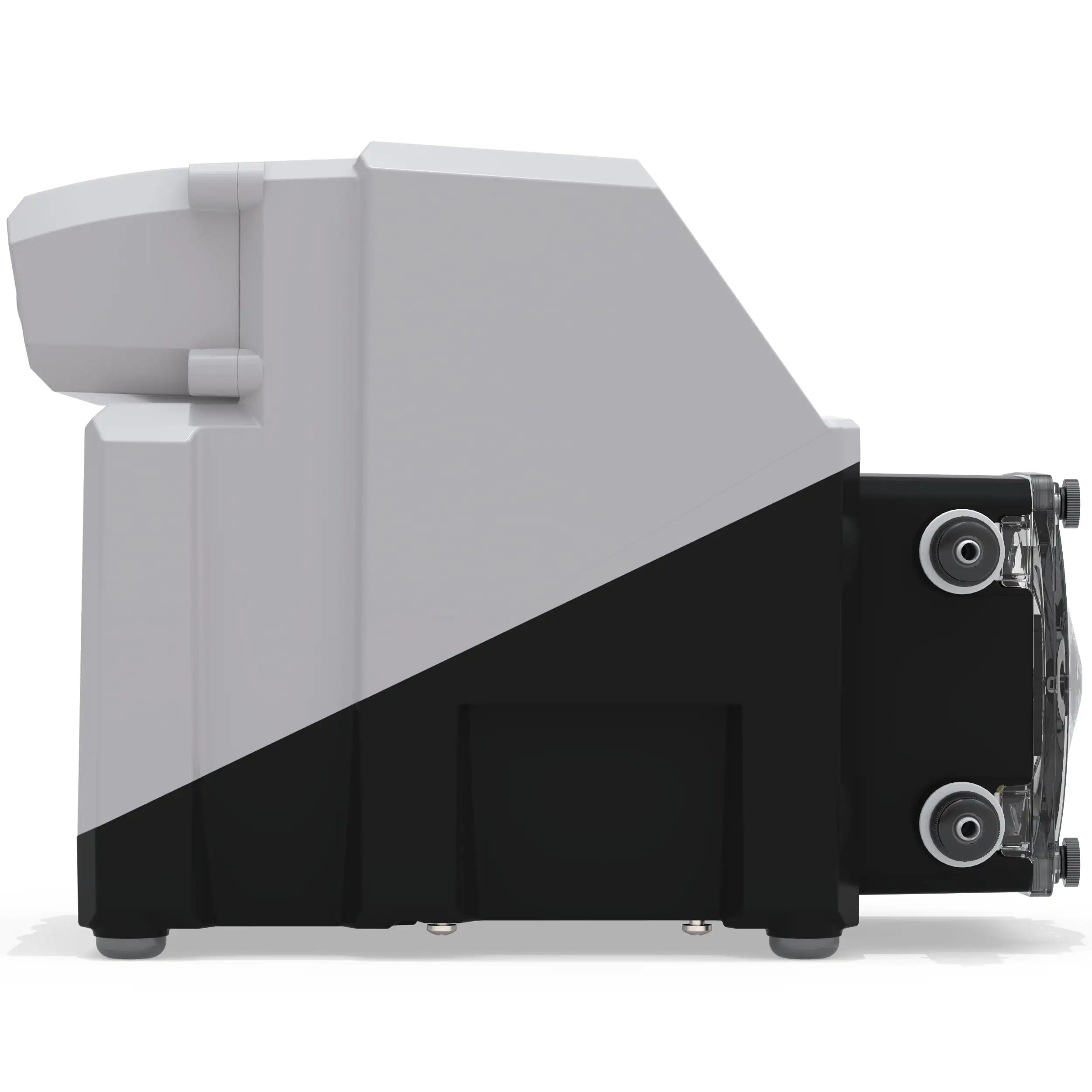

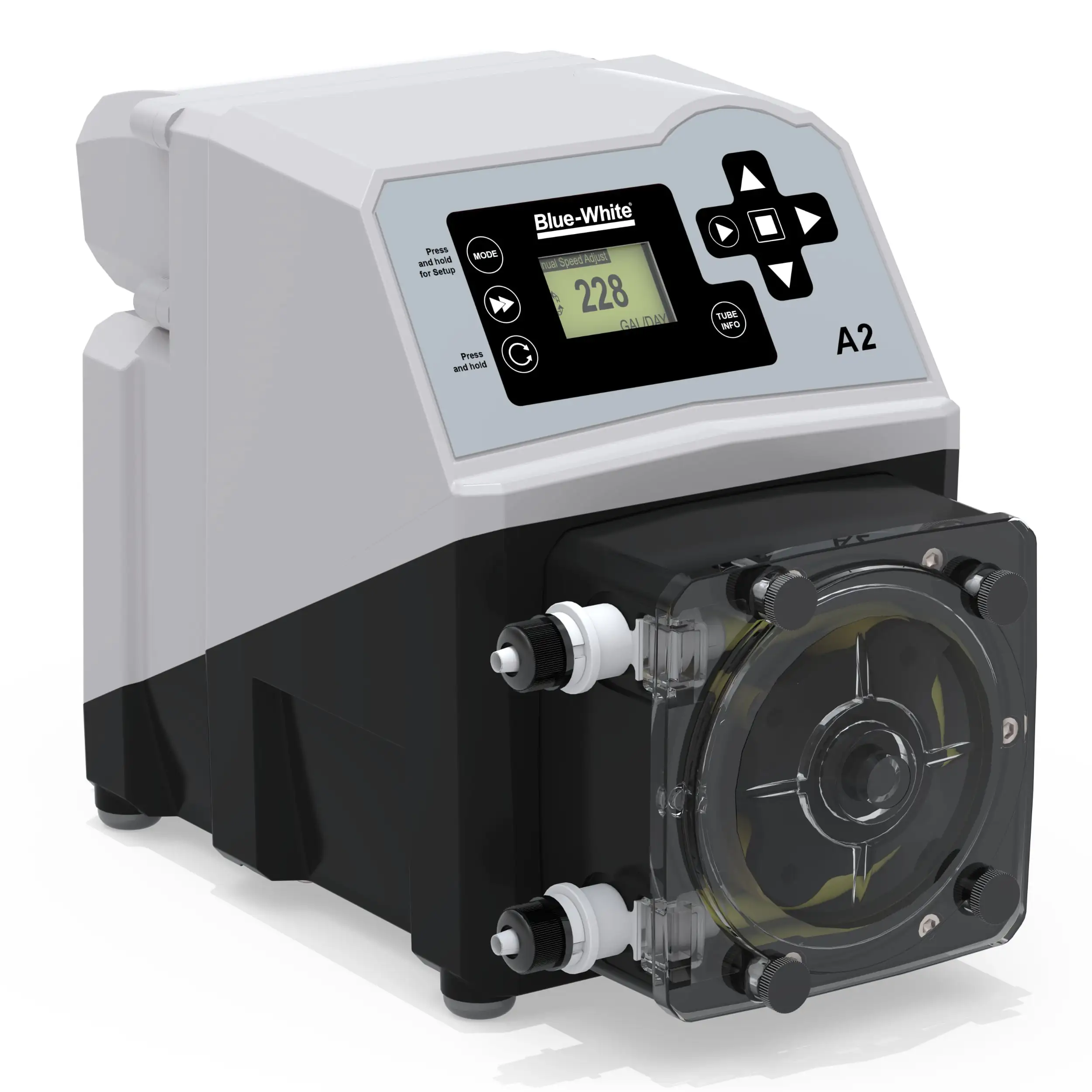

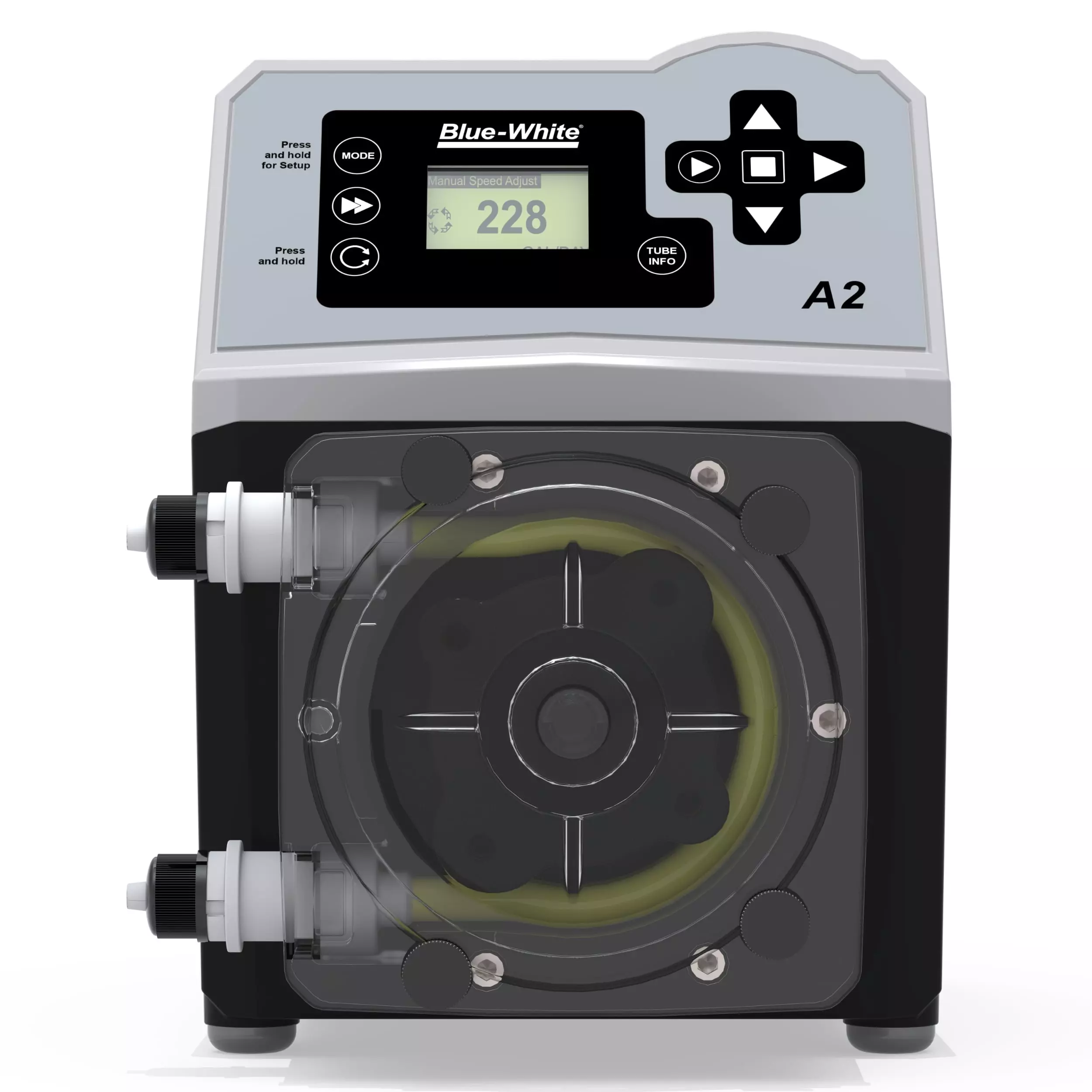

FLEXFLO A2 Peristaltic Metering Pump
Peristaltic pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.
Features & Benefits
Key Features & Benefits
Superior Design
- Heavy duty rotor with no flexing for increased accuracy
- No metal springs or hinges to corrode
- NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
- 3 Year Warranty
- 100:1 turndown ratio
Self-Priming Capabilities
- Functions against maximum line pressure
- No by-pass valves required
- Cannot vapor lock or lose prime
- 30ft of suction lift capability
- Gentle low shear pumping action
Safety Systems
- Tube Failure Detection (TFD) system
- Senses tube rupture by detecting chemical in pump head
- Prevents hazardous chemical spills
- No false triggering (Patented)
- Optional dual channel tube design for optimum performance
Control Interface
Digital Controls
- Operator friendly digital interface
- Backlit LCD display shows:
- Motor speed
- Input signal values
- Service status
- Alarm status
Input/Output Specifications
| Type | Specification |
|---|---|
| Input Signals | 4-20mA, Pulse inputs |
| Power Input | 6-24 VDC or dry contact closure |
| Relay Output | 250V/3A for TFD and FVS monitoring |
| Analog Output | 4-20mA (scalable to motor speed) |
| Status Output | Relay for run status |
Compatibility
- Compatible with Blue-White's Flow Verification Sensor (FVS) system
- Sensor sold separately
Optional Components
- Mounting Extended Brackets (72000-380)
- 1 Pair, Stainless Steel
- 4 Stainless Steel Screws
Chemical Compatibility
Construction Notes
This tubing material consists of an outer Norprene jacket with an inner liner that is virtually unaffected by acids, bases, salts, ketones and alcohols. Available in a medium stiffness for applications up to 50 psi.
Exploded view
