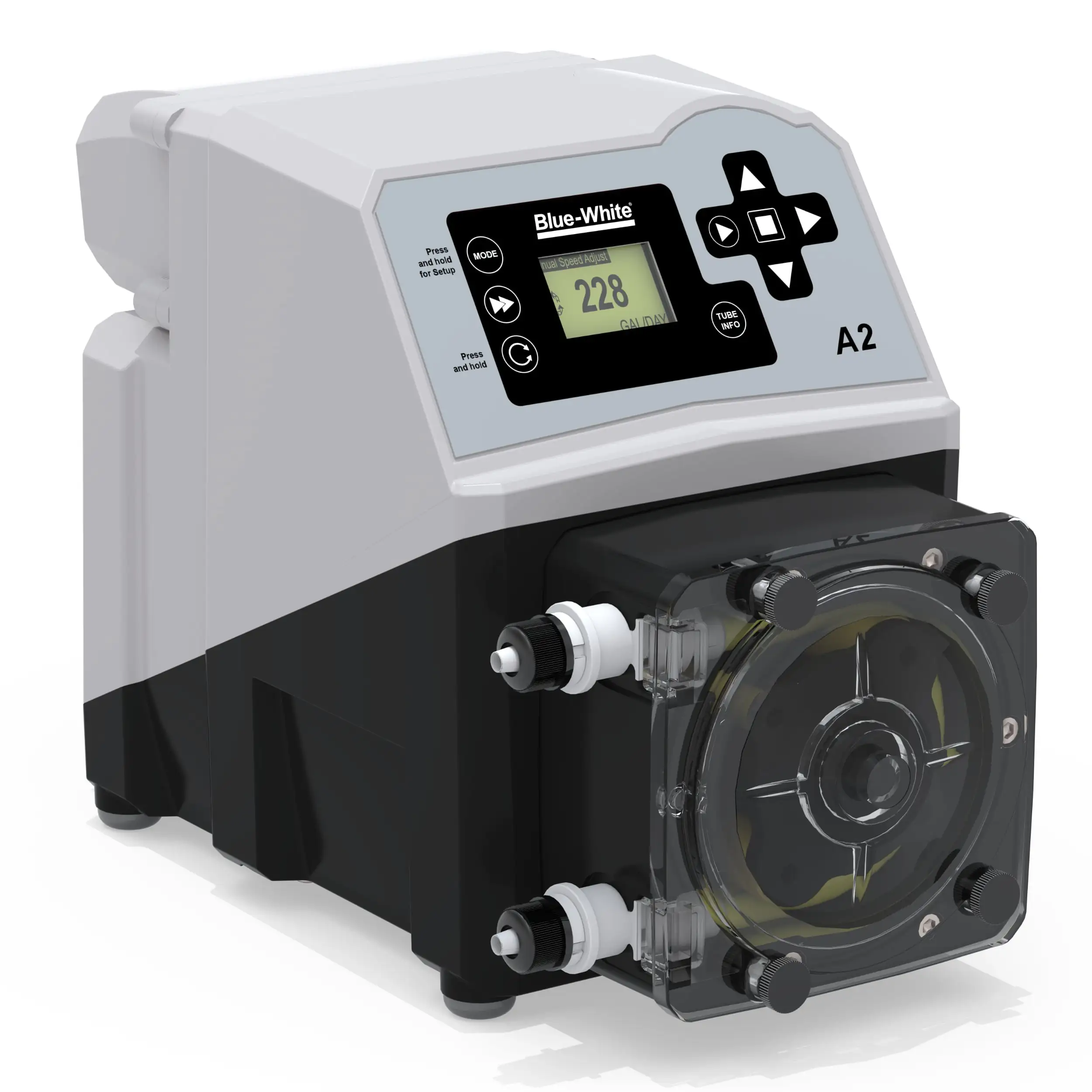

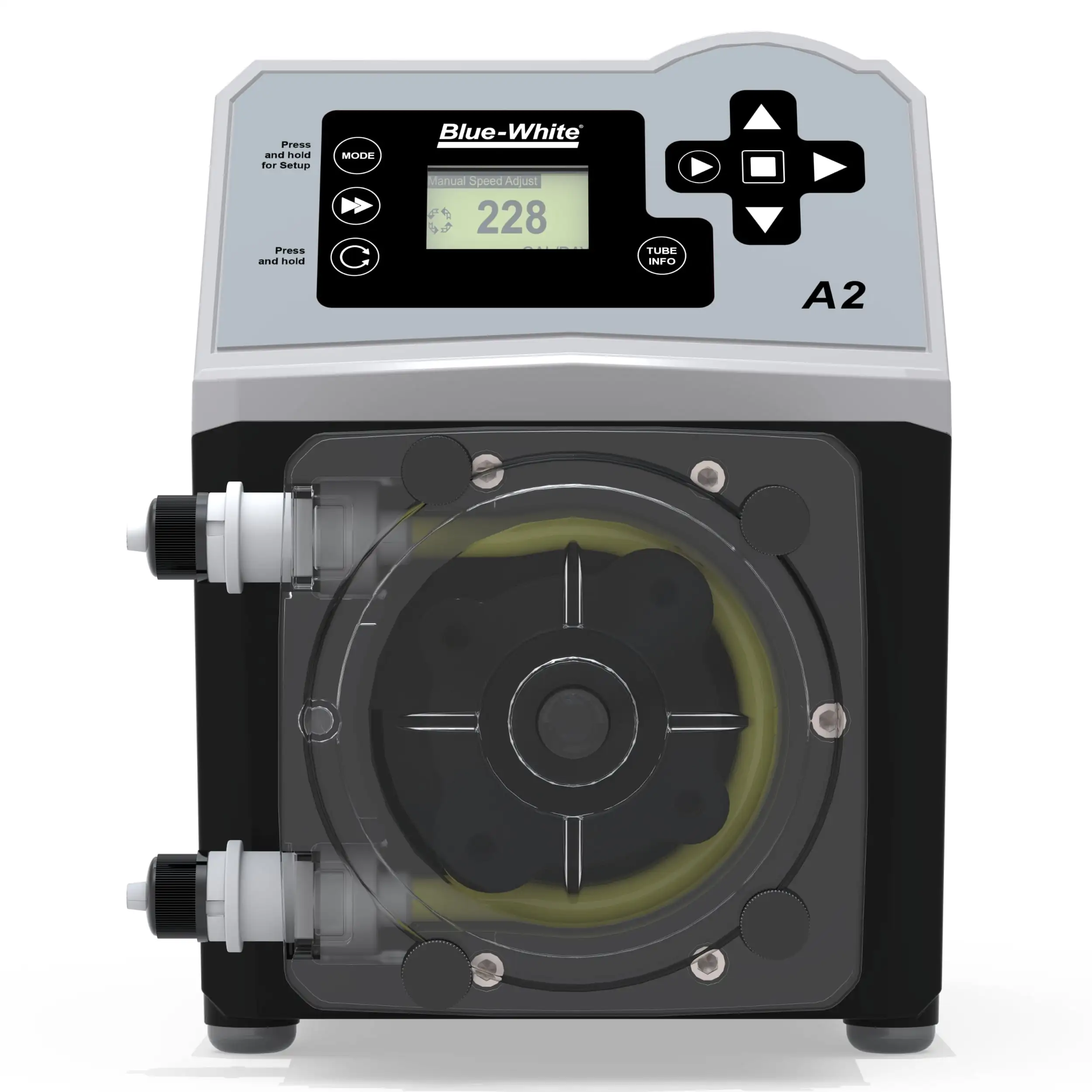

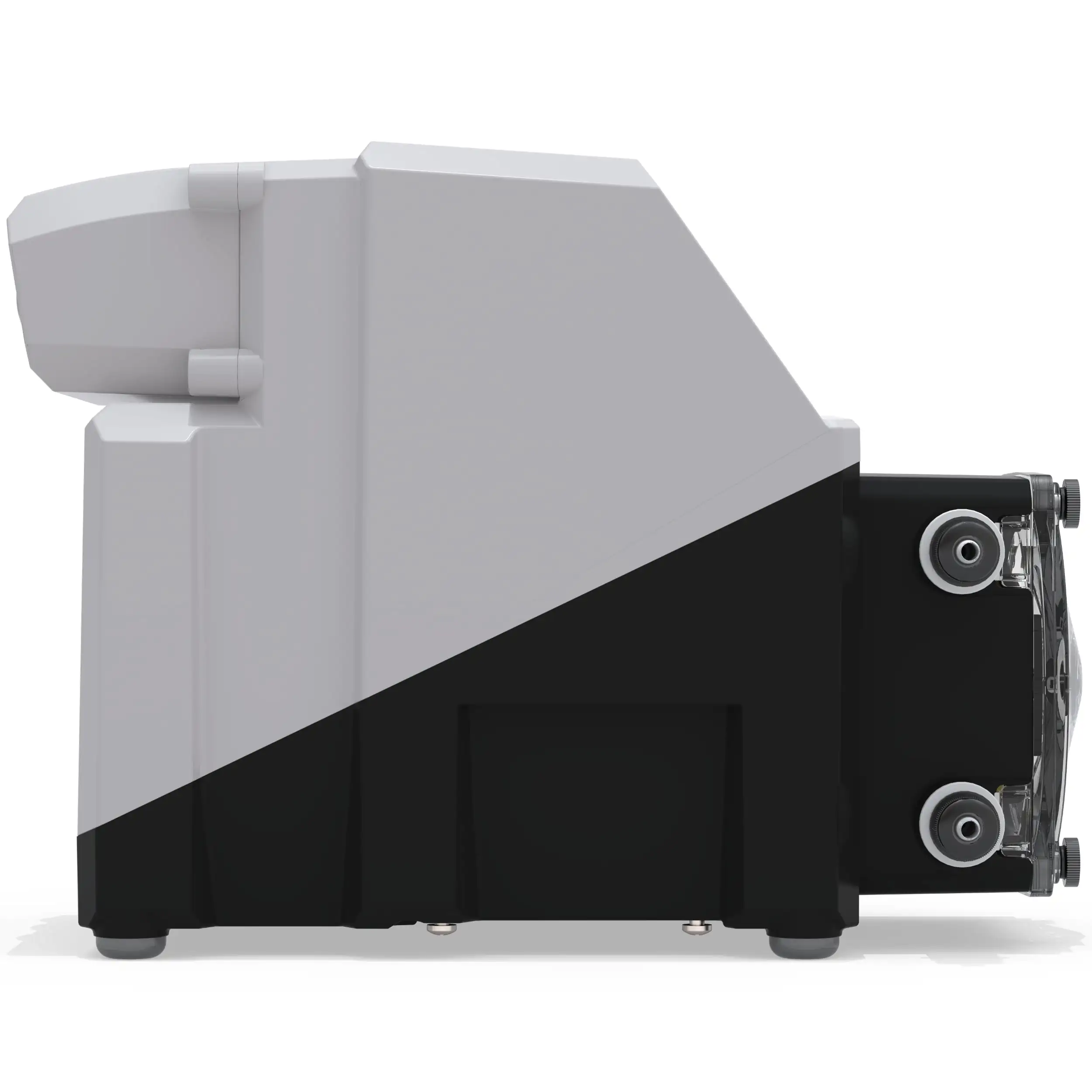

FLEXFLO A2 Peristaltic Metering Pump
Peristaltic pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.
Features & Benefits
Key Features & Benefits
Superior Design
- Heavy duty rotor with no flexing for increased accuracy
- No metal springs or hinges to corrode
- NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
- 3 Year Warranty
- 100:1 turndown ratio
Self-Priming Capabilities
- Functions against maximum line pressure
- No by-pass valves required
- Cannot vapor lock or lose prime
- 30ft of suction lift capability
- Gentle low shear pumping action
Safety Systems
- Tube Failure Detection (TFD) system
- Senses tube rupture by detecting chemical in pump head
- Prevents hazardous chemical spills
- No false triggering (Patented)
- Optional dual channel tube design for optimum performance
Control Interface
Digital Controls
- Operator friendly digital interface
- Backlit LCD display shows:
- Motor speed
- Input signal values
- Service status
- Alarm status
Input/Output Specifications
| Type | Specification |
|---|---|
| Input Signals | 4-20mA, Pulse inputs |
| Power Input | 6-24 VDC or dry contact closure |
| Relay Output | 250V/3A for TFD and FVS monitoring |
| Analog Output | 4-20mA (scalable to motor speed) |
| Status Output | Relay for run status |
Compatibility
- Compatible with Blue-White's Flow Verification Sensor (FVS) system
- Sensor sold separately
Optional Components
- Mounting Extended Brackets (72000-380)
- 1 Pair, Stainless Steel
- 4 Stainless Steel Screws
Chemical Compatibility
Construction Notes
An excellent material for most water treatment applications. Chemically resistant to 25% Sodium Hypochlorite, 30% Sulfuric Acid, 30% Fluosilicic Acid, Ferric Chloride, Alum and many others. Available in a wide stiffness range for both low and high pressure applications.
