A2V24-SND-3R | Flex-Pro A2V - US 115V - Tubing - Flex-A-Prene

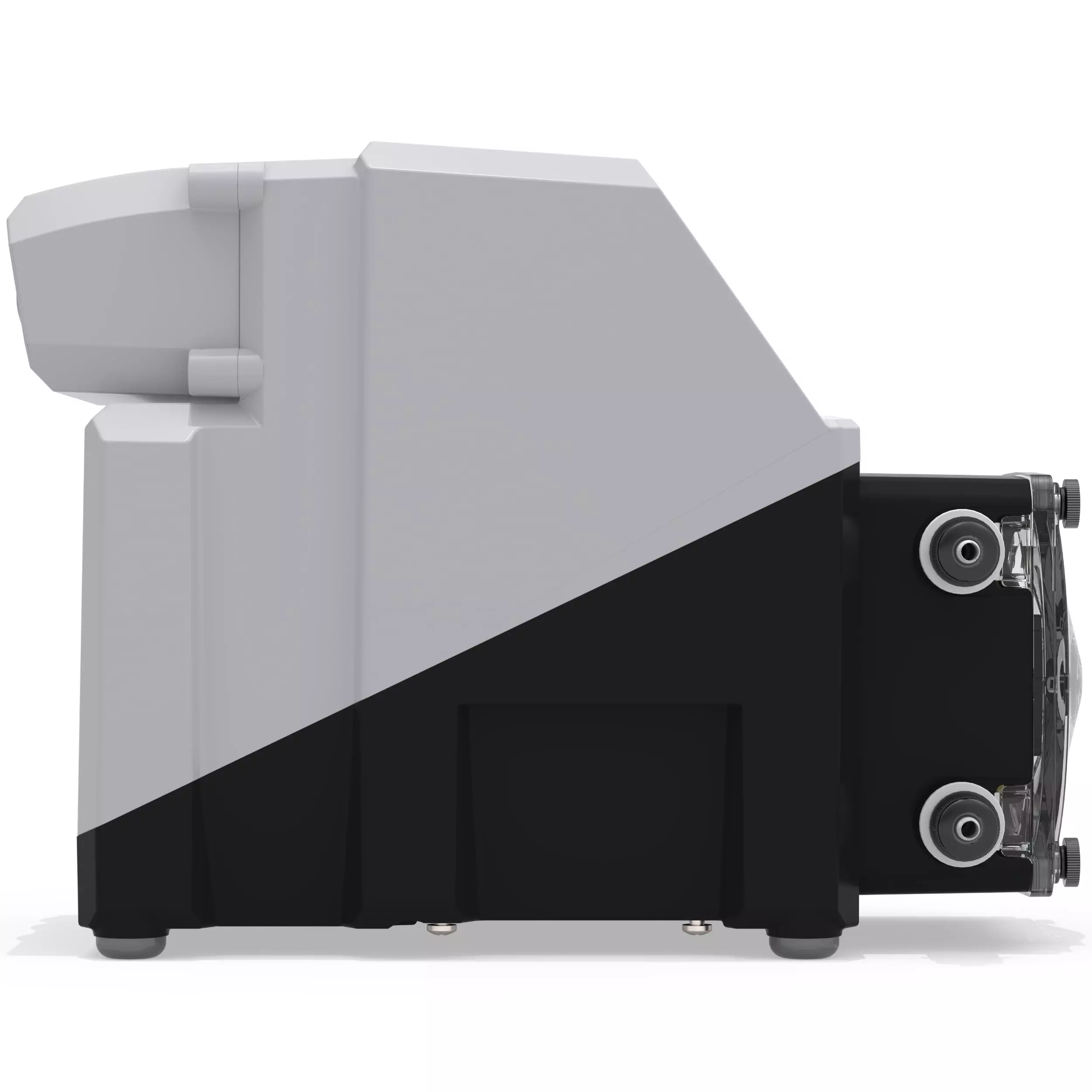

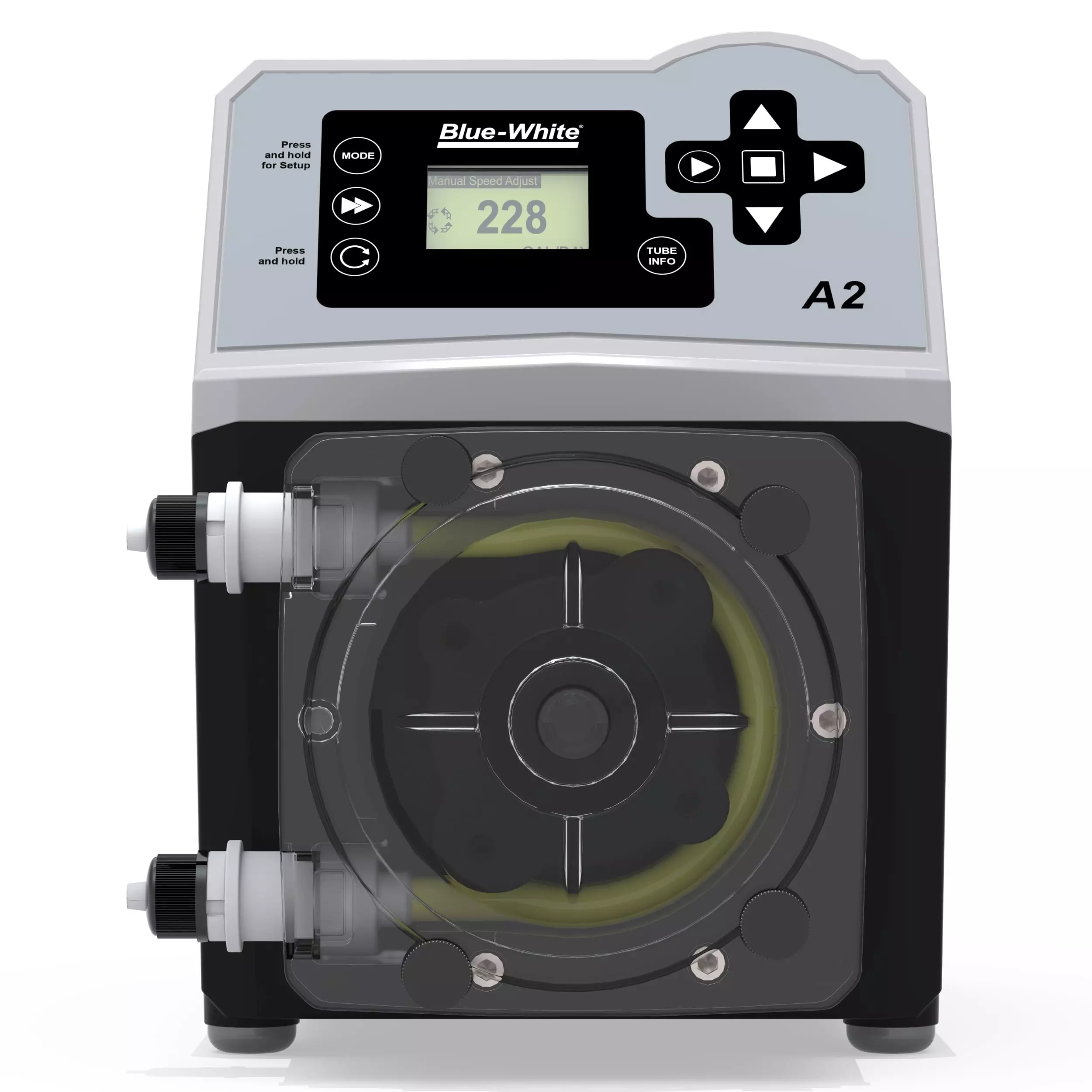

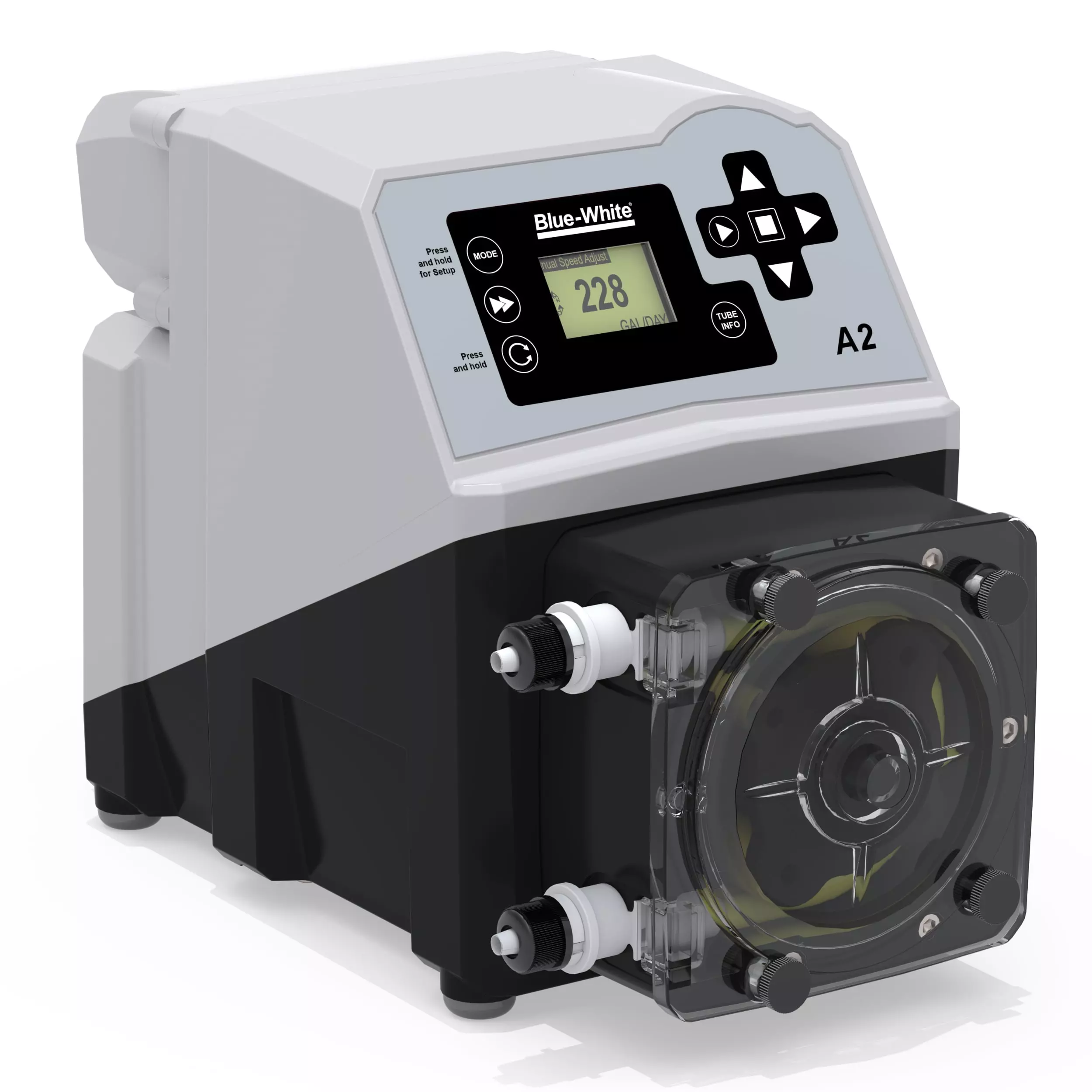

FLEXFLO A2 Peristaltic Metering Pump

Peristaltic pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.

Benefits:

• Self-priming – even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. 30ft of suction lift. Gentle low shear pumping action.
• Tube Failure Detection (TFD) senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
• Optional dual channel tube design for optimum performance and pressure capability

Communication and Interface:

• Operator friendly digital controls with backlit LCD displays motor speed, input signal values, service, and alarm status
• Inputs include: 4-20mA and pulse inputs for remote external speed control and either powered 6-24 VDC or non-powered dry contact closure for remote start/stop
• Outputs: one 250V/3A relay to monitor TFD (Tube Failure System) and FVS (Flow Verification System), one 4-20mA analog signal scalable to the motor speed and one relay output for run status
• Compatible with Blue-White’s output Flow Verification Sensor (FVS) system. Sensor is sold separately

Superior Design:

• 3 Year Warranty
• 100:1 turndown ratio
• NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
• Heavy duty rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.

Safety Features:

• Tube Failure Detection (TFD) senses tube rupture, preventing hazardous chemical spills

Optional Components Available:

• Mounting Extended Brackets (72000-380) – 1 Pair, SS, 4 SS Screws
