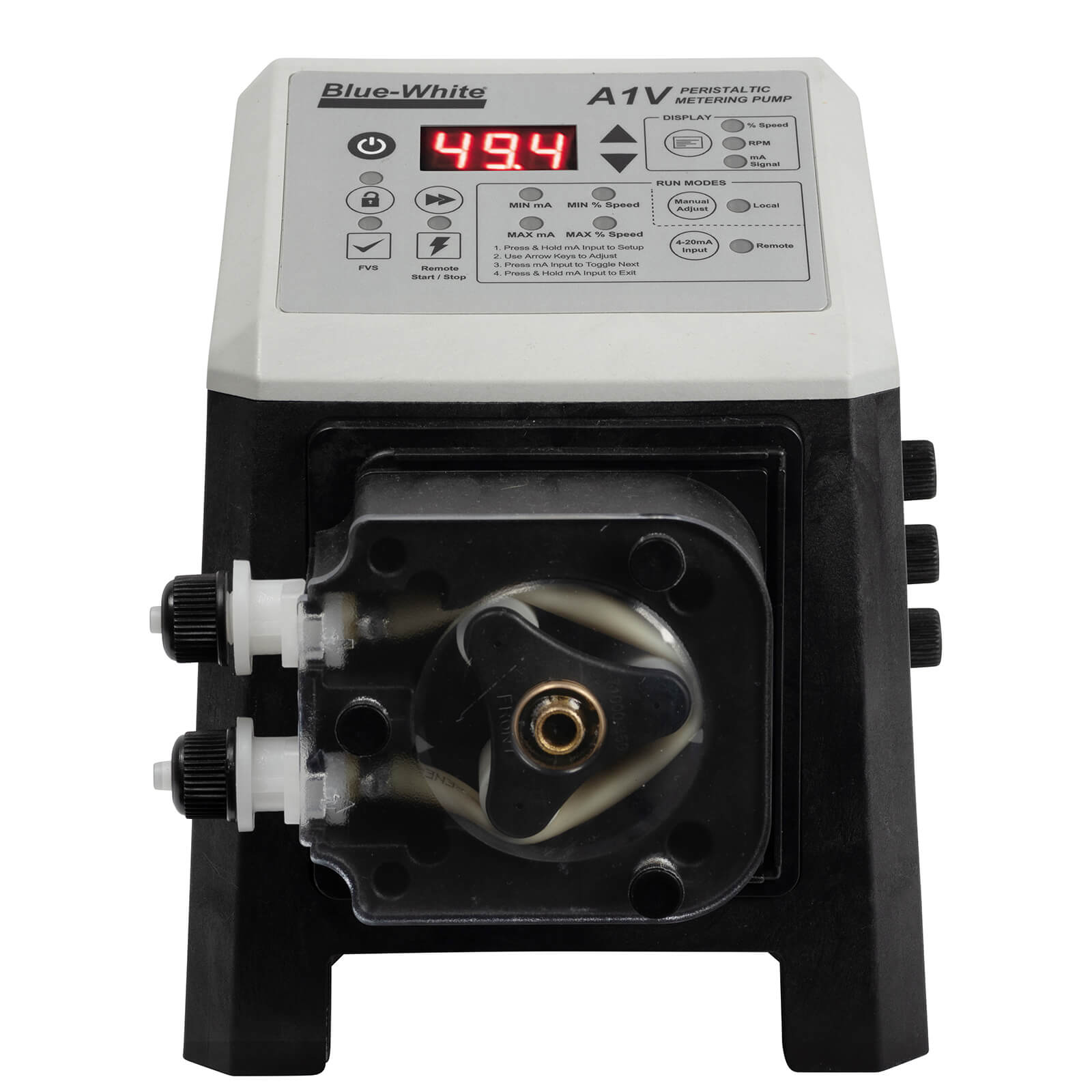

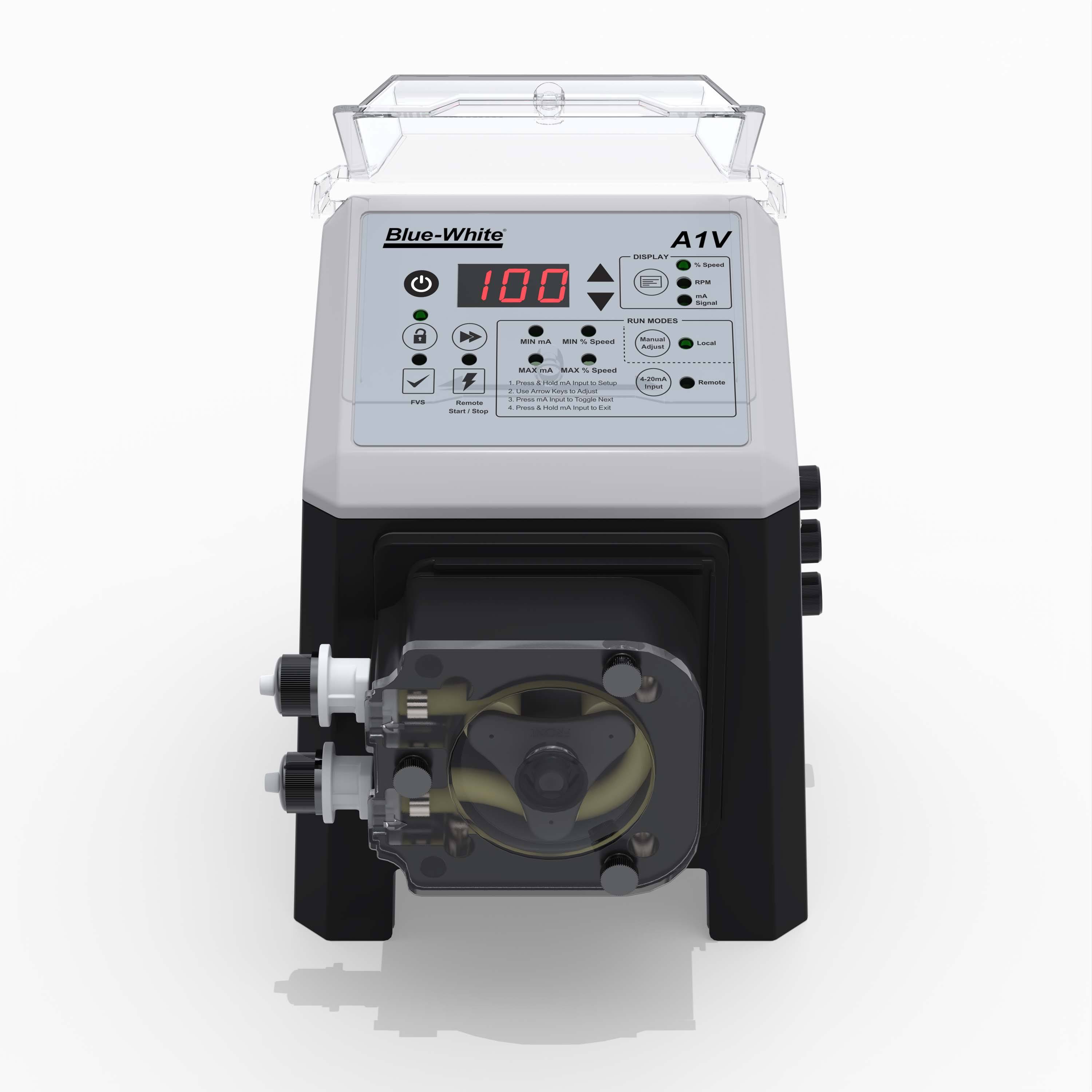

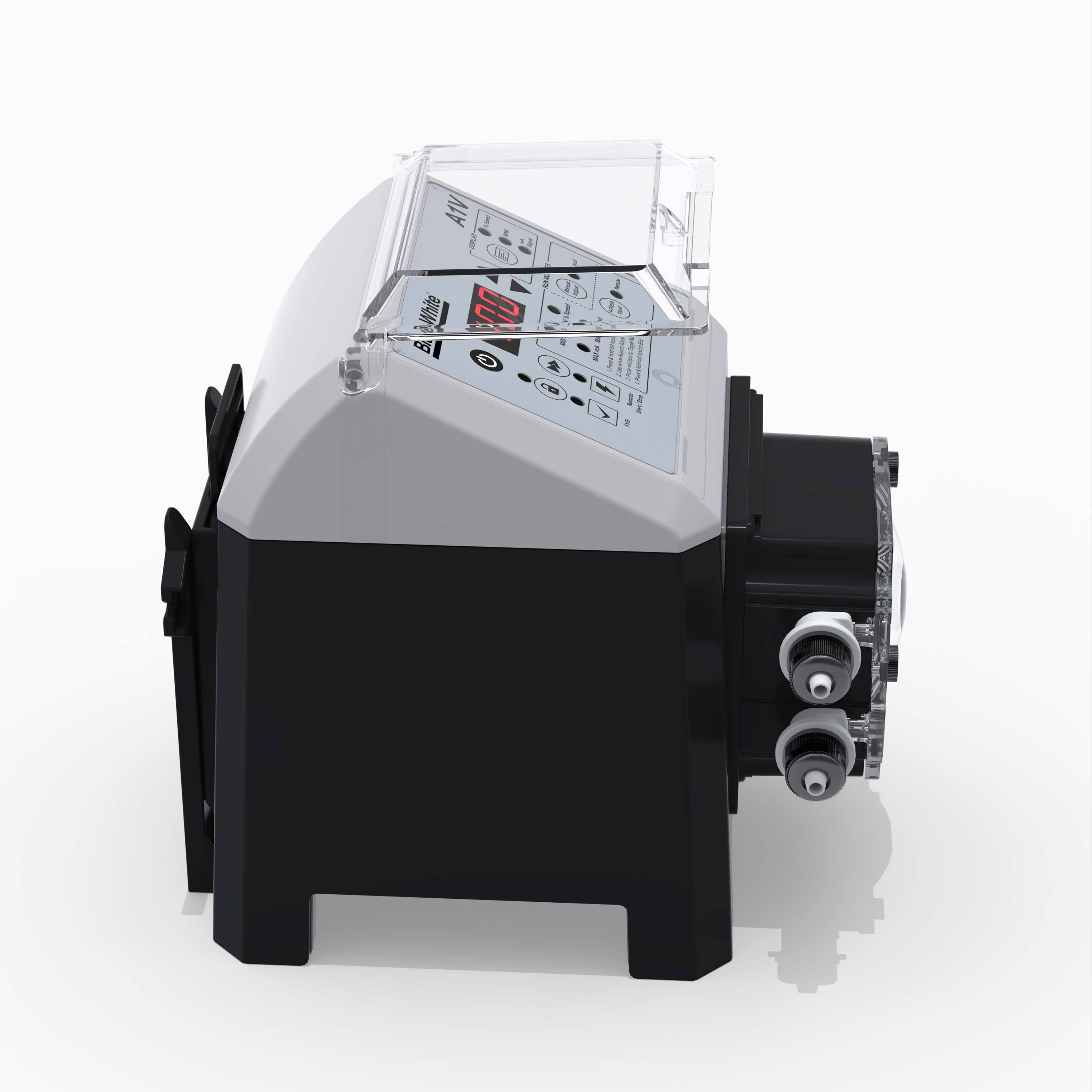

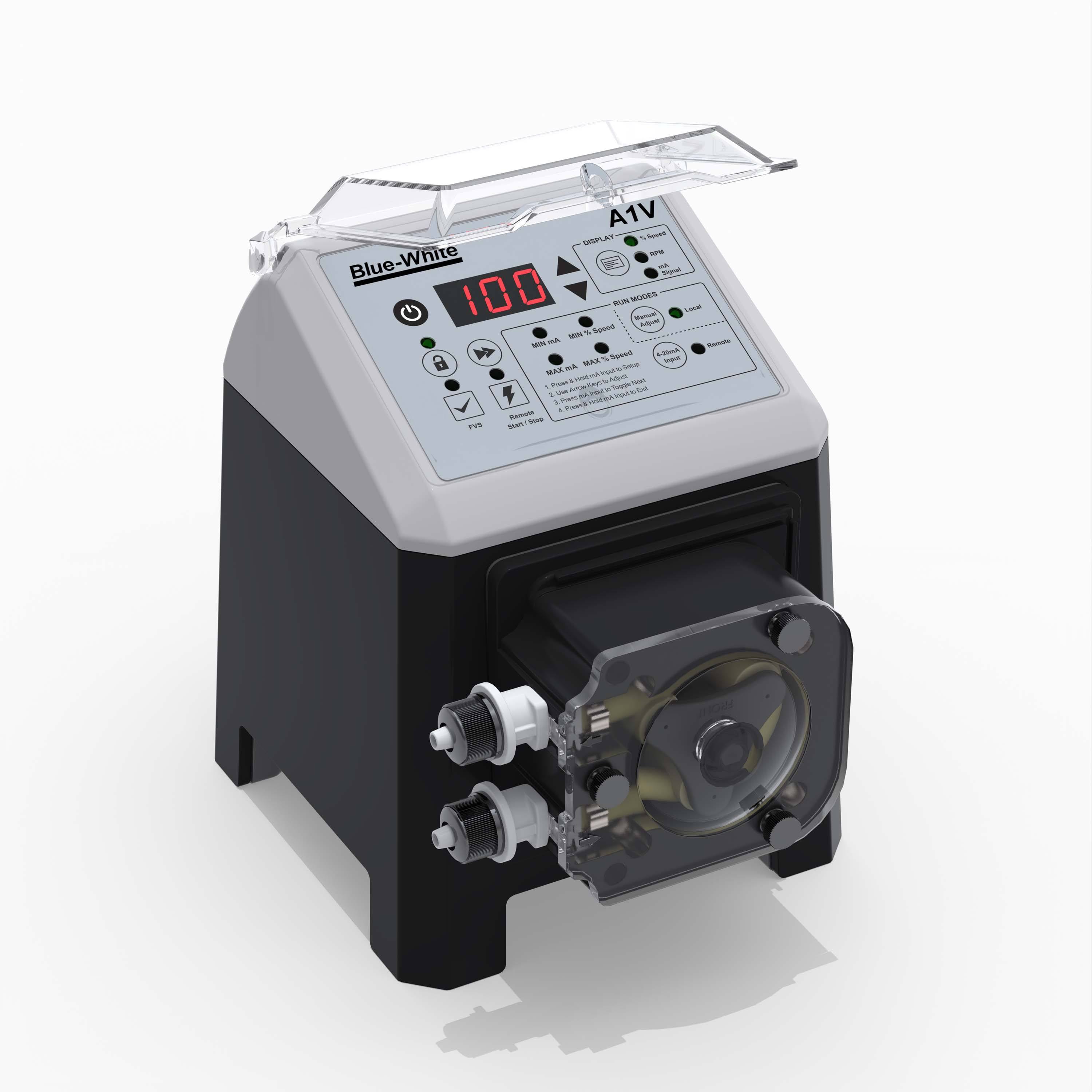

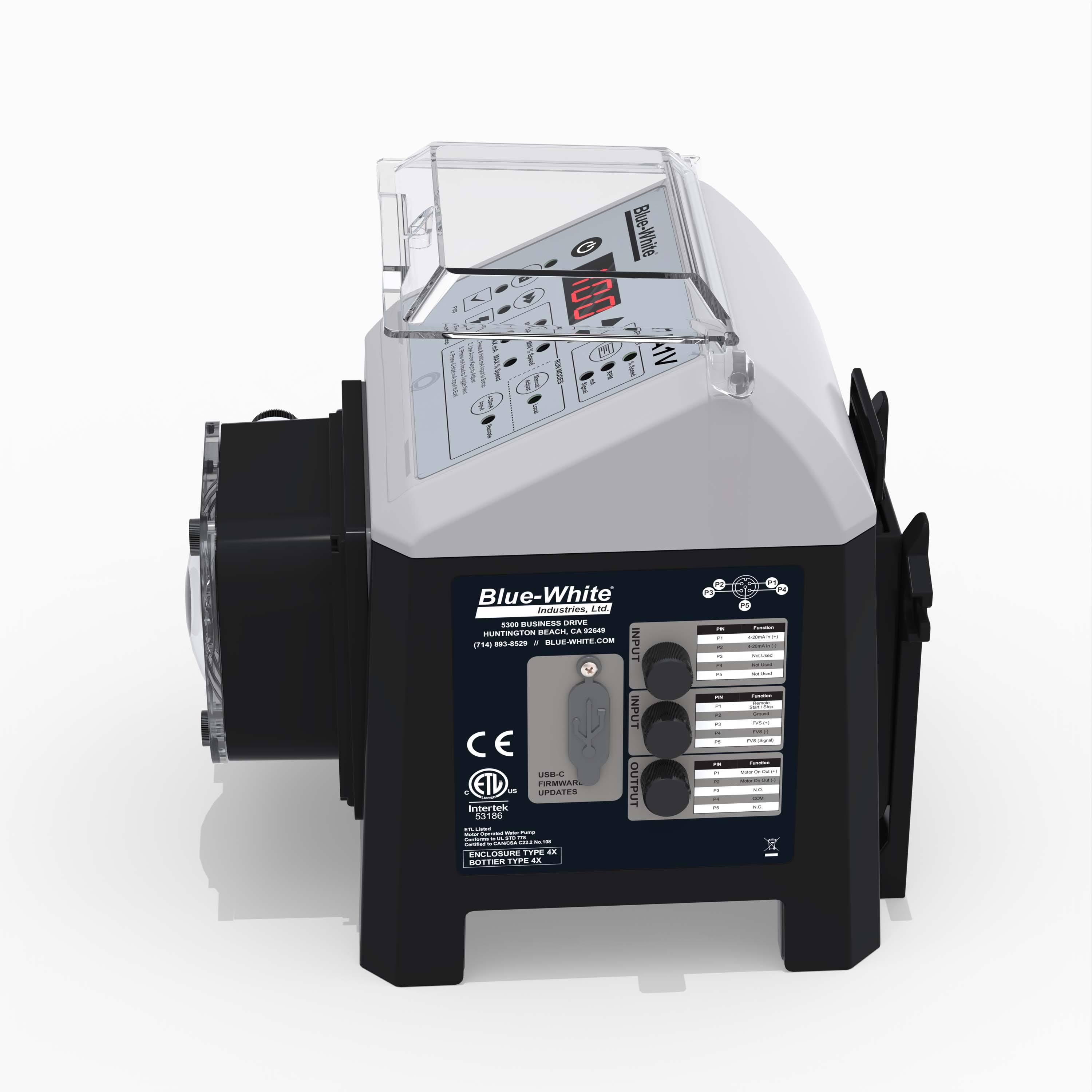

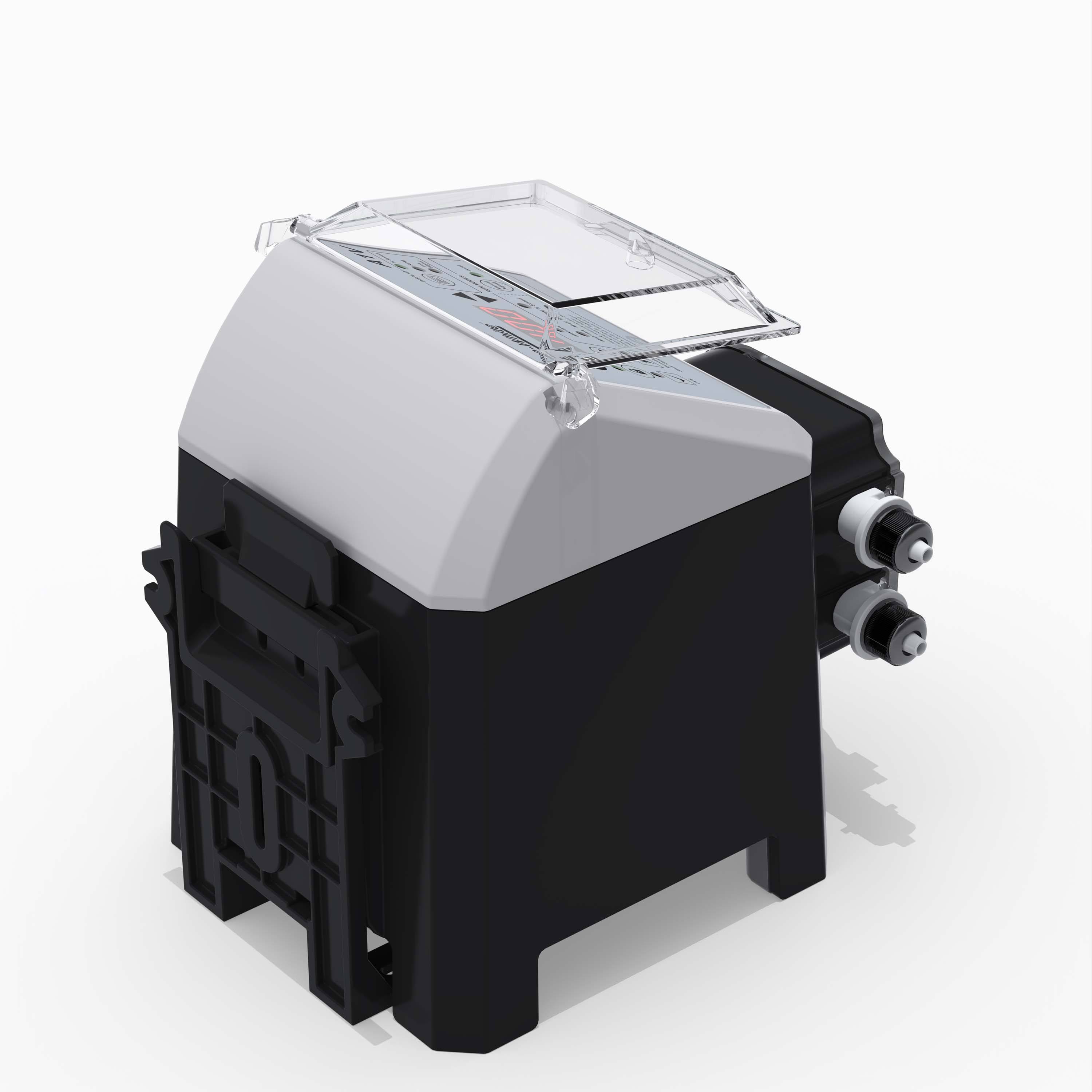

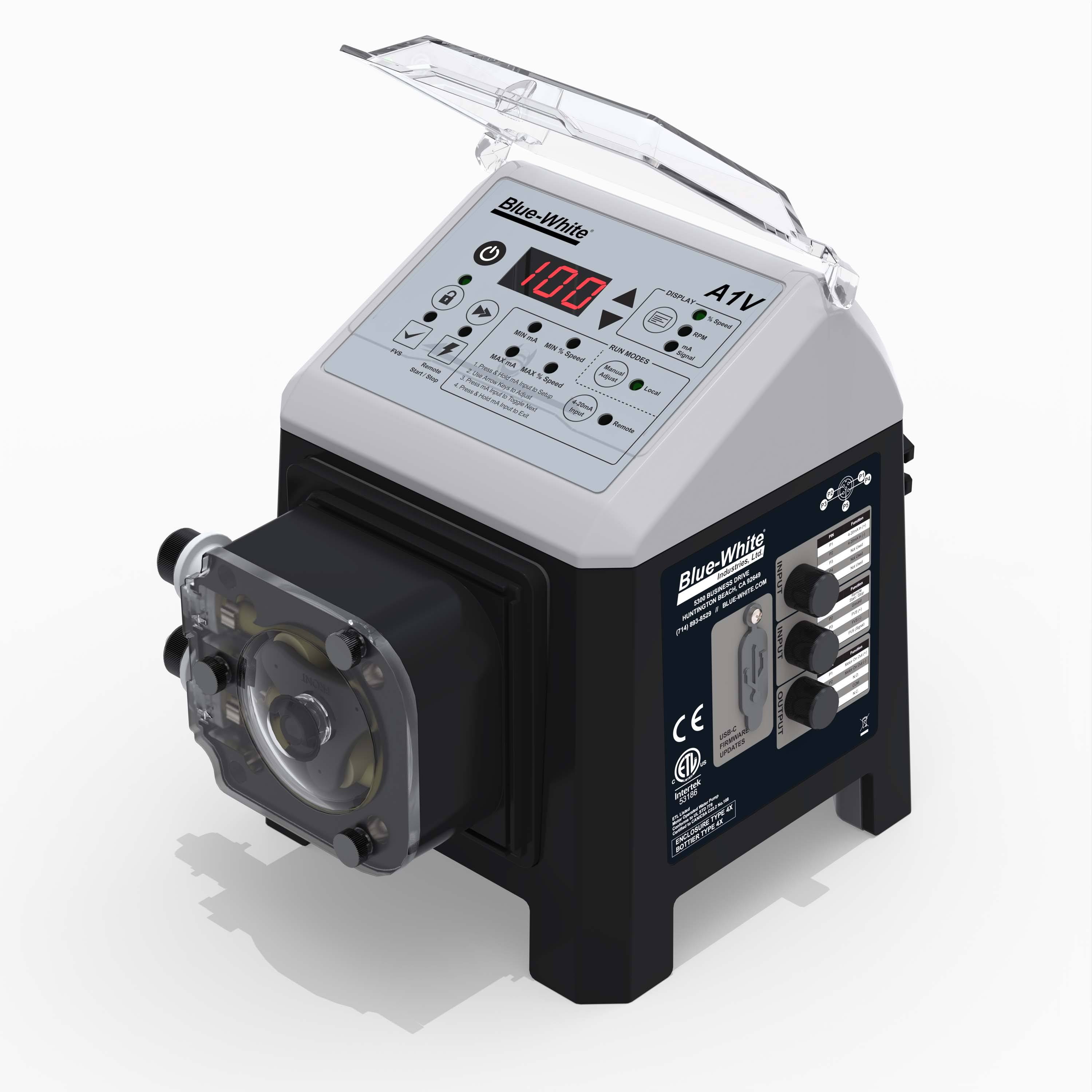

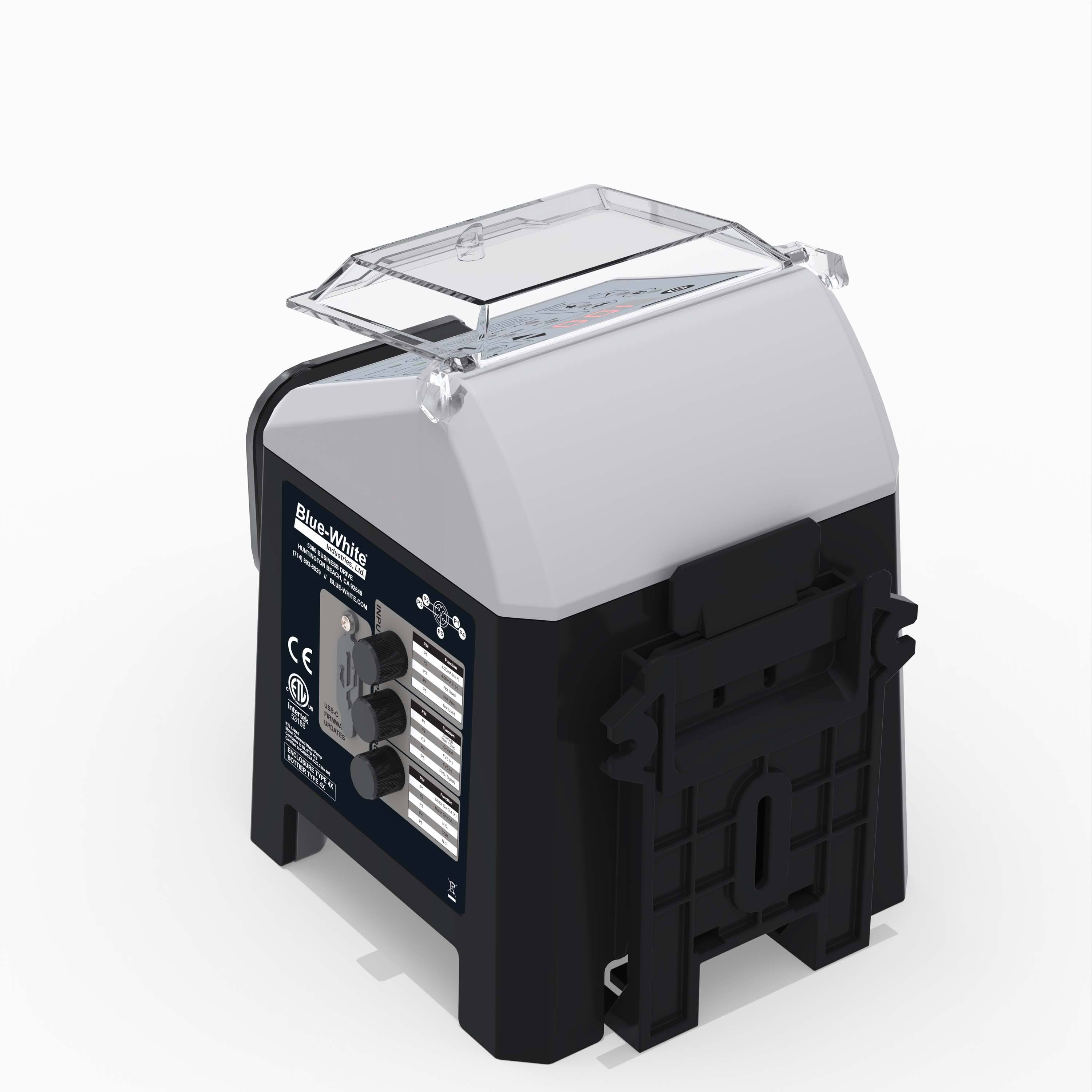

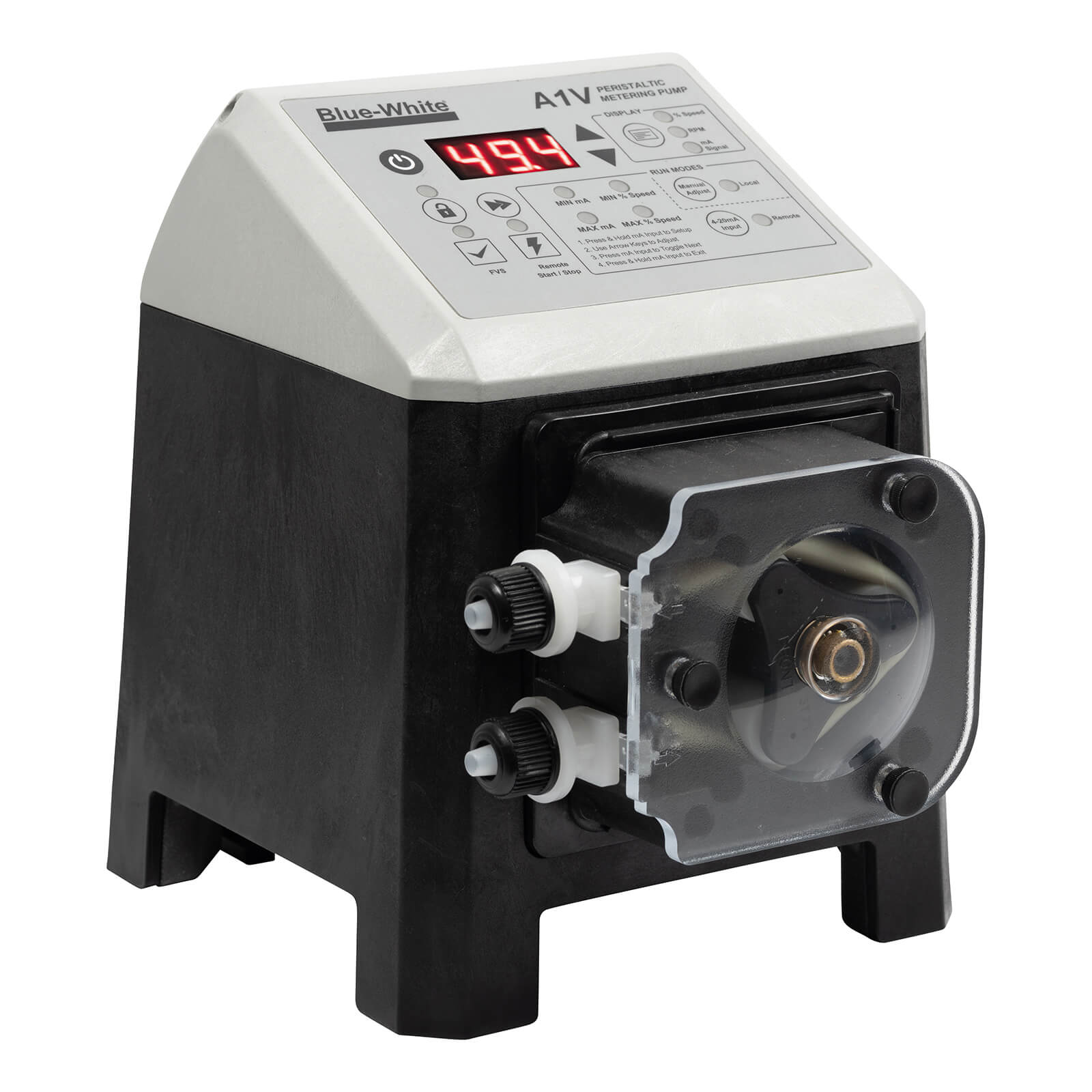

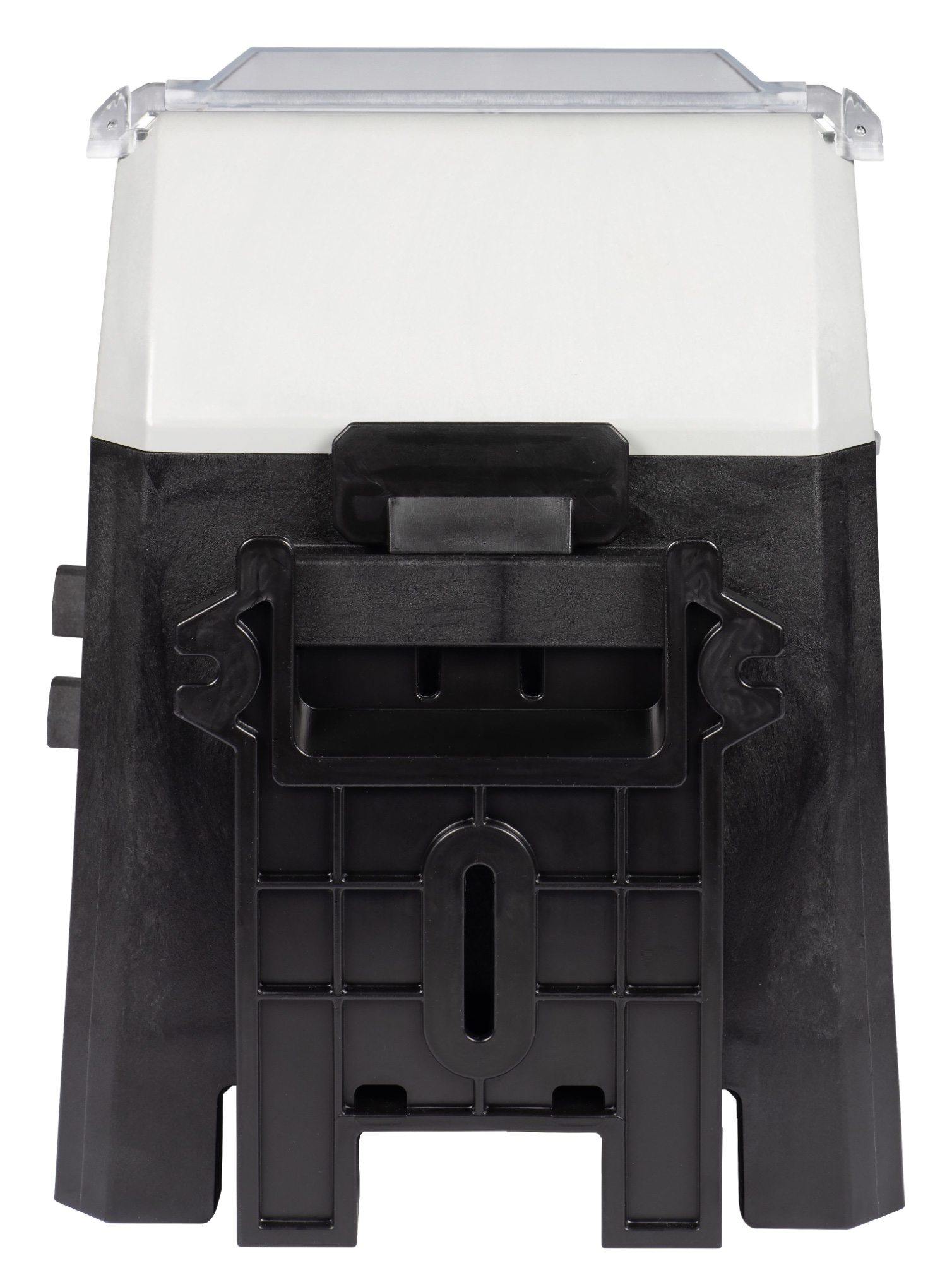

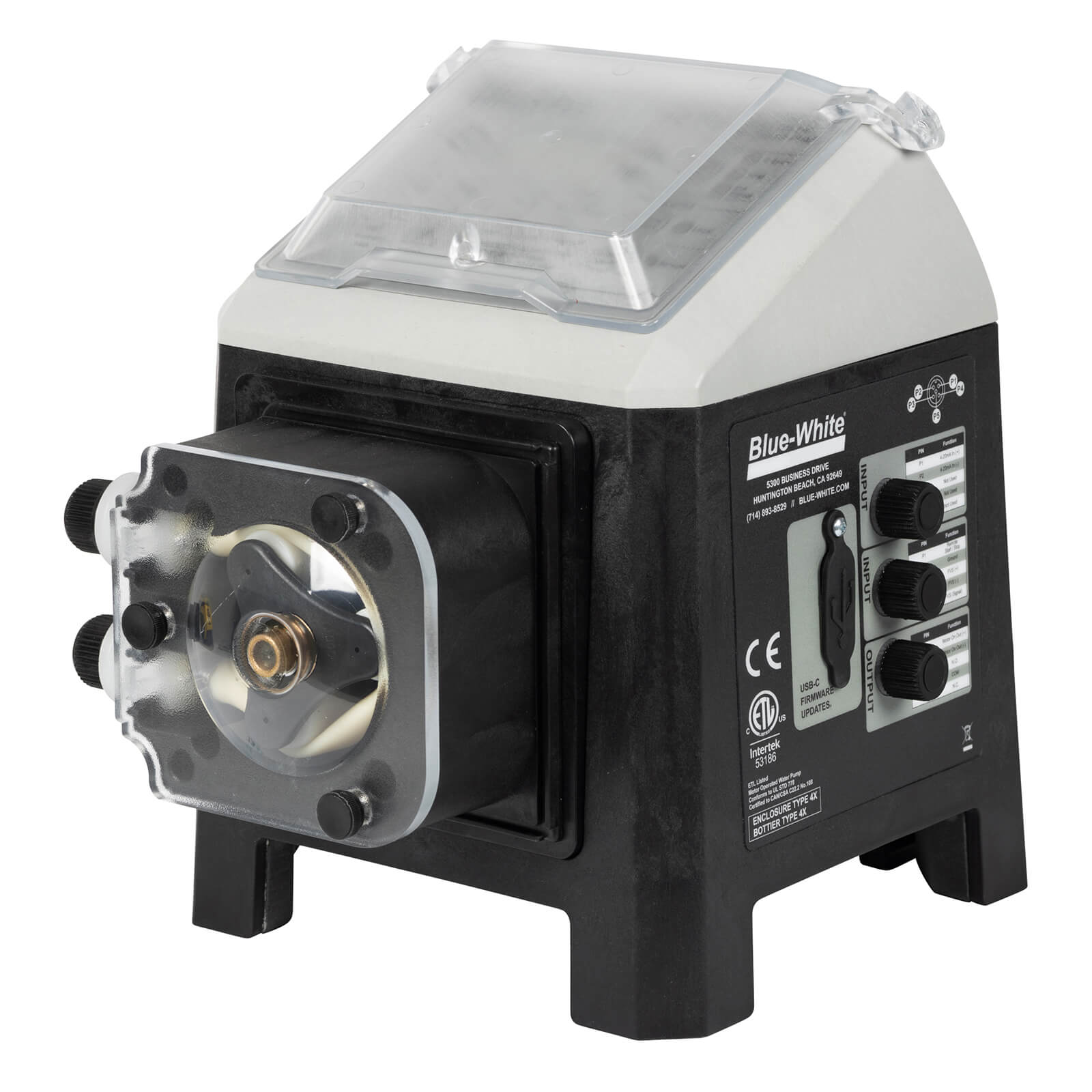

FLEXFLO A1 Peristaltic Metering Pump
Standardize on one chemical feed solution with the FLEXFLO A1 Peristaltic Chemical Metering Pump. The A1 never loses prime, requires minimal maintenance, and has a high energy-efficient rating. This self-priming chemical metering pump delivers smooth chemical feed and does not require check valves.
Features & Benefits
- Key Benefits
- No clogging valves requiring maintenance
- Self-priming against maximum line pressure - no bypass valves needed
- Cannot vapor lock or lose prime
- Energy-efficient brushless DC motor
- 3 Year Warranty
- Technical Specifications
- Flow Rate: 0.001 - 5.6 GPH (0.004 - 21.2 LPH)
- Pressure: Up to 100 PSI (6.89 Bar)
- Relay Output: 250V / 3A + solid-state
- SCADA Input: 4-20mA (A1C model)
- Advanced Engineering
- CNC precision-machined squeeze rollers
- Optimum squeeze performance
- Unparalleled accuracy
- Extended tube life
- Heavy-duty single piece plastic rotor
- No flexing for increased accuracy
- No metal springs or hinges to corrode
- Specially engineered tubing for long life
- Control & Communication
- Remote Start/Stop via dry contact closure
- Relay outputs (250V/3A and solid-state)
- Compatible with Flow Verification Sensor (FVS) system
- SCADA Integration (A1C model)
- Safety & Protection
- Enhanced Tube Failure Detection (TFD+)
- Detects tube rupture via chemical sensing
- No false triggering - Patented
- Tamper-proof lockout feature (Patent pending)
- Protective display shield for harsh environments
