Headline

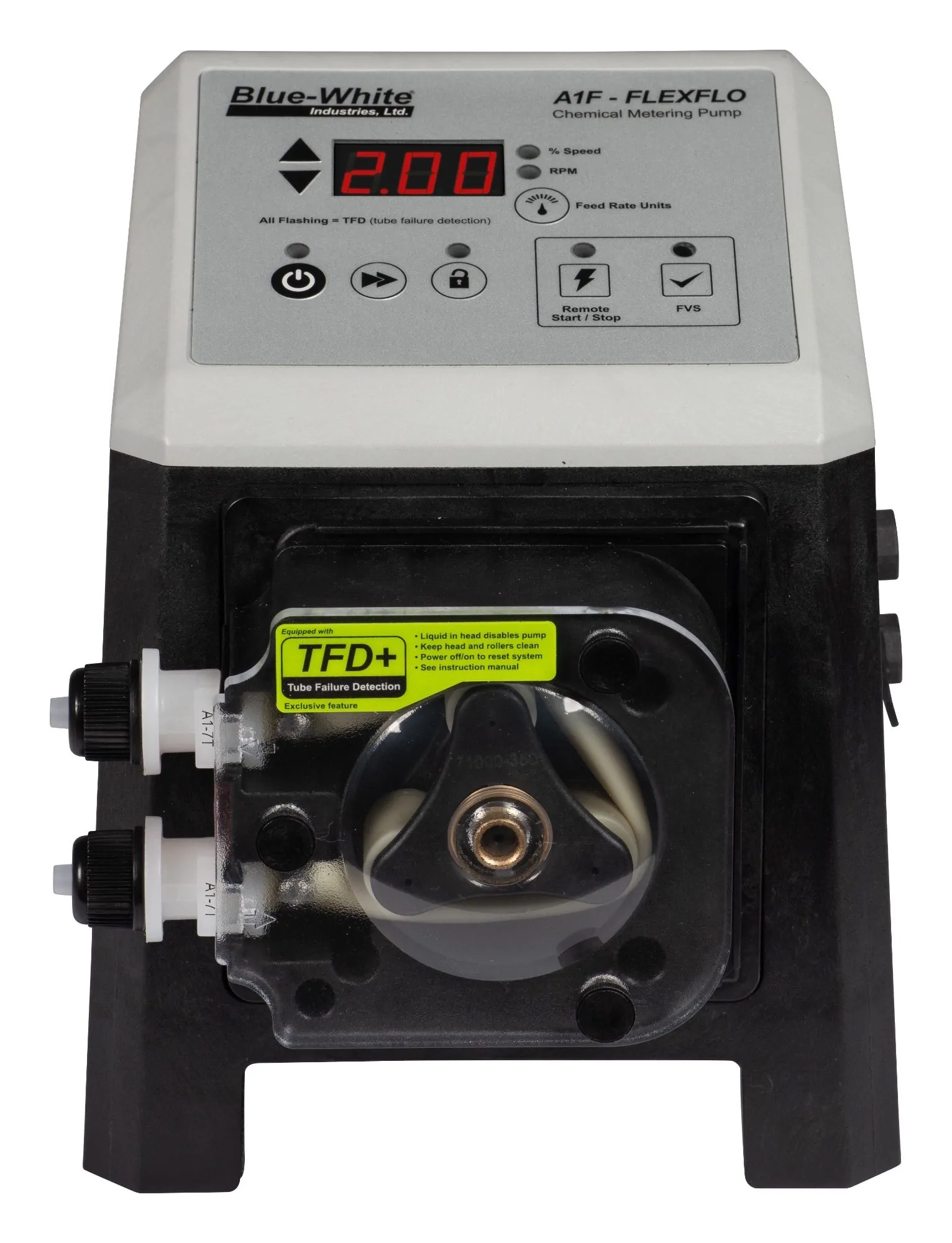

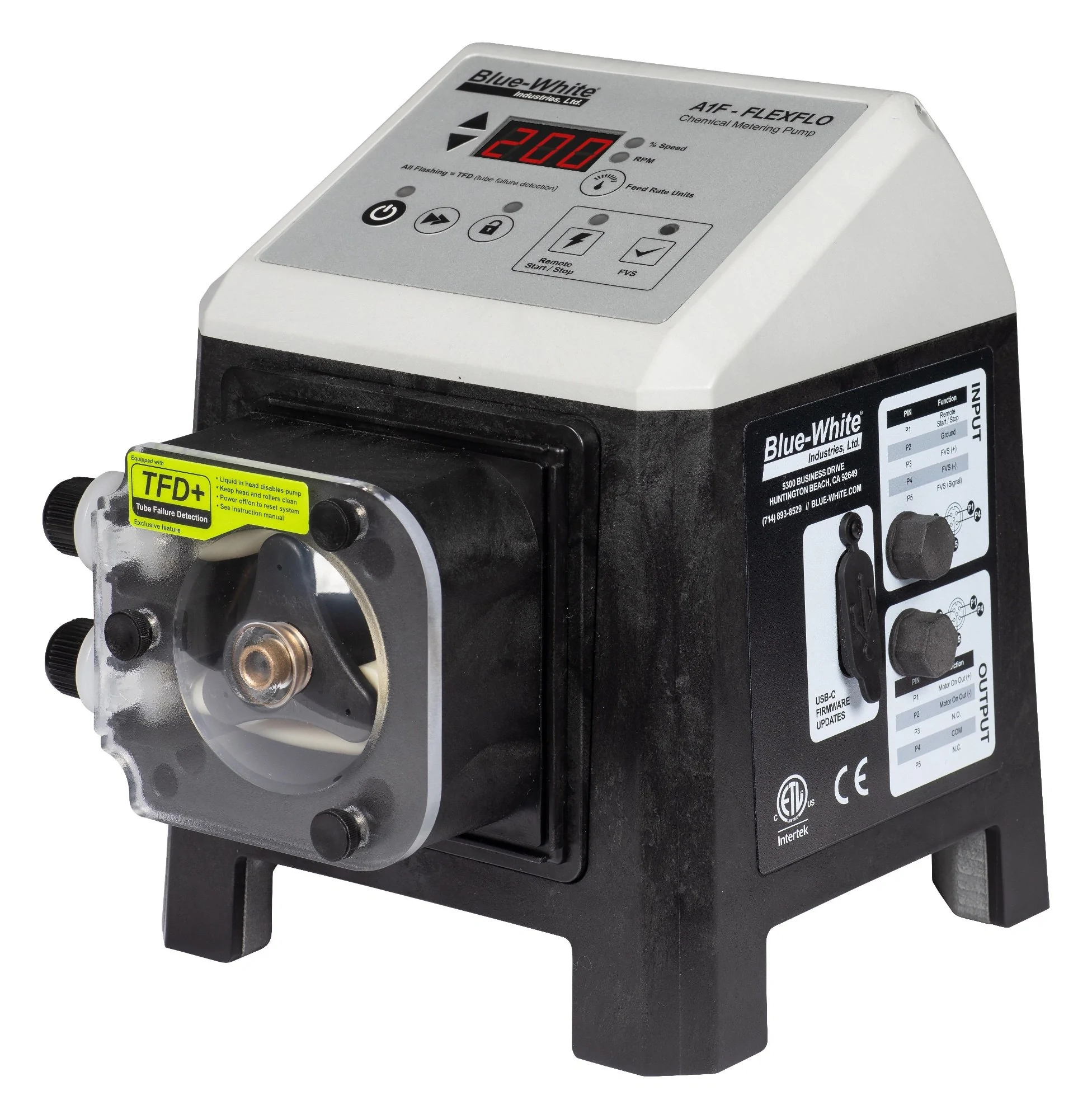

FLEXFLO A1 Peristaltic Metering Pump
Standardize on one chemical feed solution with the FLEXFLO A1 Peristaltic Chemical Metering Pump. The A1 never loses prime, requires minimal maintenance, and has a high energy-efficient rating. This self-priming chemical metering pump delivers smooth chemical feed and does not require check valves.
Features & Benefits
Key Benefits
- No clogging valves requiring maintenance
- Self-priming against maximum line pressure - no bypass valves needed
- Cannot vapor lock or lose prime
- Energy-efficient brushless DC motor
- 3 Year Warranty
Technical Specifications
| Parameter | Value |
|---|---|
| Flow Rate | 0.001 - 5.6 GPH (0.004 - 21.2 LPH) |
| Pressure | Up to 100 PSI (6.89 Bar) |
| Relay Output | 250V / 3A + solid-state |
| SCADA Input | 4-20mA (A1V model) |
Advanced Engineering
- CNC precision-machined squeeze rollers
- Optimum squeeze performance
- Unparalleled accuracy
- Extended tube life
- Heavy-duty single piece plastic rotor
- No flexing for increased accuracy
- No metal springs or hinges to corrode
- Specially engineered tubing for long life
Control & Communication
- Remote Start/Stop via dry contact closure
- Relay outputs (250V/3A and solid-state)
- Compatible with Flow Verification Sensor (FVS) system
- SCADA Integration (A1V model)
Safety & Protection
- Enhanced Tube Failure Detection (TFD+)
- Detects tube rupture via chemical sensing
- No false triggering - Patented
- Tamper-proof lockout feature (Patent pending)
- Protective display shield for harsh environments
Chemical Compatibility
Construction Notes
This polyurethane material can be used with a variety of chemicals including Oil and Water based Polymers, Sodium Hypochlorite, Alum, Ferric Chloride, fuels and lubricants and many others. Available in a medium stiffness for applications up to 65 psi.
Exploded view
