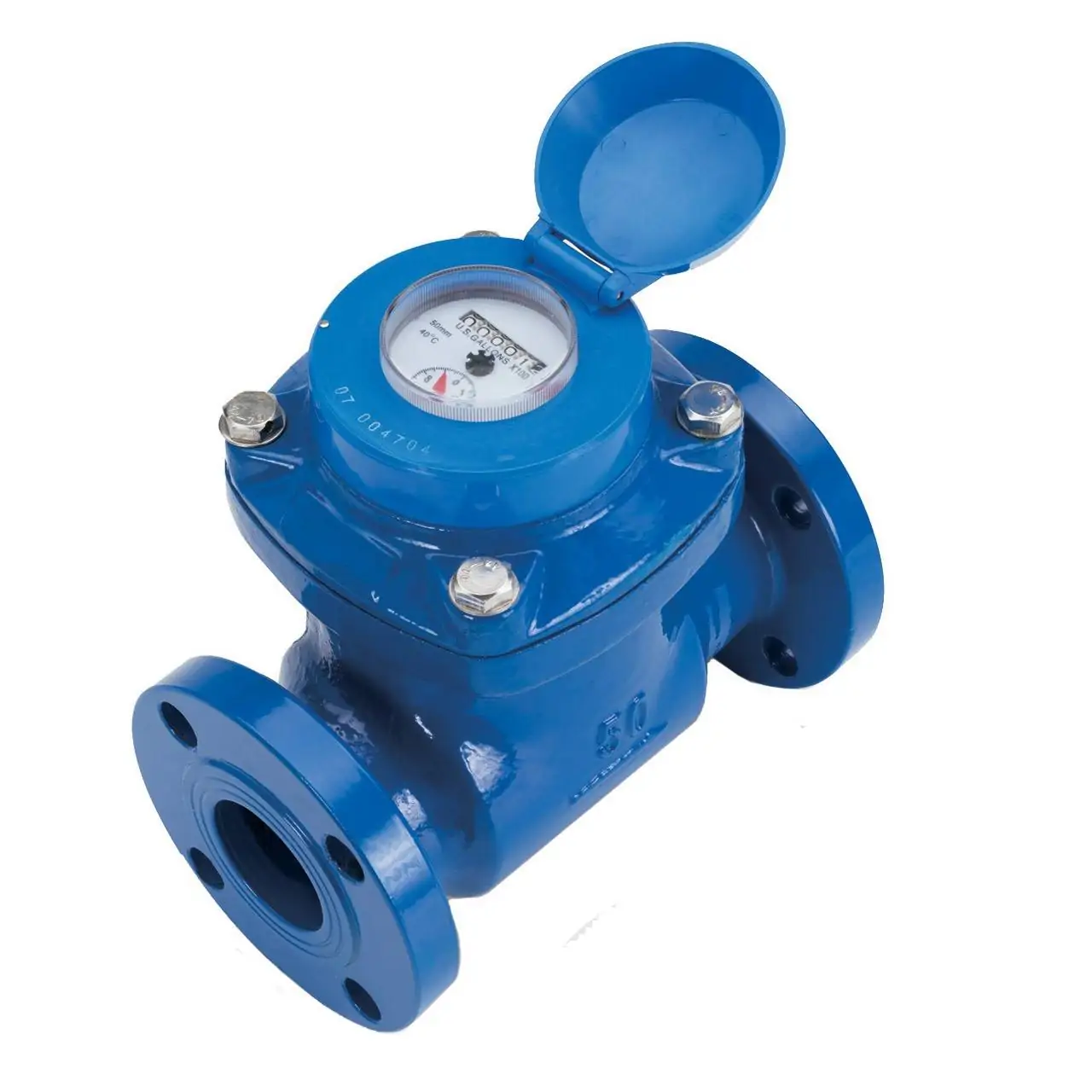

ACS-W Series Cast Iron Turbine Meters
ACS-W Turbine Meters are horizontal Woltman type water meters designed for accurate, economical reading of medium-to-high flow rates with minimal pressure loss. Rugged cast iron meter bodies are epoxy-coated inside and outside. The turbine drives a vertical impeller in direct proportion to the water flow. The impeller is magnetically coupled to the register, which contains a removable dry contact reed switch pulse output and does not require power.
Features & Benefits
| Specifications | Value |
|---|---|
| Max Temperature | 105˚ F (40˚ C) |
| Max Pressure | 232 psi |
| Body Materials | Cast iron, Epoxy coated |
| Internals Materials | Eng.thermoplastic & Tungsten Shaft |
| Drive Magnet Materials | Alnico |
| Accuracy (+/- of reading - above Transition Qt) | 2% |
| Technical Data | Conforms to ISO 4064 Class B Std. |
| Sensor | Reed switch | Totalizer only |
|---|---|---|
| Maximum Current | 20 mA | n/a |
| Maximum Voltage | 24 Vdc or Vac | n/a |
| Cable Length | 12’ (4m) std | n/a |
| Max cable run | 2000' | n/a |
Additional Notes
Main Technical Data
| Nominal Diameter | Unit | DN | 800 - 8” |
|---|---|---|---|
| Maximum flow rate | US gpm | Qmax | 2200 |
| Nominal flow rate | US gpm | Qn | 1100 |
| Transition flow rate | US gpm | Qt | 220 |
| Minimum flow rate | US gpm | Qmin | 33 |
| Minimum reading | US gallon | 10 | |
| Minimum graduation | US gallon | 10 | |
| Pressure Drop @ Max Flow | 1.5 psi |
Exploded view
