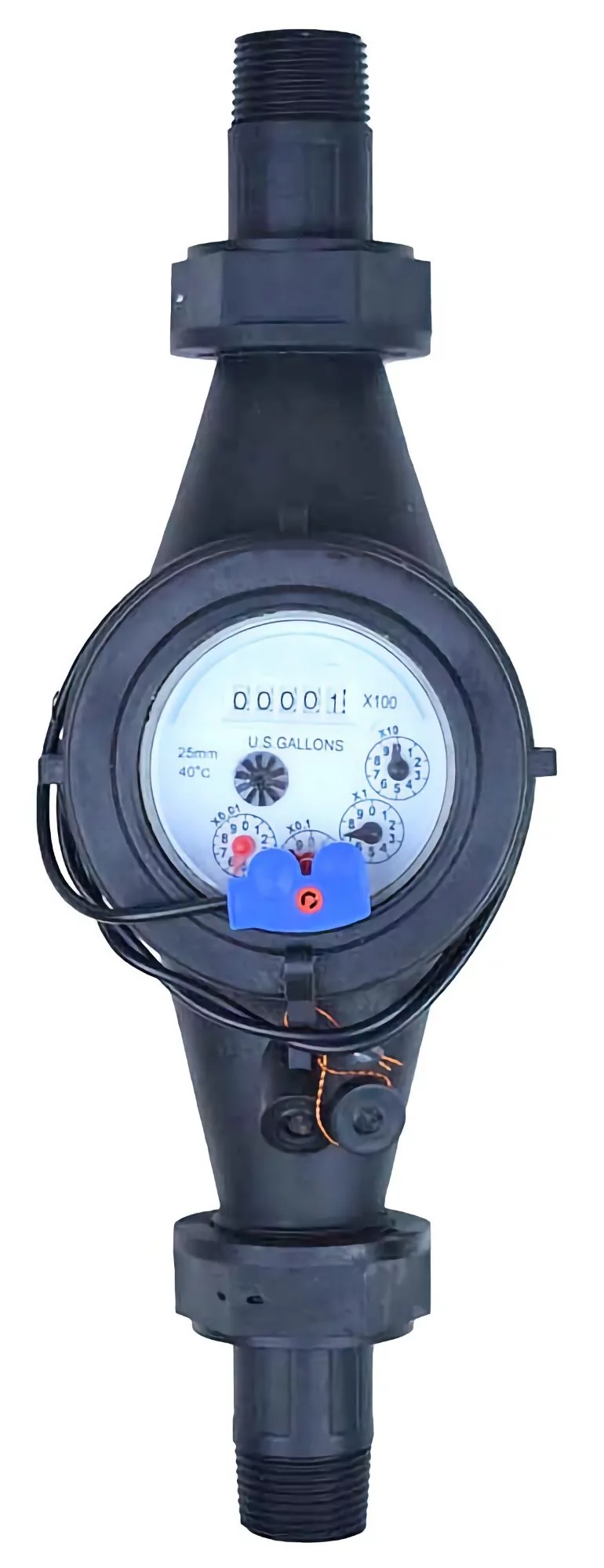

ACS Series Multi-Jet Cold Water Meters Plastic Body
ACS Series water meters use the widely accepted multi-jet principle, as a gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.
Features & Benefits
| Specifications | Value |
|---|---|
| Max Temperature | 105 F (40 C) |
| Max Operating Pressure | 150 psi |
| Body Materials | FRP-Reinforced polyamide |
| Couplings (std) Materials | Brass couplings |
| Couplings (opt) Materials | Lead Free EcoBrass |
| Internals Materials | Engineered thermoplastic |
| Magnet Materials | Alnico |
| Accuracy (+/- % of reading) | 1.50% |
| Sensor | Totalizer only | Reed Switch |
|---|---|---|
| Maximum Current | - | 20 mA |
| Maximum Voltage | - | 24 Vdc or Vac |
| Cable Length | - | 12' (4m) std |
| Max cable run | - | 2000' |
Additional Notes
Main Technical Data
| Nominal Diameter | Unit | DN | 075 - 3/4” |
|---|---|---|---|
| Maximum flow rate | US gpm | Qmax | 20 |
| Nominal flow rate | US gpm | Qn | 10 |
| Transition flow rate | US gpm | Qt | 1 |
| Minimum flow rate | US gpm | Qmin | 0.25 |
| Minimum reading | US gallon | 0.01 | |
| Minimum graduation | US gallon | 0.005 |
Exploded view
