Headline

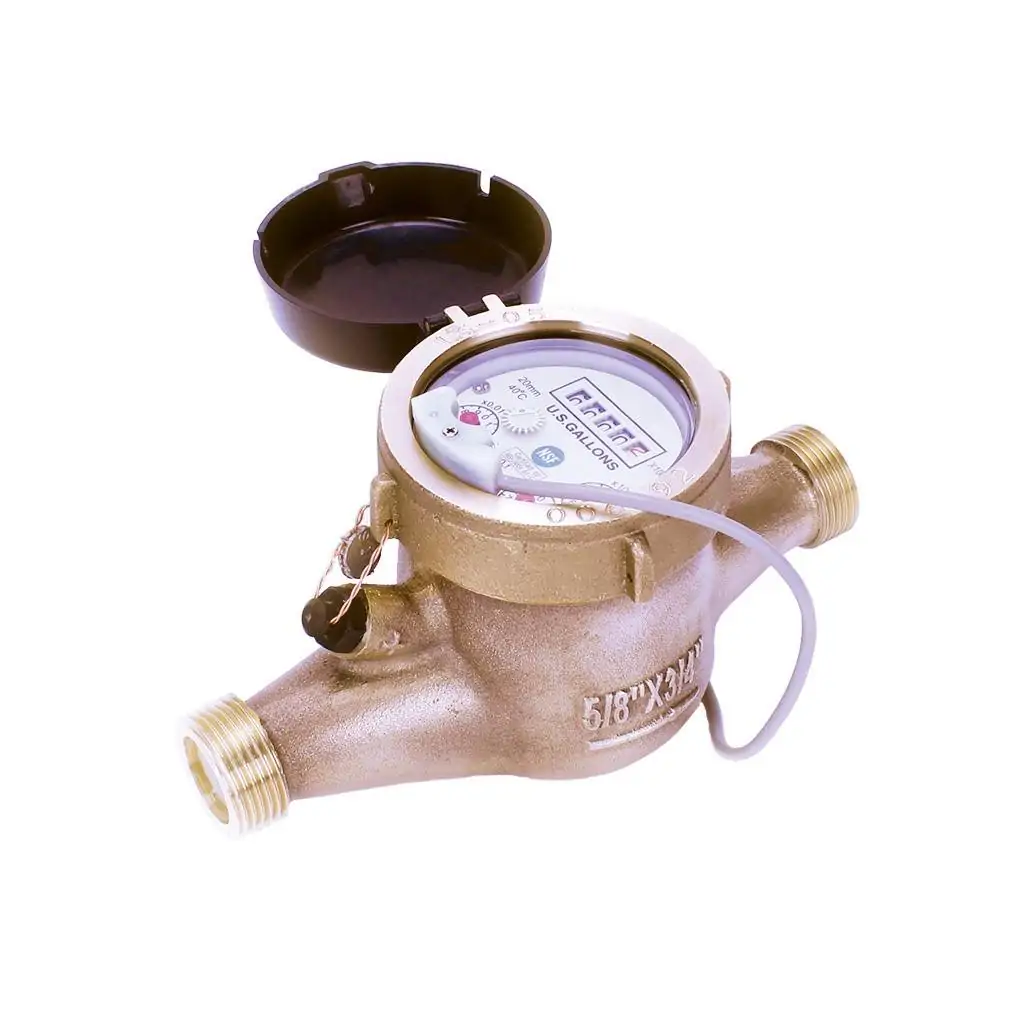

GLF Series NSF61/ANSI372 Certified - Lead-Free Multi-Jet Water Meters
GLF Series water meters use the widely accepted multi-jet principle, as a gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.
Features & Benefits
Specifications | Value |
---|---|
Max Temperature | 105˚ F (40˚ C) |
Operating Pressure | 150 psi |
Body/cplgs Materials | EcoBrass |
Internals Materials | Engineered thermoplastic |
Magnet Materials | Alnico |
Accuracy (+/- % of reading) | 1.5 |
Certification | Meters comply with NSF/ANSI61 AnnexG, NSF/ANSI372, and conforms with lead content requirements for “lead-free”plumbing as defined by the U.S. Safe Drinking Water Act effective Jan. 1, 2014 |
Sensor | Reed switch |
Maximum Current | 20 mA |
Maximum Voltage | 24 Vdc or Vac |
Cable Length | 12’ (4m) std |
Max cable run | 2000' |
Additional Notes
Main Technical Data
Nominal Diameter | Unit | DN | 075 - 5/8”x3/4 |
---|---|---|---|
Maximum flow rate | US gpm | Qmax | 20 |
Nominal flow rate | US gpm | Qn | 10 |
Transition flow rate | US gpm | Qt | 1 |
Minimum flow rate | US gpm | Qmin | 0.25 |
Minimum reading | US gallon | 0.005 |
Exploded view
